Portable vs Centralized Welding Fume Extraction Systems
Introduction
Welding operations across manufacturing environments generate airborne contaminants that must be effectively controlled to maintain safe working conditions. These contaminants include fine metal particulates and gases that can remain suspended in the air if not captured at the source. In fabrication shops and production facilities, improper control of welding fumes can lead to poor air quality, reduced worker productivity, and potential regulatory non-compliance.

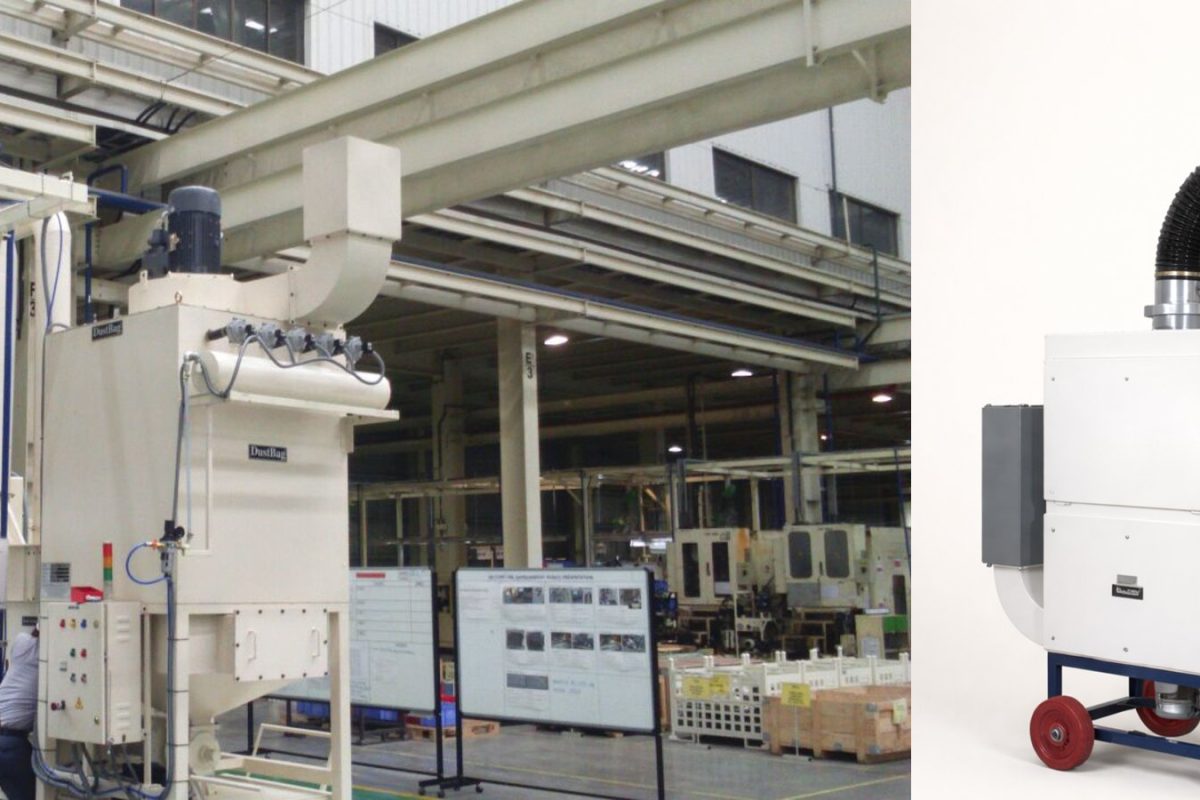

Selecting the right welding ventilation system is therefore a critical engineering decision. Among the most commonly used solutions are the portable welding fume extractor and the centralized welding fume extraction system. Each system serves a specific purpose depending on the scale of operations, layout of the facility, and welding intensity.
With over 30 years of experience in industrial air pollution control, Powertech has worked with both small-scale fabrication units and large manufacturing plants, where the choice between mobile and centralized systems directly impacts performance and efficiency. This article provides a detailed technical comparison of these systems to help determine the most suitable solution.
Key Takeaways
- A portable welding fume extractor is ideal for flexible, low-to-medium intensity welding applications.
- A centralized welding fume extraction system is better suited for large facilities with multiple welding stations.
- System selection depends on airflow requirements, workspace layout, and production scale.
- Source capture efficiency is significantly influenced by system design and positioning.
The Problem: Mismatch Between System Type and Application
Many manufacturing facilities face challenges in controlling welding fumes due to improper system selection. Using a system that does not match operational requirements leads to ineffective fume capture.
Causes
- Selecting portable units for high-load applications
- Installing centralized systems without proper duct design
- Inadequate airflow distribution
- Poor positioning of extraction points
- Lack of scalability planning
Workplace Impact
- Uneven air quality across the shop floor
- Increased smoke accumulation in certain zones
- Reduced visibility during welding operations
- Higher maintenance due to particulate buildup
Safety Risks
Welding fumes contain hazardous substances that pose health risks when inhaled over time.
According to the Occupational Safety and Health Administration (OSHA), welding fumes may include toxic metals such as manganese and chromium, which can affect respiratory and neurological health.
The World Health Organization (WHO) also notes that prolonged exposure to airborne particulate matter can lead to chronic respiratory conditions and reduced lung function.
These risks emphasize the importance of selecting an appropriate welding ventilation system.
Technical Explanation: How Each System Works

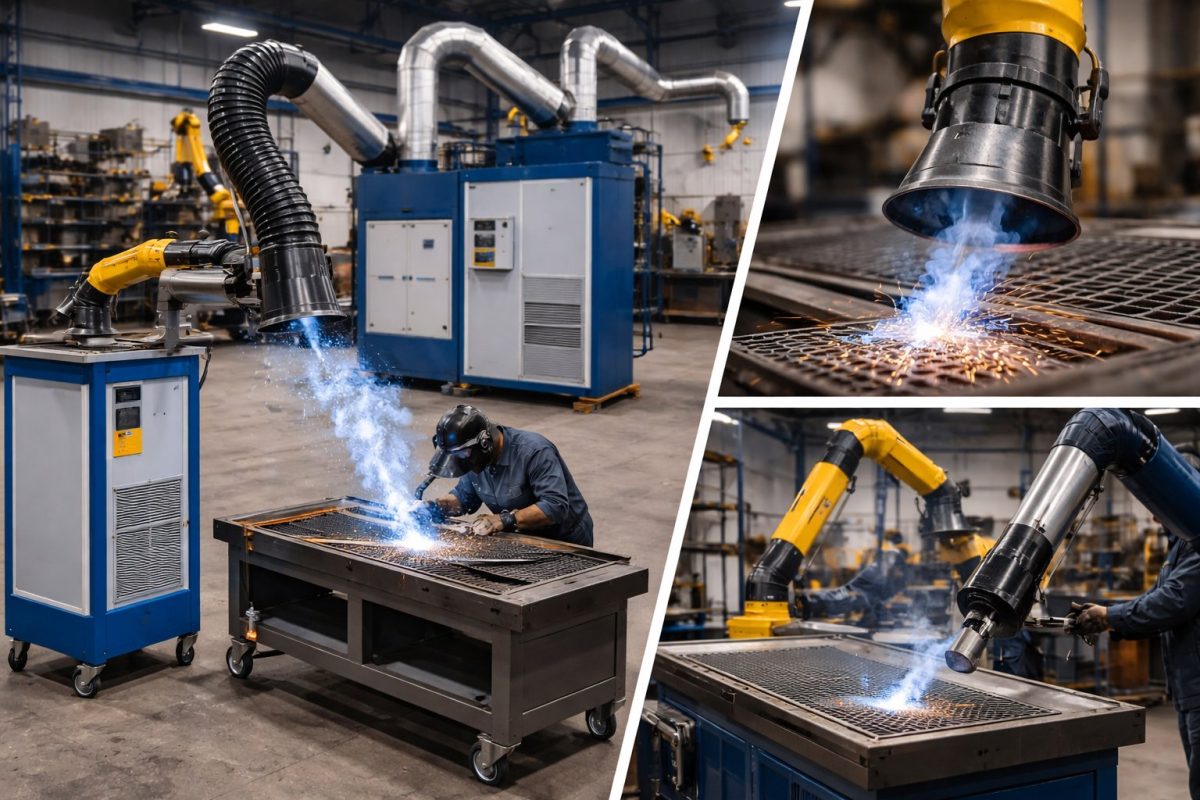

Portable Welding Fume Extractor
A portable welding fume extractor is a self-contained unit designed for localized fume capture.
Working Principle
- A flexible extraction arm is positioned close to the welding arc
- A built-in fan creates negative pressure
- Fumes are drawn into the unit
- Filtration systems remove particulate matter
- Clean air is recirculated or discharged
Key Characteristics
- Mobile and easy to reposition
- Integrated filtration system
- Suitable for intermittent welding operations
Centralized Welding Fume Extraction System
A centralized welding fume extraction system is designed to serve multiple welding stations through a ducting network.
Working Principle
- Extraction hoods capture fumes at each welding station
- Ducting transports contaminated air to a central unit
- High-capacity filters remove particulate matter
- Clean air is discharged or recirculated
Key Characteristics
- High airflow capacity
- Supports multiple stations simultaneously
- Requires engineered duct design
Technical Comparison Table
|
Parameter |
Portable Welding Fume Extractor |
Centralized Welding Fume Extraction System |
|
Mobility |
High |
Fixed |
|
Airflow Capacity |
Low to Medium |
High |
|
Installation Cost |
Low |
High |
|
Scalability |
Limited |
High |
|
Suitable for Multiple Stations |
No |
Yes |
|
Maintenance |
Individual units |
Centralized maintenance |
|
Ideal Use Case |
Small workshops |
Large industrial facilities |
Practical Industrial Applications
Fabrication Shops
Fabrication shops with varying workpiece sizes and layouts benefit from mobile welding fume extractor units.
- Easy repositioning
- Suitable for job-based work
- Ideal for small to medium operations
Automotive Manufacturing
Automotive plants use centralized welding fume extraction system setups to handle continuous welding operations across multiple stations.
- Consistent air quality
- High-capacity airflow
- Integration with robotic welding
Electronics Manufacturing
Precision welding and soldering applications use compact portable systems for localized extraction without disturbing sensitive processes.
CNC and Equipment Manufacturing
CNC shops often combine both systems:
- Portable units for flexible welding tasks
- Centralized systems for fixed production areas
Expert Insight
Based on installations across fabrication shops and manufacturing plants, Powertech has observed that many facilities either over-invest or under-design their systems.
A common issue is the use of portable units in high-production environments, leading to inadequate fume control. Conversely, centralized systems are sometimes installed without proper airflow balancing, resulting in uneven performance.
From an engineering standpoint:
- Portable systems are best for flexibility
- Centralized systems are best for consistency
- Hybrid setups often deliver the most effective results
In several projects handled over three decades, combining localized extraction with centralized filtration has significantly improved air quality while optimizing energy usage.
Frequently Asked Questions
A. Portable systems are mobile and designed for single-station use, while centralized systems connect multiple stations to a single filtration unit.
A. A portable welding fume extractor is generally more suitable due to its flexibility and lower cost.
A. Yes, hybrid systems combining portable and centralized solutions are commonly used in complex manufacturing environments.
A. Key factors include:
– Number of welding stations
– Airflow requirements
– Workspace layout
– Type of welding process
A. Centralized systems are more efficient for large-scale operations, while portable systems are effective for localized applications.
Conclusion
Both portable welding fume extractor units and centralized welding fume extraction system setups play an important role in maintaining safe industrial environments. The choice between the two depends on operational scale, layout, and specific application requirements.
A well-designed welding ventilation system ensures effective fume capture, protects worker health, and enhances overall productivity. By aligning system selection with actual operational needs, industries can achieve optimal performance and long-term efficiency.
With extensive experience in designing customized air pollution control systems, Powertech continues to emphasize application-specific engineering as the key to effective welding fume management.
