Activated Carbon Filtration in Soldering Fume Extractors

Introduction

Soldering operations in electronics manufacturing generate more than just visible smoke. When flux compounds are heated during soldering, they release volatile organic compounds (VOCs), resin vapors, odors, and fine airborne contaminants that can accumulate rapidly in enclosed workspaces. While particulate filters capture smoke particles, gaseous contaminants require a different filtration approach.

An activated carbon soldering fume extractor is specifically designed to remove gases, odors, and VOCs generated during soldering operations. Activated carbon filtration plays a critical role in modern soldering smoke filtration systems because it adsorbs contaminants that traditional particulate filters cannot capture effectively.

In electronics manufacturing environments where operators work in close proximity to soldering stations for extended durations, properly engineered electronics fume filters with activated carbon stages significantly improve indoor air quality and operator comfort.

With over 30 years of experience in industrial air pollution control, Powertech has implemented customized carbon filter soldering fumes solutions for electronics assembly lines, PCB manufacturing facilities, and precision soldering environments.

Key Takeaways

  1. Activated carbon filtration removes VOCs, odors, and flux vapors from soldering fumes.
  2. HEPA filters alone cannot effectively remove gaseous contaminants.
  3. Multi-stage filtration systems provide the best soldering smoke filtration performance.
  4. Proper airflow and filter maintenance are critical for filtration efficiency.

The Problem: Gaseous Contaminants in Soldering Fumes

Many soldering ventilation systems focus only on particulate filtration while ignoring gases and odors.

Causes

  1. Vaporization of flux compounds during soldering
  2. Release of VOCs and resin vapors
  3. Inadequate gas-phase filtration
  4. Overloaded or saturated carbon filters

Workplace Impact

  1. Persistent odors in electronics workspaces
  2. Reduced operator comfort
  3. Eye and throat irritation
  4. Poor indoor air quality

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), soldering operations may release airborne contaminants that require effective ventilation and filtration.

The National Institute for Occupational Safety and Health (NIOSH) recommends local exhaust ventilation and proper filtration for soldering applications.

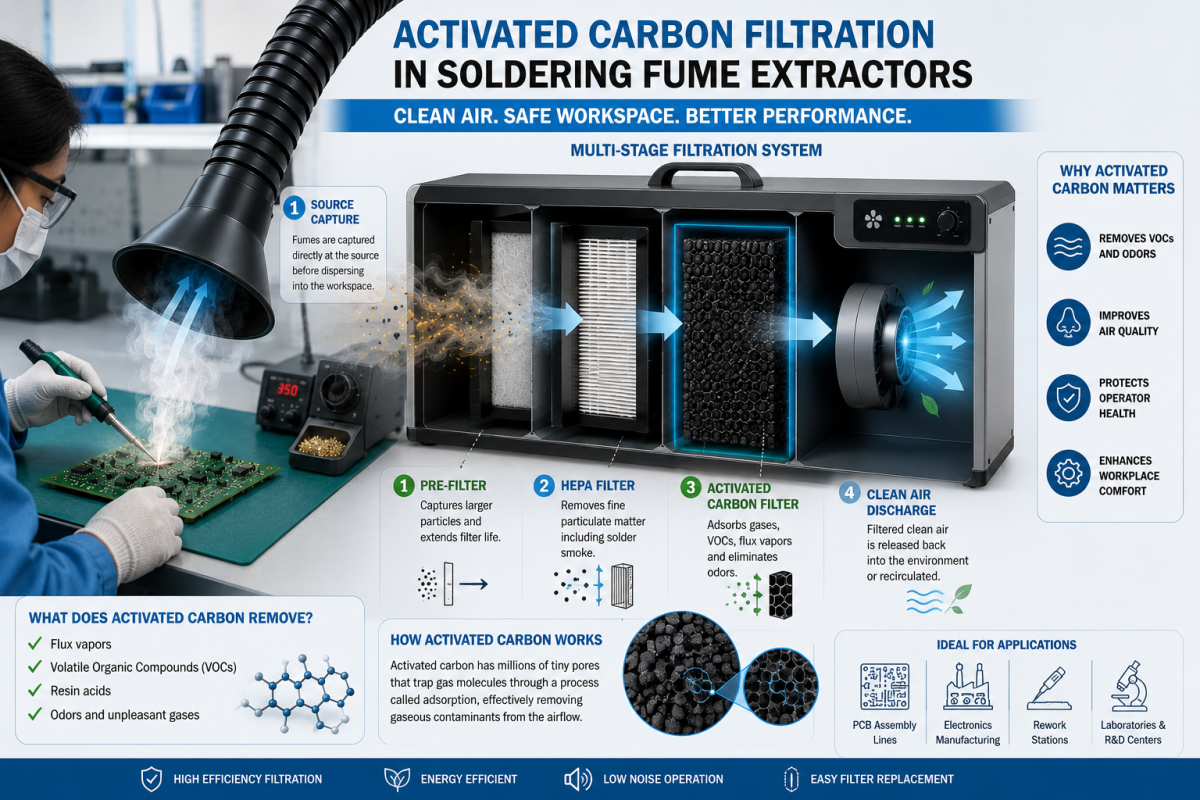

Technical Explanation: How Activated Carbon Filtration Works

Step 1: Source Capture

Fumes are captured directly at the soldering point using a hood or nozzle.

Typical Position

  1. 50–150 mm from source
  2. Aligned with rising fumes

Effective source capture improves overall filtration performance.

Step 2: Particulate Pre-Filtration

Before air reaches the carbon filter:

  1. Larger particles are removed
  2. Fine particulate is captured using HEPA filtration

This prevents premature carbon filter saturation.

Step 3: Activated Carbon Adsorption

The filtered air passes through activated carbon media.

How It Works

  1. Activated carbon contains millions of microscopic pores
  2. VOC molecules adhere to the carbon surface
  3. Odors and gases are adsorbed from the airflow

Activated carbon is highly effective for gas-phase filtration.

Step 4: Clean Air Discharge

After filtration:

  1. Cleaned air is discharged safely
  2. Or recirculated into the workspace if filtration efficiency is sufficient

Filtration Stages in Soldering Fume Extractors

Filtration StageFunctionContaminants Removed
Pre-filterCaptures larger particlesDust and coarse particulate
HEPA FilterRemoves fine particulateSolder smoke particles
Activated Carbon FilterAdsorbs gases and odorsVOCs and flux vapors
Multi-stage SystemCombined protectionMixed contaminants

Practical Industrial Applications

PCB Assembly Lines

  1. Continuous soldering operations
  2. High concentration of flux vapors
  3. Multi-stage filtration systems required

Electronics Manufacturing

  1. Indoor air quality is critical
  2. Odor control is important in enclosed production areas

Rework Stations

  1. Portable extractors with activated carbon filters commonly used

Laboratories and R&D

  1. Small-scale soldering operations
  2. Compact filtration systems preferred

Expert Insight

From Powertech’s experience, one of the most common mistakes in soldering smoke filtration is relying only on HEPA filtration without gas-phase filtration.

Key observations:

  1. HEPA filters remove particulate but not odors or VOCs
  2. Activated carbon performance depends heavily on airflow balance and contact time
  3. Saturated carbon filters lose adsorption efficiency rapidly

In several electronics manufacturing facilities, upgrading to properly designed activated carbon filtration systems significantly improved operator comfort and indoor air quality.

Why is activated carbon used in soldering fume extractors?

It removes gases, odors, and VOCs generated during soldering.

Can HEPA filters remove soldering odors?

No. HEPA filters remove particulate matter but not gaseous contaminants.

How often should activated carbon filters be replaced?

Replacement depends on usage and contaminant load; odor breakthrough is often a key indicator.

Are activated carbon filters necessary for electronics manufacturing?

Yes, especially in enclosed environments with continuous soldering operations.

What contaminants do carbon filters remove?

Flux vapors, VOCs, odors, and certain gaseous contaminants.

Conclusion

An activated carbon soldering fume extractor is essential for effective control of gaseous contaminants generated during soldering operations. While particulate filtration removes visible smoke, activated carbon filtration is critical for controlling odors, VOCs, and flux vapors. By implementing properly engineered soldering smoke filtration systems and high-performance electronics fume filters, industries can significantly improve indoor air quality and operator comfort. With decades of experience in industrial air pollution control, Powertech continues to provide advanced carbon filter soldering fumes solutions for electronics manufacturing environments where clean air and precision work are essential.

Categories Air Pollution Control, Fumekiller, Powertech pollution control, Welding fume extractor Author Philip Thomas

Filtration Technologies Used in Welding Fume Extractors

Introduction

Welding fumes consist of submicron particulate matter, metal oxides, and gaseous byproducts that are difficult to remove without properly engineered filtration systems. While capture at the source is critical, the effectiveness of a welding fume extraction system ultimately depends on how efficiently these contaminants are filtered before the air is discharged or recirculated.

Different applications require different filtration approaches based on particle size, concentration, and process conditions. Selecting the right welding fume filtration technology is essential to ensure compliance with safety standards, protect worker health, and maintain system efficiency.

Modern extraction systems use a combination of industrial fume filters, including cartridge filters welding fumes and advanced methods such as electrostatic fume filtration, to achieve high levels of efficiency.

With over 30 years of experience, Powertech has implemented a range of filtration solutions tailored to industrial environments, ensuring reliable and consistent performance across diverse welding applications.

Key Takeaways

  1. Effective welding fume filtration requires selecting the right technology based on application.
  2. Cartridge filters are widely used for high-efficiency particulate removal.
  3. Electrostatic filtration is effective for fine and oily fumes.
  4. Multi-stage filtration systems provide optimal performance and reliability.

The Problem: Complexity of Welding Fume Filtration

Welding fumes contain a mix of particles with varying sizes and properties, making filtration challenging.

Causes

  1. Fine particulate size (often <1 micron)
  2. High temperature fumes
  3. Variation in welding processes
  4. Presence of oily or sticky particles

Workplace Impact

  1. Ineffective filtration leading to poor air quality
  2. Frequent filter clogging
  3. Increased maintenance costs
  4. Reduced system efficiency

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), welding fumes can contain hazardous substances such as manganese and chromium.

The World Health Organization (WHO) highlights that exposure to fine particulate matter can lead to respiratory and cardiovascular diseases.

Technical Explanation: Types of Filtration Technologies

1. Cartridge Filters

Cartridge filters are the most widely used industrial fume filters for welding applications.

Working Principle

  1. Contaminated air passes through pleated filter media
  2. Particles are captured on the surface
  3. Clean air exits the system

Features

  1. High filtration efficiency (up to 99%)
  2. Suitable for fine particulate
  3. Pulse-jet cleaning for extended life

Applications

  1. Fabrication shops
  2. Automotive manufacturing
  3. General welding operations

2. Electrostatic Fume Filtration

Electrostatic fume filtration is used for capturing extremely fine particles and oily fumes.

Working Principle

  1. Particles are electrically charged
  2. Charged particles are attracted to collector plates
  3. Clean air is released

Features

  1. Effective for submicron particles
  2. Low pressure drop
  3. Suitable for oil mist and smoke

Applications

  1. Welding with oil-coated materials
  2. CNC machining environments
  3. High-precision industries

3. HEPA Filtration

High-Efficiency Particulate Air (HEPA) filters provide an additional level of filtration.

Features

  1. Efficiency up to 99.97% for very fine particles
  2. Used as secondary or final stage
  3. Ensures clean air recirculation

Applications

  1. Critical environments
  2. Indoor air recirculation systems

4. Multi-Stage Filtration Systems

Most industrial systems use a combination of filtration stages.

Typical Configuration

  1. Pre-filter (large particles)
  2. Cartridge filter (fine particles)
  3. HEPA or secondary filter (ultra-fine particles)

This approach improves overall efficiency and filter life.

Filtration Comparison Table

Filtration TypeEfficiencyParticle Size RangePressure DropBest Application
Cartridge FilterUp to 99%Fine particlesMediumGeneral welding
Electrostatic FilterHighSubmicron & oily fumesLowOil mist, smoke
HEPA Filter99.97%Ultra-fine particlesHighClean air recirculation
Multi-Stage SystemVery HighWide rangeVariableIndustrial applications

Practical Industrial Applications

Fabrication Shops

  1. Cartridge-based systems
  2. Moderate fume loads
  3. Flexible filtration requirements

Automotive Manufacturing

  1. Multi-stage filtration systems
  2. High-volume continuous operations
  3. Centralized systems

Maintenance Workshops

  1. Portable systems with cartridge filters
  2. Lower filtration complexity

Heavy Engineering

  1. High dust load
  2. Requires robust filter systems
  3. Frequent cleaning cycles

Expert Insight

From Powertech’s experience, one of the most common mistakes in welding fume filtration is selecting a filtration system based solely on efficiency ratings without considering operating conditions.

Key observations:

  1. High-efficiency filters can fail quickly if pre-filtration is inadequate
  2. Electrostatic systems perform best in specific applications, not all environments
  3. Multi-stage systems offer the best balance between efficiency and durability

In several installations, optimizing filter configuration has significantly reduced maintenance frequency and improved overall system performance.

What is the best filtration method for welding fumes?

Cartridge filters are widely used, but multi-stage systems provide the best overall performance.

When should electrostatic filtration be used?

For fine, oily, or sticky fumes where traditional filters may clog quickly.

Do welding fume extractors require HEPA filters?

HEPA filters are used when very high filtration efficiency or air recirculation is required.

How often should filters be replaced?

Depends on usage and dust load; monitoring pressure drop is the best method.

Can one filter type handle all applications?

No, filtration systems must be selected based on specific process requirements.

Conclusion

Effective welding fume filtration is essential for ensuring clean air, worker safety, and system efficiency. Different filtration technologies—such as cartridge filters, electrostatic fume filtration, and multi-stage systems—offer unique advantages depending on the application. A well-designed system combines appropriate filtration technologies with proper airflow and duct design to deliver optimal performance. With decades of experience in industrial fume filters, Powertech continues to emphasize tailored filtration solutions that meet the specific needs of industrial environments, ensuring reliable and long-term air pollution control.

Categories Air Pollution Control, Fumekiller, Powertech pollution control, Welding fume extractor Author Philip Thomas

Capture Velocity Requirements for Welding Fume Extraction

Introduction

Effective welding fume control depends fundamentally on the ability to capture contaminants at the point of generation. In welding operations, fumes are produced at high temperatures and disperse rapidly into the surrounding air. If not captured immediately, they spread across the workspace, reducing air quality and increasing operator exposure.

The key parameter that determines whether fumes are successfully captured is capture velocity welding fumes. Capture velocity defines the air speed required at the source to overcome the momentum of rising fumes and draw them into the extraction system.

In industrial environments, improper understanding of welding ventilation design often leads to inadequate airflow, resulting in poor system performance. A well-engineered approach to fume extraction airflow requirements ensures that contaminants are effectively removed before dispersion.

With over 30 years of experience, Powertech has designed industrial welding ventilation systems where optimizing capture velocity has significantly improved air quality and system efficiency across fabrication and manufacturing facilities.

Key Takeaways

  1. Capture velocity welding fumes is critical for effective source capture.
  2. Incorrect capture velocity leads to poor fume extraction even with high airflow.
  3. Proper welding ventilation design must account for hood distance and airflow direction.
  4. Optimizing capture velocity improves both safety and system efficiency.

The Problem: Inadequate Capture Velocity

Many welding fume extraction systems fail not due to lack of airflow, but due to insufficient capture velocity at the source.

Causes

  1. Extraction hood positioned too far from welding arc
  2. Low airflow at the hood opening
  3. Cross drafts interfering with airflow
  4. Incorrect hood design
  5. Poor system balancing

Workplace Impact

  1. Visible smoke escaping into the workspace
  2. Reduced visibility during welding
  3. Increased contamination of equipment
  4. Inefficient system performance

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), inadequate ventilation can lead to exposure to hazardous welding fumes affecting respiratory health.

The National Institute for Occupational Safety and Health (NIOSH) emphasizes that proper ventilation design is essential to control airborne contaminants effectively.

Technical Explanation: Understanding Capture Velocity

Capture velocity is the air velocity at any point in front of the hood required to capture contaminants.

Key Relationship

V = Q / A

Where:

  1. V = Capture velocity (m/s)
  2. Q = Airflow rate (m³/s)
  3. A = Hood area (m²)

Factors Affecting Capture Velocity

1. Distance from Source

Capture velocity decreases rapidly with distance.

  1. 150 mm → effective capture
  2. 300 mm → significant reduction

The required airflow is directly related to the square of the distance of the hood from the source.

2. Hood Design

Different hood types affect airflow patterns.

  1. Flanged hoods improve efficiency
  2. Plain openings require higher airflow
  3. Enclosures provide best performance

3. Airflow Rate

Higher airflow increases capture velocity, but only within practical limits.

  1. Excess airflow increases energy cost
  2. Poor positioning cannot be compensated by airflow

4. Cross Drafts

Air movement in the workspace can disrupt capture.

  1. Fans
  2. Open doors
  3. HVAC systems

👉 These reduce effective capture velocity.

Recommended Capture Velocity Values

Welding ApplicationCapture Velocity (m/s)Remarks
Light welding (TIG)0.5 – 0.75Low fume generation
Medium welding (MIG)0.75 – 1.0Standard applications
Heavy welding (Arc)1.0 – 1.5High fume generation
Robotic welding1.0 – 1.5Continuous operation
Enclosed systems0.5 – 0.75Controlled environment

Practical Industrial Applications

Fabrication Shops

  1. Flexible extraction arms
  2. Variable capture requirements
  3. Importance of operator positioning

Automotive Manufacturing

  1. Robotic welding cells
  2. Enclosed extraction systems
  3. Consistent airflow requirements

Maintenance Workshops

  1. Portable extraction systems
  2. High dependency on correct positioning

Heavy Engineering

  1. High fume generation
  2. Requires higher capture velocity

Expert Insight

From Powertech’s experience, one of the most common misconceptions is that increasing airflow automatically improves fume capture.

In reality:

  1. Capture velocity at the source is more important than total airflow
  2. Poor hood placement cannot be corrected by increasing system capacity
  3. Optimized design reduces energy consumption while improving performance

In several installations, improving capture velocity through better positioning and hood design has increased efficiency without increasing airflow.

What is capture velocity in welding fumes?

It is the air speed required at the source to capture welding fumes before they disperse.

What is the ideal capture velocity for welding?

Typically between 0.5 to 1.5 m/s depending on the welding process.

Does increasing airflow improve capture velocity?

Yes, but only if the hood is properly positioned.

Why does capture velocity decrease with distance?

Because air velocity dissipates rapidly as it moves away from the hood opening.

Can capture velocity be improved without increasing airflow?

Yes, by reducing hood distance and improving hood design.

Conclusion

Capture velocity is a critical parameter in designing effective welding fume extraction systems. Without sufficient capture velocity welding fumes, even well-designed systems fail to control contaminants effectively. A proper welding ventilation design must consider airflow, hood positioning, and environmental conditions to meet fume extraction airflow requirements. By optimizing capture velocity, industries can achieve better air quality, improved safety, and more efficient industrial welding ventilation systems. With decades of experience, Powertech continues to emphasize engineering-driven design to ensure reliable and effective welding fume extraction solutions.

Categories Air Pollution Control, Fumekiller, Powertech pollution control, Welding fume extractor Author Philip Thomas

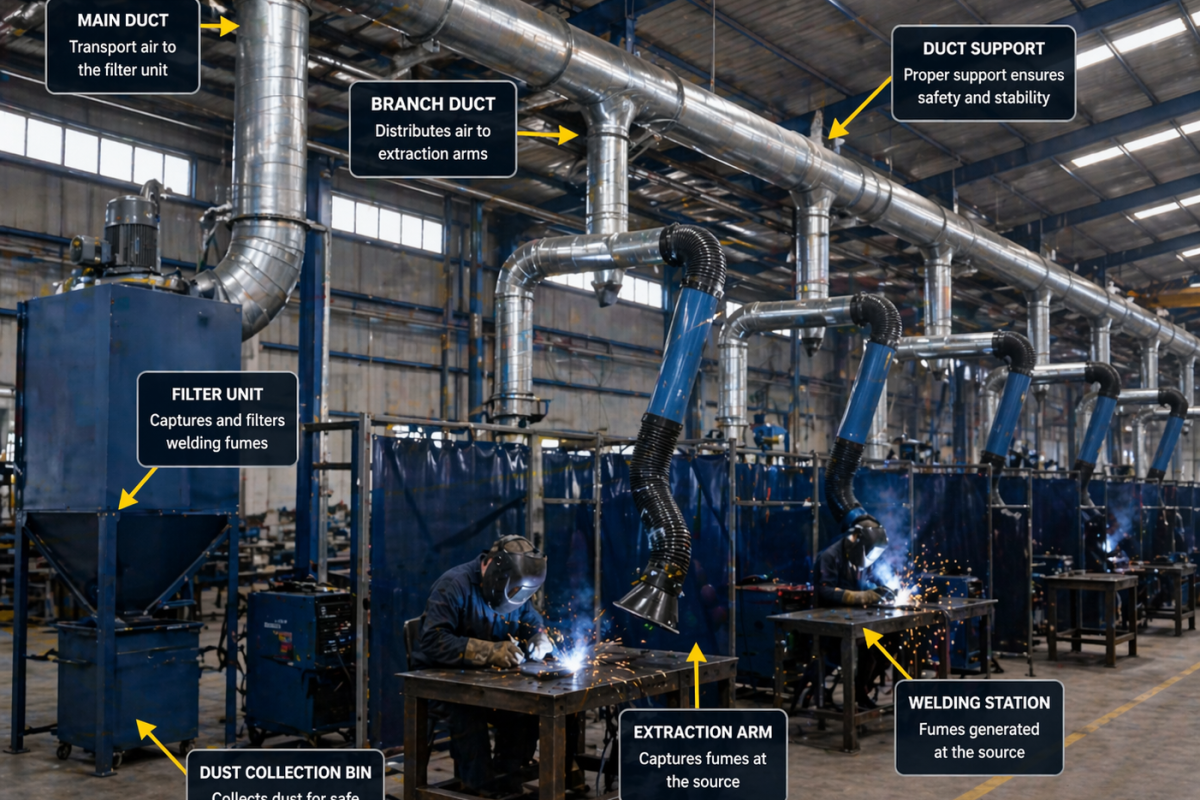

Duct Design for Welding Fume Extraction Systems

Introduction

In welding fume control, the extraction unit often gets the most attention—but in practice, system performance is governed just as much by the duct network that connects capture points to the collector. Poorly designed ducting leads to pressure losses, uneven airflow distribution, dust settling, and ultimately ineffective fume capture at the source.

A robust welding fume extraction duct design ensures that the airflow calculated at the hood actually reaches the filtration unit with minimal losses. This requires careful consideration of duct velocity, layout geometry, branch balancing, and material selection. In many workshops, suboptimal industrial ventilation duct design is the root cause behind persistent ventilation issues, even when high-capacity collectors are installed.

With over three decades of field experience, Powertech has optimized fume extraction system layout across fabrication shops, automotive plants, and heavy engineering facilities—where correcting duct design alone has significantly improved system efficiency without increasing fan capacity.

Key Takeaways

  1. Effective welding fume extraction duct design minimizes pressure loss and maintains airflow to all stations.
  2. Proper duct velocity prevents particulate settling and blockages.
  3. Balanced branching is critical for uniform extraction across multiple points.
  4. Layout simplicity (fewer bends, shorter runs) improves overall welding exhaust system design performance.

The Problem: Inefficient Duct Networks

Many ventilation systems underperform due to poor duct design rather than insufficient airflow.

Causes

  1. Excessive bends and long duct runs
  2. Incorrect duct diameter selection
  3. Poor airflow balancing across branches
  4. Low duct velocity causing dust settlement
  5. Leakage due to poor fabrication or joints

Workplace Impact

  1. Uneven fume extraction across stations
  2. Visible smoke in certain areas
  3. Frequent duct clogging
  4. Increased maintenance downtime

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), inadequate ventilation can expose workers to hazardous airborne contaminants.

The American Conference of Governmental Industrial Hygienists (ACGIH) recommends proper duct design practices to ensure effective contaminant transport and control.

Technical Explanation: Key Principles of Duct Design

Step 1: Maintain Proper Duct Velocity

Duct velocity must be high enough to keep particles suspended.

Recommended range:

  1. 10 – 15 m/s for welding fumes

Lower velocity leads to dust settling and clogging.

Step 2: Select Correct Duct Diameter

Duct size directly affects airflow and velocity.

Q = A × V

Where:

  1. Q = Airflow (m³/s)
  2. A = Cross-sectional area (m²)
  3. V = Velocity (m/s)

Larger ducts reduce velocity; smaller ducts increase pressure loss.

Step 3: Minimize Pressure Losses

Pressure loss occurs due to:

  1. Friction in straight ducts
  2. Bends and fittings
  3. Entry and exit losses

Best practices:

  1. Use smooth interior ducts
  2. Minimize bends
  3. Use long-radius elbows

Step 4: Optimize Duct Layout

A good fume extraction system layout should:

  1. Use the shortest possible duct routes
  2. Avoid unnecessary branches
  3. Maintain gradual transitions

Simple layouts perform better than complex ones.

Step 5: Balance Airflow Across Branches

In multi-point systems:

  1. Ensure equal airflow distribution
  2. Use dampers for balancing
  3. Avoid overloading one branch

Poor balancing leads to uneven extraction.

Recommended Design Parameters

Parameter Recommended Range Remarks
Duct velocity 10 – 15 m/s Prevents particle settling
Static pressure 800 – 2000 Pa Depends on system size
Bend radius ≥ 2 × duct diameter Reduces pressure loss
Branch angle ≤ 45° Improves airflow distribution
Leakage tolerance <5% Ensures efficiency

Practical Industrial Applications

Fabrication Shops

  1. Flexible layouts
  2. Multiple extraction arms
  3. Need for adaptable duct routing

Automotive Manufacturing

  1. Large centralized systems
  2. Long duct runs
  3. Requires precise balancing

Maintenance Workshops

  1. Smaller duct systems
  2. Focus on simplicity and flexibility

Heavy Engineering

  1. High particulate load
  2. Requires high-velocity ducting

Expert Insight

From Powertech’s field experience, one of the most overlooked aspects of welding exhaust system design is duct layout simplicity.

In many installations, improving duct routing—reducing bends and optimizing branch connections—has resulted in significant performance gains without increasing fan capacity.

Key practical lessons:

  1. Airflow efficiency is lost more in ducts than in collectors
  2. Balanced systems outperform oversized systems
  3. Good duct design reduces both energy consumption and maintenance
What is the ideal duct velocity for welding fume extraction?

Typically between 10–15 m/s to prevent particle settling.

Why is duct design important in welding ventilation?

Because it ensures that airflow reaches all extraction points efficiently without losses.

Can poor duct design reduce system performance?

Yes, it can lead to pressure losses, uneven airflow, and ineffective fume capture.

How can duct pressure loss be minimized?

By reducing bends, using smooth ducts, and optimizing layout design.

What is the role of dampers in duct systems?

Dampers help balance airflow across multiple branches in the system.

Conclusion

Duct design is a critical component of any welding fume extraction system. Even the most advanced extraction units cannot perform effectively without a well-engineered duct network. A proper welding fume extraction duct design ensures efficient airflow transport, minimizes pressure losses, and maintains consistent extraction performance across all stations. By applying sound industrial ventilation duct design principles and optimizing fume extraction system layout, industries can significantly improve system efficiency and reliability. With decades of experience, Powertech continues to emphasize engineering-driven duct design as a key factor in achieving effective and long-lasting welding exhaust system design solutions.

engineer measuring airflow for welding fume extractor in industrial workshop
Categories Air Pollution Control, Fumekiller, Powertech pollution control, Welding fume extractor Author Philip Thomas

Welding Fume Extractor Airflow Calculation Guide

Introduction

Accurate airflow design is one of the most critical aspects of any welding fume extraction system. Undersized systems fail to capture fumes effectively, while oversized systems lead to unnecessary energy consumption and operational costs. In industrial workshops, improper airflow design is one of the leading causes of poor fume control performance.

The key to an efficient system lies in understanding welding fume extractor airflow calculation, which depends on factors such as capture velocity, hood design, and distance from the source. Without proper calculation, even high-quality systems may fail to deliver the required performance.

A well-engineered approach to welding ventilation airflow ensures that fumes are captured at the source before they disperse into the workspace. With decades of experience, Powertech has designed systems where precise fume extraction airflow design has significantly improved air quality and system efficiency across fabrication and manufacturing environments.

Key Takeaways

  • Accurate welding fume extractor airflow calculation is essential for effective fume capture.
  • Capture velocity welding is the most important parameter in determining airflow requirements.
  • Airflow depends on hood design, distance from source, and welding intensity.
  • Proper airflow design improves both safety and energy efficiency.

The Problem: Incorrect Airflow Design

Many workshops face issues due to incorrect airflow calculations during system design.

Causes

  • Lack of understanding of capture velocity requirements
  • Incorrect hood sizing
  • Ignoring distance between hood and welding arc
  • Poor duct design and airflow losses

Workplace Impact

  • Ineffective fume capture
  • Smoke accumulation in work areas
  • Increased operator exposure
  • Reduced system efficiency

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), inadequate ventilation can result in exposure to hazardous welding fumes, affecting respiratory health.

The National Institute for Occupational Safety and Health (NIOSH) emphasizes the importance of proper ventilation design to control airborne contaminants effectively.

Technical Explanation: Airflow Calculation Method

Step 1: Understand Capture Velocity

Capture velocity is the air speed required to draw fumes into the extraction hood.

V = Q / A

Where:

  • V = Capture velocity (m/s)
  • Q = Airflow rate (m³/s)
  • A = Area of hood opening (m²)

Step 2: Determine Hood Area

Calculate the area of the extraction hood opening.

For a circular hood:

A = πr2

Ex: r = 500mm = 0.5m

A = πr2 ≈ 0.79m2

C = 2πr ≈ 3.14m2

For a rectangular hood:

A = L × W

Step 3: Calculate Required Airflow

Rearranging the formula:

Q = V × A

This gives the airflow required for effective fume capture.

Step 4: Adjust for Distance

Airflow requirements increase significantly with distance from the source.

  • At 150 mm → standard airflow
  • At 300 mm → airflow requirement may double

Airflow is directly proportional to the square of the distance of the extraction hood from the fume generation source.

Step 5: Account for System Losses

Include additional airflow to compensate for:

  • Duct losses
  • Filter resistance
  • System inefficiencies

Typical design practice:

  • Add 20–30% safety margin

Example Airflow Calculation

Assume:

  • Hood diameter = 300 mm → radius = 0.15 m
  • Required capture velocity = 1 m/s

Step 1: Area

A = π × (0.15)2 = 0.0707m2

Step 2: Airflow

Q = 1 × 0.0707 = 0.0707 m3/s

Convert to m3/hr:

Q = 0.0707 × 3600 = 254.5 m3/hr

  • Final airflow requirement ≈ 250–300 m3/hr (minimum)
  • After adding losses: 300 – 400 m3/hr per extraction point

Recommended Airflow Parameters

Parameter

Recommended Range

Remarks

Capture velocity

0.5 – 1.5 m/s

Depends on welding type

Airflow per arm

800 – 1500 m³/hr

Industrial standard

Hood distance

150 – 300 mm

Critical for efficiency

Duct velocity

10 – 15 m/s

Prevents dust settling

Safety margin

+20–30%

For system losses

Practical Industrial Applications

Fabrication Shops

  • Flexible extraction arms
  • Variable airflow requirements
  • Need for adaptable systems

Automotive Manufacturing

  • High airflow centralized systems
  • Robotic welding requiring consistent airflow

Maintenance Workshops

  • Portable systems
  • Lower airflow but high positioning dependency

Heavy Engineering

  • High fume loads
  • Requires high-capacity airflow systems

Expert Insight

From Powertech’s experience, the biggest mistake in airflow design is assuming that higher airflow always leads to better performance.

In reality:

  • Poor hood positioning cannot be compensated by increasing airflow
  • Oversized systems waste energy without improving efficiency
  • Proper calculation and design outperform trial-and-error approaches

In several installations, optimizing airflow based on correct capture velocity welding principles has improved system efficiency without increasing system capacity.

Frequently Asked Questions

What is the ideal airflow for a welding fume extractor?

Typically between 800–1500 m³/hr per extraction arm, depending on application.

What is capture velocity in welding ventilation?

It is the air speed required to capture fumes at the source before dispersion.

Does hood size affect airflow requirements?

Yes, larger hood openings require higher airflow to maintain the same capture velocity.

Can airflow be reduced if the hood is closer?

Yes, reducing the distance improves capture efficiency and lowers airflow requirements.

Why is airflow calculation important?

It ensures effective fume capture while optimizing energy consumption.

Conclusion

Accurate welding fume extractor airflow calculation is fundamental to designing effective ventilation systems. Without proper calculation, systems either fail to capture fumes or operate inefficiently.

By understanding welding ventilation airflow, applying correct capture velocity welding principles, and optimizing fume extraction airflow design, industries can achieve efficient fume control and improved air quality.

With decades of experience, Powertech emphasizes engineering-based airflow design to ensure reliable, efficient, and cost-effective welding fume extraction systems.

1 2 3 … 10
