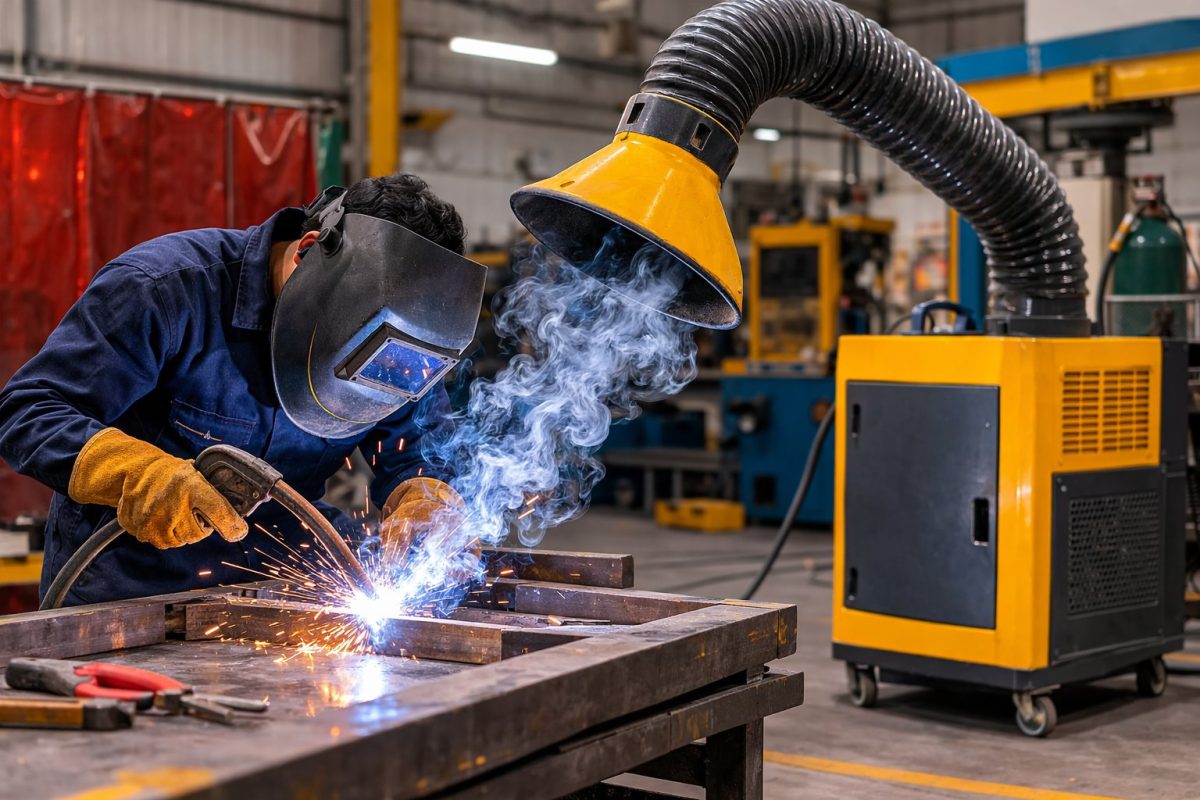

Welding Fume Extraction Systems in Industrial Fabrication Shops

Introduction

Welding is one of the most common fabrication processes used across industries such as automotive manufacturing, heavy engineering, structural fabrication, and equipment manufacturing. While welding enables strong and reliable metal joints, it also produces significant airborne contaminants in the form of welding fumes. These fumes consist of fine metal particles, gases, and chemical compounds that can pose serious health risks to workers if not properly controlled.

In industrial fabrication shops where welding operations are performed continuously, airborne contaminants can quickly accumulate in the work environment. Poor air quality affects worker health, reduces visibility in the workspace, and can lead to regulatory compliance issues. Controlling welding fumes is therefore a critical aspect of industrial safety and workplace engineering.

A properly designed welding fume extraction system helps capture and remove fumes at the source before they disperse into the surrounding environment. By using specialized welding fume extractor units and appropriate industrial welding ventilation, fabrication shops can significantly improve air quality, enhance worker safety, and maintain regulatory compliance. This article explains how welding fume extraction equipment works and how it is applied in industrial fabrication environments.

Key Takeaways

  1. A welding fume extraction system captures hazardous welding fumes at the source, preventing them from spreading into the work environment.
  2. Effective industrial welding ventilation improves worker safety, visibility, and compliance with occupational health regulations.
  3. Proper selection of welding fume extraction equipment depends on airflow requirements, welding process type, and workspace layout.
  4. Localized extraction systems are generally more effective than general ventilation for controlling welding fumes.

The Problem: Welding Fume Exposure in Fabrication Shops

Welding fumes are generated when metals are heated to high temperatures and vaporize. These vapors quickly cool and condense into extremely fine airborne particles that remain suspended in the air.

Without proper extraction, these contaminants accumulate in the workplace.

Causes of Welding Fume Accumulation

  1. Continuous welding operations in enclosed workshops
  2. Inadequate general ventilation systems
  3. Multiple welding stations operating simultaneously
  4. Poor positioning of extraction equipment
  5. High deposition rates from processes such as MIG and flux-cored arc welding

Workplace Impact

Poor welding fume control can negatively affect fabrication shop operations:

  1. Reduced visibility due to smoke accumulation
  2. Uncomfortable working conditions for welders
  3. Contamination of nearby workstations and equipment
  4. Increased maintenance requirements for machinery

Safety Risks

Exposure to welding fumes can lead to several health concerns, including:

  1. Respiratory irritation and lung damage
  2. Metal fume fever caused by inhalation of metal oxide particles
  3. Long-term exposure risks associated with chromium, manganese, and nickel compounds
  4. Potential neurological effects from prolonged exposure to certain metals

For these reasons, many industrial safety standards emphasize the need for effective welding fume extraction systems and engineered ventilation solutions.

How a Welding Fume Extraction System Works

A welding fume extraction system is designed to capture fumes at the point where they are generated and remove them from the worker’s breathing zone.

The system typically consists of several integrated components.

Step 1: Fume Capture

The first stage involves capturing fumes as close to the welding arc as possible.

This is commonly achieved using:

  1. Flexible extraction arms
  2. Extraction hoods
  3. Downdraft tables
  4. On-torch extraction systems

These devices position the airflow source directly near the welding area, preventing fumes from spreading.

Step 2: Air Conveyance

Once fumes are captured, they are transported through ducting or internal channels within the welding fume extractor.

A high-efficiency fan or blower generates airflow that pulls contaminated air through the system.

Step 3: Filtration

The captured air then passes through filtration stages designed to remove particulate matter.

Typical filtration methods include:

  1. Cartridge filters for fine metal particles
  2. HEPA filters or electrostaticfilters for very fine particulate capture
  3. Spark arrestors for safety protection

These filters remove hazardous particles from the air stream.

Step 4: Clean Air Discharge

After filtration, the cleaned air can either:

  1. Be returned to the workspace (recirculation systems)
  2. Be discharged outside through exhaust ducting

Proper filtration ensures that discharged air meets environmental and workplace safety standards.

Typical Airflow Requirements for Welding Fume Extraction

Airflow is one of the most important parameters in designing a welding fume extraction system. Insufficient airflow will allow fumes to escape, while excessive airflow increases energy consumption.

Welding ApplicationTypical Capture MethodRecommended Airflow (m³/hr)Typical Capture Velocity
Manual MIG weldingExtraction arm800 – 12000.5 – 1.0 m/s
TIG weldingLocal hood600 – 9000.4 – 0.8 m/s
Robotic welding cellEnclosed hood1500 – 25000.8 – 1.2 m/s
Grinding and welding stationsDowndraft table2000 – 35001.0 – 1.5 m/s

Actual airflow requirements depend on:

  1. Welding process type
  2. Distance between the arc and extraction hood
  3. Workshop layout
  4. Number of active welding stations

Proper engineering calculations are required to size the welding fume extraction equipment correctly.

Practical Industrial Applications

Automotive Manufacturing

Automotive manufacturing facilities rely heavily on robotic welding systems for assembling vehicle bodies and components.

These facilities often use centralized welding fume extraction systems connected to multiple welding stations. Enclosures and high-capacity filtration units ensure that fumes generated during robotic welding are effectively captured.

Fabrication Shops

Structural fabrication shops typically operate multiple manual welding stations. In such environments, mobile welding fume extractor units with flexible arms are commonly used.

These systems allow welders to reposition the extraction arm depending on the workpiece location, ensuring effective fume capture.

Electronics Manufacturing

Electronics manufacturing processes often involve soldering and micro-welding operations. Although the fume volumes are smaller, the particles produced can still pose health risks.

Compact extraction units are used to capture fumes generated during soldering and precision welding processes.

CNC and Equipment Manufacturing

Many CNC machine shops include welding as part of the manufacturing process for frames, fixtures, and machine components.

Local extraction systems integrated into welding stations prevent fumes from spreading into areas where precision machining operations are conducted.

Expert Insight

In many fabrication shops, welding fumes are controlled using general ventilation or ceiling exhaust fans. However, these approaches often fail to capture fumes before they reach the worker’s breathing zone.

From an engineering perspective, source capture is the most effective strategy. Positioning extraction arms within 200–300 mm of the welding arc significantly improves capture efficiency. Proper maintenance of filters and periodic airflow verification are also essential to ensure long-term performance of the welding fume extraction system.

What is a welding fume extraction system?

A welding fume extraction system is an engineered ventilation system designed to capture and filter fumes generated during welding processes before they disperse into the workplace environment.

Why is local extraction preferred over general ventilation?

Local extraction captures fumes directly at the source, preventing them from spreading into the surrounding workspace. General ventilation dilutes contaminants but does not remove them effectively.

How often should filters in welding fume extraction equipment be replaced?

Filter replacement intervals depend on welding intensity and system design. In most industrial environments, filters are inspected regularly and replaced when pressure drop exceeds recommended limits.

Can a welding fume extractor handle multiple welding stations?

Yes. Larger systems can be designed to serve multiple stations using ducting networks connected to a centralized filtration unit.

Are welding fumes hazardous even in small workshops?

Yes. Even small welding operations can produce harmful metal particles and gases. Proper industrial welding ventilation is important regardless of workshop size.

Conclusion

Welding fumes are an unavoidable by-product of metal fabrication processes, but their impact on workplace safety and air quality can be effectively controlled with proper engineering solutions. A well-designed welding fume extraction system captures fumes at the source, filters hazardous particles, and prevents contamination of the work environment. By implementing appropriate welding fume extraction equipment and maintaining proper industrial welding ventilation, fabrication shops can significantly improve worker safety, operational efficiency, and regulatory compliance. As welding operations continue to expand across manufacturing industries, investing in reliable air pollution control systems remains a critical component of modern industrial facility design.

Categories Air Pollution Control, Fumekiller, Mistkiller, Welding fume extractor Author Philip Thomas

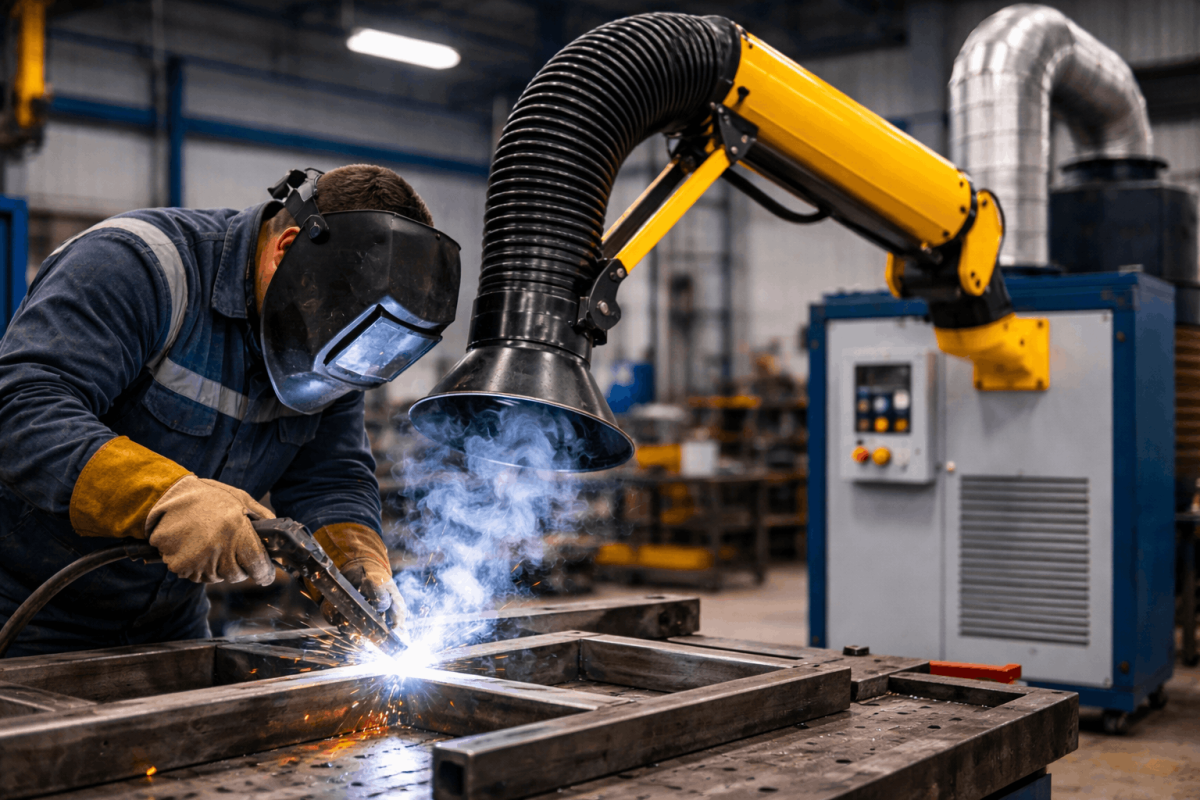

Best Positioning for Welding Fume Extraction Arms

Introduction

Even the most advanced extraction unit will underperform if the capture point is incorrectly positioned. In welding environments, fumes rise rapidly due to thermal buoyancy and disperse with even minor air currents. If the extraction arm is not placed strategically, fumes bypass the hood and enter the operator’s breathing zone.

Effective welding extraction arm positioning is therefore one of the most critical—and most overlooked—factors in system performance. Many cases of poor ventilation are not caused by inadequate equipment, but by incorrect fume extraction hood placement.

A well-positioned arm enables true source capture welding fumes, ensuring contaminants are removed before dispersion. With over 30 years of experience, Powertech has consistently observed that proper positioning alone can significantly improve welding ventilation efficiency without increasing airflow or system capacity.

Key Takeaways

  1. Correct welding extraction arm positioning is essential for effective fume capture.
  2. Source capture is far more effective than general ventilation.
  3. Hood distance and angle directly impact welding ventilation efficiency.
  4. Small positioning changes can significantly improve system performance.

The Problem: Poor Hood Placement

Improper positioning is one of the leading causes of ineffective welding fume extraction.

Causes

  1. Extraction arm placed too far from the arc
  2. Incorrect angle relative to fume rise direction
  3. Obstruction by the operator or workpiece
  4. Lack of operator training
  5. Frequent repositioning without guidelines

Workplace Impact

  1. Visible fumes escaping into the workspace
  2. Reduced visibility during welding
  3. Increased exposure for operators
  4. Inefficient use of extraction systems

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), exposure to welding fumes can lead to respiratory irritation and long-term health risks.

The National Institute for Occupational Safety and Health (NIOSH) emphasizes source capture as the most effective method for controlling airborne contaminants.

Technical Explanation: How to Position Extraction Arms Correctly

Step 1: Maintain Optimal Distance

The hood should be positioned close enough to capture fumes effectively.

  1. Ideal distance: 150 – 300 mm from the welding arc
  2. Closer positioning reduces airflow requirements

Doubling the distance can significantly reduce capture efficiency.

Step 2: Align with Fume Direction

Welding fumes typically rise upward due to heat.

  1. Position hood slightly above the arc
  2. Angle it to intercept the rising plume

Avoid placing the hood below the welding point.

Step 3: Avoid Blocking Airflow

Improper placement can cause fumes to pass through the operator’s breathing zone.

  1. Do not position hood behind the welder
  2. Avoid placing the hood directly between the arc and the operator’s face

The hood should capture fumes before they reach the operator.

Step 4: Maintain Stable Positioning

Flexible arms must be properly adjusted and locked.

  1. Ensure the arm does not drift during operation
  2. Use arms with good positional stability

Step 5: Minimize Cross Draft Effects

External air movement can disrupt capture.

  1. Avoid placing hoods near fans or open doors
  2. Position to counter airflow disturbances

Recommended Positioning Guidelines

ParameterRecommended ValueRemarks
Hood distance150 – 300 mmCritical for capture
Hood angle30° – 60° toward plumeAlign with fume rise
Position relative to operatorIn front of plumeAvoid breathing zone
Height above arcSlightly aboveMatches fume movement
StabilityFixed positionPrevents drift

Practical Industrial Applications

Fabrication Shops

  1. Frequent repositioning required
  2. Operator training is critical
  3. Flexible arms preferred

Automotive Manufacturing

  1. Fixed positioning in robotic cells
  2. Enclosed extraction systems
  3. Consistent placement improves reliability

Maintenance Workshops

  1. Portable systems used
  2. High dependency on operator positioning

Heavy Engineering

  1. Larger workpieces
  2. Requires adjustable and extended arms

Expert Insight

From Powertech’s field experience, incorrect positioning is one of the most common and easiest-to-fix issues in welding ventilation systems.

In many workshops, improving welding extraction arm positioning has resulted in immediate improvements in air quality without any changes to system capacity.

Key practical observations:

  1. Source capture is more effective than increasing airflow
  2. Proper positioning reduces energy consumption
  3. Operator training is as important as system design

In several installations, correcting fume extraction hood placement has improved efficiency by over 25% without additional investment.

What is the ideal position for a welding extraction arm?

The hood should be placed 150–300 mm from the welding arc and aligned with the direction of rising fumes.

Why is source capture important in welding?

It prevents fumes from spreading into the workspace and reduces operator exposure.

Can poor positioning reduce system efficiency?

Yes, incorrect positioning can significantly reduce capture efficiency even with high airflow.

Should the hood be placed above or below the welding arc?

It should be placed slightly above the arc to capture rising fumes.

How can operators improve positioning?

By keeping the hood close to the source, aligning it with fume direction, and avoiding airflow obstruction.

Conclusion

Proper welding extraction arm positioning is a fundamental requirement for effective fume control. Without correct placement, even well-designed systems fail to capture fumes efficiently. By focusing on source capture welding fumes, optimizing fume extraction hood placement, and improving welding ventilation efficiency, industries can achieve safer and more efficient working environments. With decades of experience, Powertech emphasizes that correct positioning—combined with sound engineering design—is key to achieving reliable and effective welding fume extraction performance.

local exhaust ventilation welding system capturing fumes at source in industrial workshop
Categories Air Pollution Control, Powertech pollution control, Welding fume extractor Author poweradmin

Local Exhaust Ventilation Welding Systems for Fume Control

Local Exhaust Ventilation Systems for Welding Applications

Introduction

Welding processes generate a complex mix of airborne contaminants, including metal fumes, gases, and ultrafine particles. These contaminants are produced directly at the welding arc and can quickly disperse into the surrounding workspace if not effectively controlled. In industrial environments where welding is performed continuously, this leads to poor air quality, reduced visibility, and increased exposure risks for workers.

General ventilation systems are often insufficient because they dilute contaminants rather than remove them at the source. This is where local exhaust ventilation welding systems play a critical role. By capturing fumes directly at the point of generation, these systems prevent contaminants from entering the welder’s breathing zone.

A properly engineered welding ventilation system using source capture principles ensures efficient removal of airborne pollutants. With over three decades of experience, Powertech has implemented welding fume extraction system solutions across fabrication shops, automotive plants, and precision manufacturing environments, where effective source capture is essential for maintaining safe and compliant operations.



Key Takeaways

  • Local exhaust ventilation welding captures fumes at the source, making it more effective than general ventilation.
  • Proper hood positioning and airflow design are critical for efficient source capture welding fumes.
  • A well-designed welding ventilation system improves worker safety and regulatory compliance.
  • System performance depends on airflow, capture velocity, and layout optimization.



The Problem: Ineffective Control of Welding Fumes

Welding fumes are generated instantly during metal fusion processes and consist of fine particles that remain suspended in air.

Causes

  • Lack of localized extraction systems
  • Over-reliance on general ventilation
  • Improper placement of extraction hoods
  • Insufficient airflow at the source
  • Multiple welding operations in confined spaces

Workplace Impact

  • Accumulation of visible smoke
  • Reduced visibility in welding areas
  • Contamination of nearby equipment
  • Increased maintenance requirements

Safety Risks

Exposure to welding fumes poses significant health risks.
According to the Occupational Safety and Health Administration (OSHA), welding fumes can contain hazardous metals such as manganese and chromium that may affect the respiratory and nervous systems.

The World Health Organization (WHO) also highlights that prolonged exposure to airborne particulate matter can lead to chronic respiratory diseases and reduced lung function.

These risks underline the importance of implementing local exhaust ventilation welding systems for effective fume control.



Technical Explanation: How Local Exhaust Ventilation Works

A local exhaust ventilation welding system is designed to capture and remove contaminants at or near the source of generation.

Step 1: Fume Capture at Source

Extraction hoods or arms are positioned close to the welding arc (typically within 150–300 mm).

  • Ensures immediate capture of fumes
  • Prevents dispersion into the workspace

Step 2: Airflow Generation

A fan or blower creates negative pressure within the system.

  • Draws contaminated air into the hood
  • Maintains consistent airflow

Step 3: Air Conveyance

Captured fumes are transported through ducts or extraction arms.

  • Smooth duct design minimizes pressure loss
  • Balanced airflow ensures uniform performance

Step 4: Filtration

Air passes through filtration stages:

  • Pre-filters remove larger particles
  • Cartridge filters capture fine particulates
  • Optional HEPA filters for ultrafine particles

Step 5: Clean Air Discharge

Filtered air is either:

  • Recirculated into the workspace
  • Or discharged outside the facility



Key Design Parameters for Local Exhaust Ventilation

Parameter

Recommended Range

Remarks

Capture distance

150 – 300 mm

Closer improves efficiency

Capture velocity

0.5 – 1.5 m/s

Depends on welding process

Airflow rate

800 – 1500 m³/hr per arm

Varies with hood size

Static pressure

800 – 1500 Pa

Depends on duct design

Filter efficiency

Up to 99%

Multi-stage filtration

Proper engineering design ensures that the welding fume extraction system operates efficiently under varying conditions.



Practical Industrial Applications

Automotive Manufacturing

Automotive plants rely heavily on robotic welding systems. Local exhaust ventilation is integrated into enclosures and extraction hoods to ensure continuous fume removal.

Fabrication Shops

Fabrication shops commonly use flexible extraction arms as part of a welding ventilation system.

  • Allows repositioning based on workpiece
  • Ensures effective source capture welding fumes

Electronics Manufacturing

Precision welding and soldering operations require compact extraction systems to capture fine fumes without disrupting sensitive processes.

CNC and Equipment Manufacturing

In CNC environments, localized extraction prevents fumes from contaminating precision machining operations.



Expert Insight

In many industrial installations, the effectiveness of local exhaust ventilation welding systems is compromised not by equipment limitations but by improper positioning and design.

Based on Powertech’s experience across multiple industries, one of the most common issues is placing extraction hoods too far from the welding arc. Even a small increase in distance can significantly reduce capture efficiency.

Key practical recommendations include:

  • Maintain hood distance within 200 mm wherever possible
  • Avoid cross drafts that interfere with airflow
  • Regularly monitor airflow and filter condition

In several installations, optimizing hood placement alone has improved system efficiency without increasing airflow capacity.

Frequently Asked Questions

What is local exhaust ventilation in welding?

It is a system designed to capture welding fumes directly at the source before they disperse into the workplace.

Why is local exhaust ventilation better than general ventilation?

It removes contaminants at the source rather than diluting them, making it significantly more effective.

What affects the performance of a welding ventilation system?

Key factors include:
– Hood positioning
– Airflow rate
– Duct design
– Filter condition

Can local exhaust ventilation be used for multiple welding stations?

Yes, centralized systems can connect multiple extraction points to a single filtration unit.

How close should the extraction hood be to the welding arc?

Typically within 150–300 mm for effective fume capture.

Conclusion

Welding fumes present a significant challenge in industrial environments, particularly where operations are continuous and high-intensity. General ventilation alone cannot provide adequate protection against airborne contaminants.

A properly designed local exhaust ventilation welding system ensures effective capture of fumes at the source, protecting worker health and maintaining air quality. By integrating well-engineered welding ventilation system solutions and optimized welding fume extraction system designs, industries can achieve safer and more efficient operations.

With decades of experience in industrial air pollution control, Powertech continues to emphasize the importance of application-specific engineering and source capture strategies in delivering reliable and effective ventilation solutions.

welding fume extractor capturing fumes at source using extraction arm
Categories Air Pollution Control, Uncategorized, Welding fume extractor Author poweradmin

Welding Fume Extractor: How Source Capture Works in Welding

How Welding Fume Extractors Capture Fumes at the Source

Introduction

Welding operations are a critical part of industrial fabrication, but they generate hazardous fumes composed of fine metal particulates and gases. These fumes, if not effectively controlled, disperse into the work environment and expose workers to harmful contaminants. In fabrication shops where multiple welding stations operate simultaneously, this issue becomes significantly more pronounced.

Traditional ventilation methods often rely on general air dilution, which does not effectively remove contaminants from the welder’s breathing zone. As a result, airborne pollutants remain suspended and continue to pose risks to both workers and equipment.

A welding fume extractor addresses this challenge by capturing fumes directly at the point of generation. This method, known as source capture welding fumes, is far more effective than general ventilation. By using properly designed local exhaust ventilation welding systems and flexible welding extraction arm setups, industries can significantly improve air quality and maintain safer working conditions.

Key Takeaways

  • A welding fume extractor captures fumes directly at the source, preventing dispersion into the workspace.
  • Local exhaust ventilation welding is more effective than general ventilation for controlling welding fumes.
  • Proper positioning of the welding extraction arm is critical for effective fume capture.
  • Source capture systems improve worker safety, visibility, and compliance with industrial safety standards.

The Problem: Ineffective Fume Control in Welding Environments

Welding fumes are generated instantly when metals are heated, vaporized, and condensed into fine airborne particles. Without immediate capture, these particles spread rapidly across the workspace.

Causes of Poor Fume Control

  • Over-reliance on general ventilation systems
  • Incorrect placement of extraction arms
  • Insufficient airflow at the point of welding
  • Multiple welding operations in confined spaces
  • Lack of system maintenance and filter clogging

Workplace Impact

  • Smoke accumulation reducing visibility
  • Worker discomfort due to poor air quality
  • Deposition of metal particles on machinery
  • Reduced efficiency in fabrication processes

Safety Risks

  • Exposure to toxic metals such as manganese and chromium
  • Respiratory illnesses and long-term lung damage
  • Increased risk of occupational health violations
  • Reduced operator alertness in poor air conditions

These challenges highlight the importance of using a welding fume extractor designed specifically for source capture.

How a Welding Fume Extractor Captures Fumes at the Source

A welding fume extractor works by creating localized airflow that pulls contaminants away from the welding arc before they disperse.

Step 1: Positioning the Extraction Arm

The welding extraction arm is placed close to the welding arc, typically within 150–300 mm.

  • This proximity ensures immediate capture
  • Prevents fumes from entering the breathing zone
  • Improves capture efficiency significantly

Step 2: Creating Negative Pressure

The extractor unit generates suction using a high-efficiency fan.

  • Negative pressure draws fumes into the hood
  • Airflow direction is controlled toward the extractor
  • Capture velocity is maintained at required levels

Step 3: Capturing and Conveying Fumes

Once captured, fumes are drawn through the extraction arm into the system.

  • Smooth internal ducting reduces pressure losses
  • Consistent airflow ensures stable performance
  • Multiple arms can connect to a central unit

Step 4: Filtration of Contaminants

The contaminated air passes through filtration stages:

  • Pre-filters capture larger particles
  • Cartridge filters remove fine particulate matter
  • Optional HEPA filters capture ultra-fine particles

Step 5: Clean Air Discharge

After filtration:

  • Clean air is either recirculated into the workspace
  • Or safely exhausted outside the facility

This entire process ensures effective source capture welding fumes and maintains safe air quality levels.

Capture Efficiency and Airflow Guidelines

Proper airflow and capture velocity are critical for the performance of a welding fume extractor.

Parameter Recommended Range Remarks
Capture distance 150 – 300 mm Closer distance improves efficiency
Capture velocity 0.5 – 1.5 m/s Depends on welding intensity
Airflow per arm 800 – 1500 m³/hr Varies with hood size
Filter efficiency Up to 99% With multi-stage filtration
Static pressure 800 – 1500 Pa Depends on duct design

Engineering design must ensure that airflow remains consistent across all extraction points.

Practical Industrial Applications

Automotive Manufacturing

Automotive plants use robotic and manual welding extensively. Fixed extraction hoods and centralized systems ensure continuous fume capture in high-volume production environments.

Fabrication Shops

Fabrication shops rely heavily on flexible welding extraction arm systems.

  • Operators can reposition arms easily
  • Suitable for varying workpiece sizes
  • Ideal for multi-station workshops

Electronics Manufacturing

In electronics manufacturing, micro-welding and soldering produce fine fumes.

Compact welding fume extractor units provide localized extraction without affecting precision work.

CNC and Equipment Manufacturing

Welding operations in CNC shops require localized extraction to prevent contamination of precision machining areas.

Integrated systems ensure clean air without disrupting adjacent processes.

Expert Insight

One of the most common mistakes in industrial setups is placing the extraction arm too far from the welding arc. Even a small increase in distance can drastically reduce capture efficiency.

From a practical engineering standpoint:

  • Keep the extraction hood within 200 mm whenever possible
  • Avoid cross drafts that disrupt airflow
  • Regularly check airflow performance and filter condition

A well-positioned welding fume extractor can achieve significantly higher efficiency without increasing system capacity.

Frequently Asked Questions

Q. What is source capture in welding?

A. Source capture refers to capturing welding fumes directly at the point where they are generated, preventing them from spreading into the workspace.

Q. How does a welding extraction arm work?

A. A welding extraction arm positions the suction inlet close to the welding arc, allowing fumes to be drawn into the extractor system immediately.

Q. Why is local exhaust ventilation important in welding?

A. Local exhaust ventilation welding systems remove contaminants directly from the source, making them more effective than general ventilation methods.

Q. What affects the efficiency of a welding fume extractor?

A. Key factors include:

  • Distance from the welding arc
  • Airflow rate
  • Hood design
  • Filter condition

Q. Can one extractor serve multiple welding stations?

A. Yes, centralized systems can connect multiple extraction arms to a single unit, provided airflow is properly balanced.

Conclusion

Welding fumes pose a significant challenge in industrial environments, particularly in fabrication shops where continuous operations generate high volumes of airborne contaminants. General ventilation alone is not sufficient to control these fumes effectively.

A properly designed welding fume extractor provides an efficient solution by capturing contaminants at the source. Through effective local exhaust ventilation welding systems and correctly positioned welding extraction arm setups, industries can significantly improve air quality and worker safety.

Implementing source capture strategies not only enhances workplace conditions but also ensures compliance with industrial safety standards. As fabrication processes continue to evolve, investing in effective welding fume extraction solutions remains essential for maintaining a safe and efficient industrial environment.

welder using welding fume extraction system in industrial fabrication shop
Categories Air Pollution Control, Fumekiller, Uncategorized, Welding fume extractor Author poweradmin

Welding Fume Extraction System: Industrial Ventilation Guide

Introduction

Welding is one of the most common fabrication processes used across industries such as automotive manufacturing, heavy engineering, structural fabrication, and equipment manufacturing. While welding enables strong and reliable metal joints, it also produces significant airborne contaminants in the form of welding fumes. These fumes consist of fine metal particles, gases, and chemical compounds that can pose serious health risks to workers if not properly controlled.

In industrial fabrication shops where welding operations are performed continuously, airborne contaminants can quickly accumulate in the work environment. Poor air quality affects worker health, reduces visibility in the workspace, and can lead to regulatory compliance issues. Controlling welding fumes is therefore a critical aspect of industrial safety and workplace engineering.

A properly designed welding fume extraction system helps capture and remove fumes at the source before they disperse into the surrounding environment. By using specialized welding fume extractor units and appropriate industrial welding ventilation, fabrication shops can significantly improve air quality, enhance worker safety, and maintain regulatory compliance. This article explains how welding fume extraction equipment works and how it is applied in industrial fabrication environments.



Key Takeaways

  • A welding fume extraction system captures hazardous welding fumes at the source, preventing them from spreading into the work environment.
  • Effective industrial welding ventilation improves worker safety, visibility, and compliance with occupational health regulations.
  • Proper selection of welding fume extraction equipment depends on airflow requirements, welding process type, and workspace layout.
  • Localized extraction systems are generally more effective than general ventilation for controlling welding fumes.

The Problem: Welding Fume Exposure in Fabrication Shops

Welding fumes are generated when metals are heated to high temperatures and vaporize. These vapors quickly cool and condense into extremely fine airborne particles that remain suspended in the air.

Without proper extraction, these contaminants accumulate in the workplace.

Causes of Welding Fume Accumulation

  • Continuous welding operations in enclosed workshops
  • Inadequate general ventilation systems
  • Multiple welding stations operating simultaneously
  • Poor positioning of extraction equipment
  • High deposition rates from processes such as MIG and flux-cored arc welding

Workplace Impact

Poor welding fume control can negatively affect fabrication shop operations:

  • Reduced visibility due to smoke accumulation
  • Uncomfortable working conditions for welders
  • Contamination of nearby workstations and equipment
  • Increased maintenance requirements for machinery

Safety Risks

Exposure to welding fumes can lead to several health concerns, including:

  • Respiratory irritation and lung damage
  • Metal fume fever caused by inhalation of metal oxide particles
  • Long-term exposure risks associated with chromium, manganese, and nickel compounds
  • Potential neurological effects from prolonged exposure to certain metals

For these reasons, many industrial safety standards emphasize the need for effective welding fume extraction systems and engineered ventilation solutions.



How a Welding Fume Extraction System Works

A welding fume extraction system is designed to capture fumes at the point where they are generated and remove them from the worker’s breathing zone.

The system typically consists of several integrated components.

Step 1: Fume Capture

The first stage involves capturing fumes as close to the welding arc as possible.

This is commonly achieved using:

  • Flexible extraction arms
  • Extraction hoods
  • Downdraft tables
  • On-torch extraction systems

These devices position the airflow source directly near the welding area, preventing fumes from spreading.

Step 2: Air Conveyance

Once fumes are captured, they are transported through ducting or internal channels within the welding fume extractor.

A high-efficiency fan or blower generates airflow that pulls contaminated air through the system.

Step 3: Filtration

The captured air then passes through filtration stages designed to remove particulate matter.

Typical filtration methods include:

  • Cartridge filters for fine metal particles
  • HEPA filters or electrostaticfilters for very fine particulate capture
  • Spark arrestors for safety protection

These filters remove hazardous particles from the air stream.

Step 4: Clean Air Discharge

After filtration, the cleaned air can either:

  • Be returned to the workspace (recirculation systems)
  • Be discharged outside through exhaust ducting

Proper filtration ensures that discharged air meets environmental and workplace safety standards.


Typical Airflow Requirements for Welding Fume Extraction

Airflow is one of the most important parameters in designing a welding fume extraction system. Insufficient airflow will allow fumes to escape, while excessive airflow increases energy consumption.

Welding Application

Typical Capture Method

Recommended Airflow (m³/hr)

Typical Capture Velocity

Manual MIG welding

Extraction arm

800 – 1200

0.5 – 1.0 m/s

TIG welding

Local hood

600 – 900

0.4 – 0.8 m/s

Robotic welding cell

Enclosed hood

1500 – 2500

0.8 – 1.2 m/s

Grinding and welding stations

Downdraft table

2000 – 3500

1.0 – 1.5 m/s

Actual airflow requirements depend on:

  • Welding process type
  • Distance between the arc and extraction hood
  • Workshop layout
  • Number of active welding stations

Proper engineering calculations are required to size the welding fume extraction equipment correctly.



Practical Industrial Applications

Automotive Manufacturing

Automotive manufacturing facilities rely heavily on robotic welding systems for assembling vehicle bodies and components.

These facilities often use centralized welding fume extraction systems connected to multiple welding stations. Enclosures and high-capacity filtration units ensure that fumes generated during robotic welding are effectively captured.

Fabrication Shops

Structural fabrication shops typically operate multiple manual welding stations. In such environments, mobile welding fume extractor units with flexible arms are commonly used.

These systems allow welders to reposition the extraction arm depending on the workpiece location, ensuring effective fume capture.

Electronics Manufacturing

Electronics manufacturing processes often involve soldering and micro-welding operations. Although the fume volumes are smaller, the particles produced can still pose health risks.

Compact extraction units are used to capture fumes generated during soldering and precision welding processes.

CNC and Equipment Manufacturing

Many CNC machine shops include welding as part of the manufacturing process for frames, fixtures, and machine components.

Local extraction systems integrated into welding stations prevent fumes from spreading into areas where precision machining operations are conducted.

Expert Insight

In many fabrication shops, welding fumes are controlled using general ventilation or ceiling exhaust fans. However, these approaches often fail to capture fumes before they reach the worker’s breathing zone.

From an engineering perspective, source capture is the most effective strategy. Positioning extraction arms within 200–300 mm of the welding arc significantly improves capture efficiency. Proper maintenance of filters and periodic airflow verification are also essential to ensure long-term performance of the welding fume extraction system.


Frequently Asked Questions

What is a welding fume extraction system?

A welding fume extraction system is an engineered ventilation system designed to capture and filter fumes generated during welding processes before they disperse into the workplace environment.

Why is local extraction preferred over general ventilation?

Local extraction captures fumes directly at the source, preventing them from spreading into the surrounding workspace. General ventilation dilutes contaminants but does not remove them effectively.

How often should filters in welding fume extraction equipment be replaced?

Filter replacement intervals depend on welding intensity and system design. In most industrial environments, filters are inspected regularly and replaced when pressure drop exceeds recommended limits.

Can a welding fume extractor handle multiple welding stations?

Yes. Larger systems can be designed to serve multiple stations using ducting networks connected to a centralized filtration unit.

Are welding fumes hazardous even in small workshops?

Yes. Even small welding operations can produce harmful metal particles and gases. Proper industrial welding ventilation is important regardless of workshop size.

Conclusion

Welding fumes are an unavoidable by-product of metal fabrication processes, but their impact on workplace safety and air quality can be effectively controlled with proper engineering solutions. A well-designed welding fume extraction system captures fumes at the source, filters hazardous particles, and prevents contamination of the work environment.

By implementing appropriate welding fume extraction equipment and maintaining proper industrial welding ventilation, fabrication shops can significantly improve worker safety, operational efficiency, and regulatory compliance. As welding operations continue to expand across manufacturing industries, investing in reliable air pollution control systems remains a critical component of modern industrial facility design.
