Categories Air Pollution Control, Soldering fume extractor Author Philip Thomas

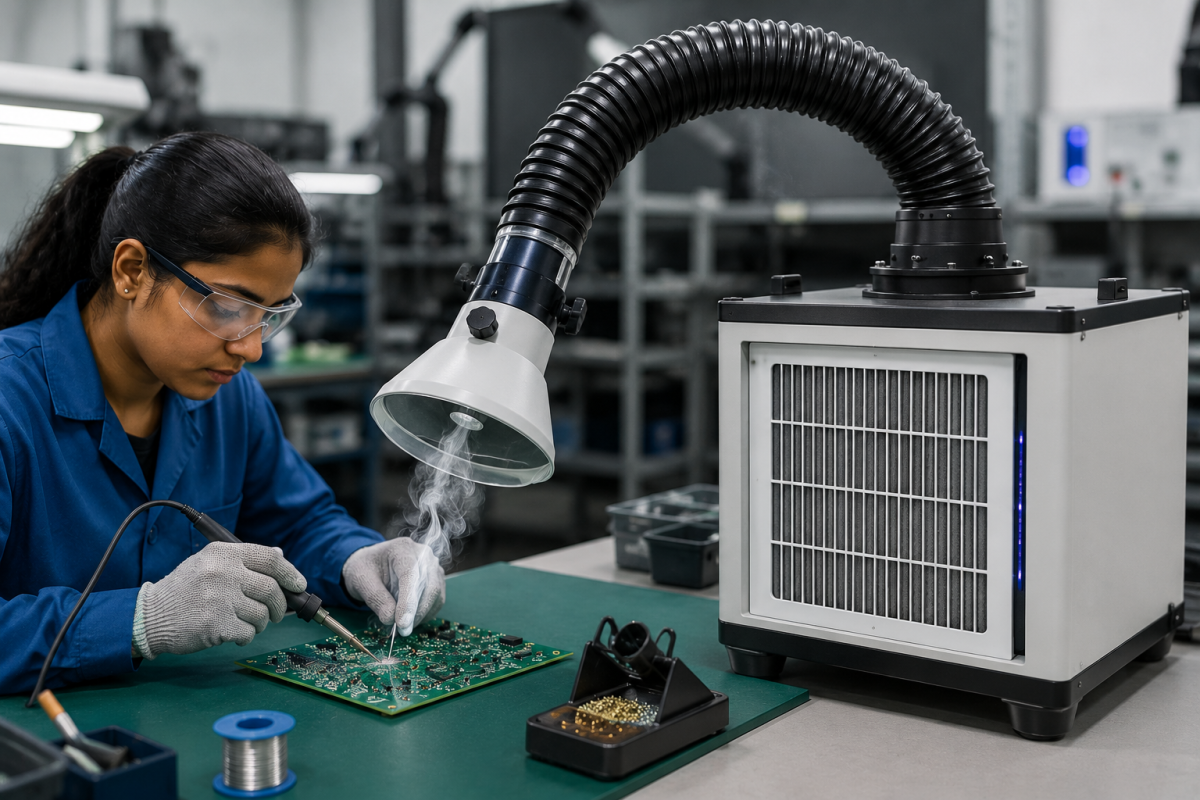

Soldering Fume Extraction Systems in Electronics Manufacturing

Introduction

Electronics manufacturing processes such as manual soldering, wave soldering, and rework operations generate fumes containing flux vapors, fine particulate matter, and volatile organic compounds (VOCs). Although soldering fumes may appear less intense than welding fumes, prolonged exposure in enclosed workspaces can significantly affect indoor air quality and operator health.

A properly designed soldering fume extractor is essential for controlling airborne contaminants directly at the source. In electronics manufacturing environments where operators work for extended durations at close proximity to soldering points, effective electronics fume extraction becomes critical for maintaining safe and productive working conditions.

Modern soldering ventilation systems are designed to capture fumes before dispersion, improving visibility, reducing odor, and minimizing exposure to hazardous substances generated during soldering operations.

With over 30 years of experience in industrial air pollution control, Powertech has implemented customized fume extraction for soldering applications across electronics assembly facilities, PCB manufacturing units, and precision production environments.

Key Takeaways

  1. A soldering fume extractor captures hazardous fumes directly at the source.
  2. Flux fumes and VOCs generated during soldering can affect indoor air quality.
  3. Proper source capture improves operator safety and process visibility.
  4. Filtration efficiency and airflow positioning are critical for effective performance.

The Problem: Soldering Fume Exposure in Electronics Manufacturing

Soldering operations generate fine fumes that often remain concentrated around operators in enclosed workstations.

Causes

  1. Flux vaporization during soldering
  2. Continuous manual soldering operations
  3. Poor ventilation in assembly areas
  4. Ineffective source capture systems

Workplace Impact

  1. Irritation of eyes and respiratory system
  2. Reduced operator comfort
  3. Accumulation of fumes in indoor environments
  4. Decreased visibility during precision work

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), soldering fumes may contain harmful airborne contaminants including flux decomposition products.

The National Institute for Occupational Safety and Health (NIOSH) recommends local exhaust ventilation for soldering operations to minimize exposure.

Technical Explanation: How Soldering Fume Extraction Systems Work

Step 1: Source Capture

The extraction nozzle or hood is positioned close to the soldering point.

  1. Typical distance: 50–150 mm from source
  2. Captures fumes before dispersion

Source capture is significantly more effective than general room ventilation.

Step 2: Airflow Generation

A blower creates airflow that pulls fumes into the extraction system.

Key Requirements

  1. Stable airflow
  2. Low noise operation
  3. Consistent suction at workstation level

Step 3: Filtration Process

Modern electronics fume extraction systems often use multi-stage filtration.

Typical Filtration Stages

  1. Pre-filter for larger particles
  2. HEPA filter for fine particulate
  3. Activated carbon filter for VOCs and odors

Activated carbon filtration is especially important for flux fumes.

Step 4: Clean Air Discharge

Filtered air is either:

  1. Discharged safely
  2. Or recirculated into the workspace (depending on filtration efficiency)

Filtration Requirements for Soldering Applications

Filtration StagePurposeTypical Contaminants
Pre-filterLarger particlesDust and coarse particulate
HEPA FilterFine particulateSolder smoke and fine fumes
Activated CarbonGas adsorptionFlux vapors and VOCs
Multi-stage SystemCombined protectionMixed contaminants

Practical Industrial Applications

PCB Assembly Lines

  1. Continuous soldering operations
  2. Multiple operator stations
  3. Compact extraction systems required

Electronics Manufacturing

  1. Precision work environments
  2. Need for low-noise systems
  3. High indoor air quality requirements

Rework Stations

  1. Portable extraction arms or nozzles
  2. Flexible positioning needed

Laboratory and R&D Applications

  1. Small-scale soldering operations
  2. Benchtop fume extractors commonly used

Expert Insight

From Powertech’s experience, one of the most overlooked aspects of soldering ventilation systems is airflow positioning.

Key observations:

  1. Even high-efficiency filters underperform if source capture is poor
  2. Activated carbon filtration is critical for odor and VOC control
  3. Compact systems require careful airflow balancing to maintain suction

In several electronics manufacturing installations, optimizing nozzle placement significantly improved fume extraction for soldering without increasing airflow capacity.

Why is a soldering fume extractor necessary?

It removes harmful fumes and flux vapors generated during soldering operations.

What filters are used in soldering fume extraction systems?

Typically HEPA filters and activated carbon filters.

Can soldering fumes affect health?

Yes, prolonged exposure can irritate the respiratory system and eyes.

What is the ideal distance for source capture?

Usually between 50–150 mm from the soldering point.

Are portable soldering fume extractors effective?

Yes, when properly positioned close to the source.

Conclusion

A properly designed soldering fume extractor is essential for maintaining safe air quality in electronics manufacturing environments. By implementing effective electronics fume extraction systems and optimizing soldering ventilation systems, industries can significantly improve worker safety and indoor air quality. Effective fume extraction for soldering requires a combination of proper source capture, efficient filtration, and well-balanced airflow. With decades of experience in industrial air pollution control, Powertech continues to provide engineered solutions for electronics manufacturing environments where precision, safety, and clean air are critical.

Categories Air Pollution Control, Welding fume extractor Author Philip Thomas

Improving Efficiency of Welding Fume Extraction Systems

Introduction

Installing a welding fume extraction system is only the first step toward maintaining clean and safe industrial environments. In many facilities, systems operate below their intended performance due to airflow imbalance, poor hood positioning, clogged filters, or improper maintenance practices. As a result, fumes escape into the workspace despite the presence of extraction equipment.

Improving the efficiency of a welding fume extractor requires a combination of proper engineering design, operational optimization, and preventive maintenance. Even small adjustments in airflow, duct layout, or extraction arm positioning can significantly enhance overall system performance.

An optimized approach to welding pollution control not only improves air quality but also reduces energy consumption and maintenance costs. With over 30 years of experience, Powertech has improved fume extraction system performance across fabrication shops, automotive manufacturing facilities, and heavy engineering industries through practical engineering-driven optimization strategies.

Key Takeaways

  1. Proper source capture is the most important factor in welding fume extraction efficiency.
  2. Airflow balancing and duct optimization significantly improve system performance.
  3. Regular maintenance prevents efficiency loss over time.
  4. Optimized systems improve both air quality and energy efficiency.

The Problem: Reduced System Efficiency

Many extraction systems gradually lose performance due to operational and maintenance issues.

Causes

  1. Incorrect extraction arm positioning
  2. Insufficient airflow at capture points
  3. Poor duct design and pressure losses
  4. Clogged or overloaded filters
  5. Lack of preventive maintenance

Workplace Impact

  1. Visible welding fumes in the workspace
  2. Reduced visibility and operator comfort
  3. Higher energy consumption
  4. Increased downtime and maintenance costs

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), inadequate welding ventilation may expose workers to hazardous airborne contaminants.

The National Institute for Occupational Safety and Health (NIOSH) recommends proper ventilation and source capture methods for effective welding fume control.

Technical Explanation: How to Improve System Efficiency

Step 1: Optimize Source Capture

Effective source capture is the foundation of system efficiency.

Best Practices

  1. Position extraction arms 150–300 mm from the arc
  2. Align hood with rising fume direction
  3. Avoid airflow obstruction by the operator

Proper positioning improves capture without increasing airflow.

Step 2: Balance Airflow Across the System

Uneven airflow reduces performance in multi-point systems.

Optimization Methods

  1. Adjust dampers
  2. Measure airflow at all stations
  3. Ensure consistent suction levels

Balanced systems deliver more reliable performance.

Step 3: Improve Duct Design

Poor duct layouts increase pressure losses.

Recommended Improvements

  1. Reduce sharp bends
  2. Maintain proper duct velocity (12–17 m/s)
  3. Shorten unnecessary duct runs

Better duct design improves airflow efficiency.

Step 4: Maintain Filtration Systems

Filter condition directly affects airflow and extraction performance.

Maintenance Actions

  1. Monitor pressure drop
  2. Replace clogged filters
  3. Clean filters and ducting regularly

Delayed maintenance is a major cause of performance decline.

Step 5: Monitor System Performance

Continuous monitoring helps identify problems early.

Parameters to Monitor

  1. Airflow
  2. Static pressure
  3. Filter pressure drop
  4. Fan performance

Data-driven maintenance improves reliability.

Key Parameters Affecting Efficiency

ParameterRecommended RangeImpact
Hood distance150 – 300 mmSource capture efficiency
Capture velocity0.5 – 1.5 m/sFume control effectiveness
Duct velocity10 – 15 m/sPrevents dust settling
Filter pressure dropWithin design rangeMaintains airflow
Airflow balanceUniform across stationsConsistent performance

Practical Industrial Applications

Fabrication Shops

  1. Frequent repositioning of extraction arms
  2. Need for flexible airflow balancing

Automotive Manufacturing

  1. Centralized systems requiring precise balancing
  2. Robotic welding with consistent airflow demands

Maintenance Workshops

  1. Portable systems dependent on operator positioning

Heavy Engineering

  1. High particulate load requiring optimized filtration and airflow

Expert Insight

From Powertech’s field experience, one of the most effective ways to improve welding fume extraction efficiency is through system optimization rather than equipment replacement.

Key observations:

  1. Poor positioning often causes greater efficiency loss than insufficient airflow
  2. Regular airflow measurements reveal hidden performance issues
  3. Preventive maintenance significantly improves long-term performance

In several installations, optimizing airflow distribution and hood positioning improved system efficiency without increasing fan capacity.

How can welding fume extraction efficiency be improved?

By optimizing hood positioning, balancing airflow, improving duct design, and maintaining filters regularly.

Does higher airflow always improve performance?

No. Proper source capture and system design are equally important.

Why does system performance decline over time?

Due to clogged filters, airflow imbalance, and lack of maintenance.

How often should airflow be checked?

Regular inspections and airflow measurements are recommended.

Can existing systems be improved without replacement?

Yes. Many systems can be optimized through design corrections and maintenance.

Conclusion

Improving welding fume extraction efficiency requires a comprehensive approach that combines proper source capture, optimized airflow, effective filtration, and preventive maintenance. By focusing on fume extraction system performance and implementing engineering-driven improvements, industries can achieve better welding pollution control, improved air quality, and lower operational costs. With decades of experience, Powertech continues to help industries optimize welding ventilation systems for reliable, efficient, and long-term performance.

Categories Air Pollution Control, Fumekiller, Powertech pollution control, Welding fume extractor Author Philip Thomas

Filtration Technologies Used in Welding Fume Extractors

Introduction

Welding fumes consist of submicron particulate matter, metal oxides, and gaseous byproducts that are difficult to remove without properly engineered filtration systems. While capture at the source is critical, the effectiveness of a welding fume extraction system ultimately depends on how efficiently these contaminants are filtered before the air is discharged or recirculated.

Different applications require different filtration approaches based on particle size, concentration, and process conditions. Selecting the right welding fume filtration technology is essential to ensure compliance with safety standards, protect worker health, and maintain system efficiency.

Modern extraction systems use a combination of industrial fume filters, including cartridge filters welding fumes and advanced methods such as electrostatic fume filtration, to achieve high levels of efficiency.

With over 30 years of experience, Powertech has implemented a range of filtration solutions tailored to industrial environments, ensuring reliable and consistent performance across diverse welding applications.

Key Takeaways

  1. Effective welding fume filtration requires selecting the right technology based on application.
  2. Cartridge filters are widely used for high-efficiency particulate removal.
  3. Electrostatic filtration is effective for fine and oily fumes.
  4. Multi-stage filtration systems provide optimal performance and reliability.

The Problem: Complexity of Welding Fume Filtration

Welding fumes contain a mix of particles with varying sizes and properties, making filtration challenging.

Causes

  1. Fine particulate size (often <1 micron)
  2. High temperature fumes
  3. Variation in welding processes
  4. Presence of oily or sticky particles

Workplace Impact

  1. Ineffective filtration leading to poor air quality
  2. Frequent filter clogging
  3. Increased maintenance costs
  4. Reduced system efficiency

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), welding fumes can contain hazardous substances such as manganese and chromium.

The World Health Organization (WHO) highlights that exposure to fine particulate matter can lead to respiratory and cardiovascular diseases.

Technical Explanation: Types of Filtration Technologies

1. Cartridge Filters

Cartridge filters are the most widely used industrial fume filters for welding applications.

Working Principle

  1. Contaminated air passes through pleated filter media
  2. Particles are captured on the surface
  3. Clean air exits the system

Features

  1. High filtration efficiency (up to 99%)
  2. Suitable for fine particulate
  3. Pulse-jet cleaning for extended life

Applications

  1. Fabrication shops
  2. Automotive manufacturing
  3. General welding operations

2. Electrostatic Fume Filtration

Electrostatic fume filtration is used for capturing extremely fine particles and oily fumes.

Working Principle

  1. Particles are electrically charged
  2. Charged particles are attracted to collector plates
  3. Clean air is released

Features

  1. Effective for submicron particles
  2. Low pressure drop
  3. Suitable for oil mist and smoke

Applications

  1. Welding with oil-coated materials
  2. CNC machining environments
  3. High-precision industries

3. HEPA Filtration

High-Efficiency Particulate Air (HEPA) filters provide an additional level of filtration.

Features

  1. Efficiency up to 99.97% for very fine particles
  2. Used as secondary or final stage
  3. Ensures clean air recirculation

Applications

  1. Critical environments
  2. Indoor air recirculation systems

4. Multi-Stage Filtration Systems

Most industrial systems use a combination of filtration stages.

Typical Configuration

  1. Pre-filter (large particles)
  2. Cartridge filter (fine particles)
  3. HEPA or secondary filter (ultra-fine particles)

This approach improves overall efficiency and filter life.

Filtration Comparison Table

Filtration TypeEfficiencyParticle Size RangePressure DropBest Application
Cartridge FilterUp to 99%Fine particlesMediumGeneral welding
Electrostatic FilterHighSubmicron & oily fumesLowOil mist, smoke
HEPA Filter99.97%Ultra-fine particlesHighClean air recirculation
Multi-Stage SystemVery HighWide rangeVariableIndustrial applications

Practical Industrial Applications

Fabrication Shops

  1. Cartridge-based systems
  2. Moderate fume loads
  3. Flexible filtration requirements

Automotive Manufacturing

  1. Multi-stage filtration systems
  2. High-volume continuous operations
  3. Centralized systems

Maintenance Workshops

  1. Portable systems with cartridge filters
  2. Lower filtration complexity

Heavy Engineering

  1. High dust load
  2. Requires robust filter systems
  3. Frequent cleaning cycles

Expert Insight

From Powertech’s experience, one of the most common mistakes in welding fume filtration is selecting a filtration system based solely on efficiency ratings without considering operating conditions.

Key observations:

  1. High-efficiency filters can fail quickly if pre-filtration is inadequate
  2. Electrostatic systems perform best in specific applications, not all environments
  3. Multi-stage systems offer the best balance between efficiency and durability

In several installations, optimizing filter configuration has significantly reduced maintenance frequency and improved overall system performance.

What is the best filtration method for welding fumes?

Cartridge filters are widely used, but multi-stage systems provide the best overall performance.

When should electrostatic filtration be used?

For fine, oily, or sticky fumes where traditional filters may clog quickly.

Do welding fume extractors require HEPA filters?

HEPA filters are used when very high filtration efficiency or air recirculation is required.

How often should filters be replaced?

Depends on usage and dust load; monitoring pressure drop is the best method.

Can one filter type handle all applications?

No, filtration systems must be selected based on specific process requirements.

Conclusion

Effective welding fume filtration is essential for ensuring clean air, worker safety, and system efficiency. Different filtration technologies—such as cartridge filters, electrostatic fume filtration, and multi-stage systems—offer unique advantages depending on the application. A well-designed system combines appropriate filtration technologies with proper airflow and duct design to deliver optimal performance. With decades of experience in industrial fume filters, Powertech continues to emphasize tailored filtration solutions that meet the specific needs of industrial environments, ensuring reliable and long-term air pollution control.

Categories Air Pollution Control, Fumekiller, Powertech pollution control, Welding fume extractor Author Philip Thomas

Capture Velocity Requirements for Welding Fume Extraction

Introduction

Effective welding fume control depends fundamentally on the ability to capture contaminants at the point of generation. In welding operations, fumes are produced at high temperatures and disperse rapidly into the surrounding air. If not captured immediately, they spread across the workspace, reducing air quality and increasing operator exposure.

The key parameter that determines whether fumes are successfully captured is capture velocity welding fumes. Capture velocity defines the air speed required at the source to overcome the momentum of rising fumes and draw them into the extraction system.

In industrial environments, improper understanding of welding ventilation design often leads to inadequate airflow, resulting in poor system performance. A well-engineered approach to fume extraction airflow requirements ensures that contaminants are effectively removed before dispersion.

With over 30 years of experience, Powertech has designed industrial welding ventilation systems where optimizing capture velocity has significantly improved air quality and system efficiency across fabrication and manufacturing facilities.

Key Takeaways

  1. Capture velocity welding fumes is critical for effective source capture.
  2. Incorrect capture velocity leads to poor fume extraction even with high airflow.
  3. Proper welding ventilation design must account for hood distance and airflow direction.
  4. Optimizing capture velocity improves both safety and system efficiency.

The Problem: Inadequate Capture Velocity

Many welding fume extraction systems fail not due to lack of airflow, but due to insufficient capture velocity at the source.

Causes

  1. Extraction hood positioned too far from welding arc
  2. Low airflow at the hood opening
  3. Cross drafts interfering with airflow
  4. Incorrect hood design
  5. Poor system balancing

Workplace Impact

  1. Visible smoke escaping into the workspace
  2. Reduced visibility during welding
  3. Increased contamination of equipment
  4. Inefficient system performance

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), inadequate ventilation can lead to exposure to hazardous welding fumes affecting respiratory health.

The National Institute for Occupational Safety and Health (NIOSH) emphasizes that proper ventilation design is essential to control airborne contaminants effectively.

Technical Explanation: Understanding Capture Velocity

Capture velocity is the air velocity at any point in front of the hood required to capture contaminants.

Key Relationship

V = Q / A

Where:

  1. V = Capture velocity (m/s)
  2. Q = Airflow rate (m³/s)
  3. A = Hood area (m²)

Factors Affecting Capture Velocity

1. Distance from Source

Capture velocity decreases rapidly with distance.

  1. 150 mm → effective capture
  2. 300 mm → significant reduction

The required airflow is directly related to the square of the distance of the hood from the source.

2. Hood Design

Different hood types affect airflow patterns.

  1. Flanged hoods improve efficiency
  2. Plain openings require higher airflow
  3. Enclosures provide best performance

3. Airflow Rate

Higher airflow increases capture velocity, but only within practical limits.

  1. Excess airflow increases energy cost
  2. Poor positioning cannot be compensated by airflow

4. Cross Drafts

Air movement in the workspace can disrupt capture.

  1. Fans
  2. Open doors
  3. HVAC systems

👉 These reduce effective capture velocity.

Recommended Capture Velocity Values

Welding ApplicationCapture Velocity (m/s)Remarks
Light welding (TIG)0.5 – 0.75Low fume generation
Medium welding (MIG)0.75 – 1.0Standard applications
Heavy welding (Arc)1.0 – 1.5High fume generation
Robotic welding1.0 – 1.5Continuous operation
Enclosed systems0.5 – 0.75Controlled environment

Practical Industrial Applications

Fabrication Shops

  1. Flexible extraction arms
  2. Variable capture requirements
  3. Importance of operator positioning

Automotive Manufacturing

  1. Robotic welding cells
  2. Enclosed extraction systems
  3. Consistent airflow requirements

Maintenance Workshops

  1. Portable extraction systems
  2. High dependency on correct positioning

Heavy Engineering

  1. High fume generation
  2. Requires higher capture velocity

Expert Insight

From Powertech’s experience, one of the most common misconceptions is that increasing airflow automatically improves fume capture.

In reality:

  1. Capture velocity at the source is more important than total airflow
  2. Poor hood placement cannot be corrected by increasing system capacity
  3. Optimized design reduces energy consumption while improving performance

In several installations, improving capture velocity through better positioning and hood design has increased efficiency without increasing airflow.

What is capture velocity in welding fumes?

It is the air speed required at the source to capture welding fumes before they disperse.

What is the ideal capture velocity for welding?

Typically between 0.5 to 1.5 m/s depending on the welding process.

Does increasing airflow improve capture velocity?

Yes, but only if the hood is properly positioned.

Why does capture velocity decrease with distance?

Because air velocity dissipates rapidly as it moves away from the hood opening.

Can capture velocity be improved without increasing airflow?

Yes, by reducing hood distance and improving hood design.

Conclusion

Capture velocity is a critical parameter in designing effective welding fume extraction systems. Without sufficient capture velocity welding fumes, even well-designed systems fail to control contaminants effectively. A proper welding ventilation design must consider airflow, hood positioning, and environmental conditions to meet fume extraction airflow requirements. By optimizing capture velocity, industries can achieve better air quality, improved safety, and more efficient industrial welding ventilation systems. With decades of experience, Powertech continues to emphasize engineering-driven design to ensure reliable and effective welding fume extraction solutions.

Categories Air Pollution Control, Fumekiller, Mistkiller, Welding fume extractor Author Philip Thomas

Best Positioning for Welding Fume Extraction Arms

Introduction

Even the most advanced extraction unit will underperform if the capture point is incorrectly positioned. In welding environments, fumes rise rapidly due to thermal buoyancy and disperse with even minor air currents. If the extraction arm is not placed strategically, fumes bypass the hood and enter the operator’s breathing zone.

Effective welding extraction arm positioning is therefore one of the most critical—and most overlooked—factors in system performance. Many cases of poor ventilation are not caused by inadequate equipment, but by incorrect fume extraction hood placement.

A well-positioned arm enables true source capture welding fumes, ensuring contaminants are removed before dispersion. With over 30 years of experience, Powertech has consistently observed that proper positioning alone can significantly improve welding ventilation efficiency without increasing airflow or system capacity.

Key Takeaways

  1. Correct welding extraction arm positioning is essential for effective fume capture.
  2. Source capture is far more effective than general ventilation.
  3. Hood distance and angle directly impact welding ventilation efficiency.
  4. Small positioning changes can significantly improve system performance.

The Problem: Poor Hood Placement

Improper positioning is one of the leading causes of ineffective welding fume extraction.

Causes

  1. Extraction arm placed too far from the arc
  2. Incorrect angle relative to fume rise direction
  3. Obstruction by the operator or workpiece
  4. Lack of operator training
  5. Frequent repositioning without guidelines

Workplace Impact

  1. Visible fumes escaping into the workspace
  2. Reduced visibility during welding
  3. Increased exposure for operators
  4. Inefficient use of extraction systems

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), exposure to welding fumes can lead to respiratory irritation and long-term health risks.

The National Institute for Occupational Safety and Health (NIOSH) emphasizes source capture as the most effective method for controlling airborne contaminants.

Technical Explanation: How to Position Extraction Arms Correctly

Step 1: Maintain Optimal Distance

The hood should be positioned close enough to capture fumes effectively.

  1. Ideal distance: 150 – 300 mm from the welding arc
  2. Closer positioning reduces airflow requirements

Doubling the distance can significantly reduce capture efficiency.

Step 2: Align with Fume Direction

Welding fumes typically rise upward due to heat.

  1. Position hood slightly above the arc
  2. Angle it to intercept the rising plume

Avoid placing the hood below the welding point.

Step 3: Avoid Blocking Airflow

Improper placement can cause fumes to pass through the operator’s breathing zone.

  1. Do not position hood behind the welder
  2. Avoid placing the hood directly between the arc and the operator’s face

The hood should capture fumes before they reach the operator.

Step 4: Maintain Stable Positioning

Flexible arms must be properly adjusted and locked.

  1. Ensure the arm does not drift during operation
  2. Use arms with good positional stability

Step 5: Minimize Cross Draft Effects

External air movement can disrupt capture.

  1. Avoid placing hoods near fans or open doors
  2. Position to counter airflow disturbances

Recommended Positioning Guidelines

ParameterRecommended ValueRemarks
Hood distance150 – 300 mmCritical for capture
Hood angle30° – 60° toward plumeAlign with fume rise
Position relative to operatorIn front of plumeAvoid breathing zone
Height above arcSlightly aboveMatches fume movement
StabilityFixed positionPrevents drift

Practical Industrial Applications

Fabrication Shops

  1. Frequent repositioning required
  2. Operator training is critical
  3. Flexible arms preferred

Automotive Manufacturing

  1. Fixed positioning in robotic cells
  2. Enclosed extraction systems
  3. Consistent placement improves reliability

Maintenance Workshops

  1. Portable systems used
  2. High dependency on operator positioning

Heavy Engineering

  1. Larger workpieces
  2. Requires adjustable and extended arms

Expert Insight

From Powertech’s field experience, incorrect positioning is one of the most common and easiest-to-fix issues in welding ventilation systems.

In many workshops, improving welding extraction arm positioning has resulted in immediate improvements in air quality without any changes to system capacity.

Key practical observations:

  1. Source capture is more effective than increasing airflow
  2. Proper positioning reduces energy consumption
  3. Operator training is as important as system design

In several installations, correcting fume extraction hood placement has improved efficiency by over 25% without additional investment.

What is the ideal position for a welding extraction arm?

The hood should be placed 150–300 mm from the welding arc and aligned with the direction of rising fumes.

Why is source capture important in welding?

It prevents fumes from spreading into the workspace and reduces operator exposure.

Can poor positioning reduce system efficiency?

Yes, incorrect positioning can significantly reduce capture efficiency even with high airflow.

Should the hood be placed above or below the welding arc?

It should be placed slightly above the arc to capture rising fumes.

How can operators improve positioning?

By keeping the hood close to the source, aligning it with fume direction, and avoiding airflow obstruction.

Conclusion

Proper welding extraction arm positioning is a fundamental requirement for effective fume control. Without correct placement, even well-designed systems fail to capture fumes efficiently. By focusing on source capture welding fumes, optimizing fume extraction hood placement, and improving welding ventilation efficiency, industries can achieve safer and more efficient working environments. With decades of experience, Powertech emphasizes that correct positioning—combined with sound engineering design—is key to achieving reliable and effective welding fume extraction performance.

1 2 3 … 14
