Introduction
Selecting the right filtration technology is one of the most critical decisions in designing an effective fume extraction system. Welding and metalworking processes generate fine particulate matter, often in submicron ranges, which require specialized filtration approaches. Among the most widely used technologies are electrostatic fume extractor systems and cartridge fume extractor systems.
Each technology operates on a fundamentally different principle and is suited to specific industrial conditions. Choosing incorrectly can result in poor air quality, excessive maintenance, or inefficient system performance.
A clear understanding of industrial fume filtration systems is essential to determine the most appropriate solution for a given application. With over 30 years of experience, Powertech has implemented both electrostatic and cartridge-based welding fume filtration technology across industries, tailoring solutions based on process requirements and operating conditions.
Key Takeaways
- Electrostatic fume extractor systems are ideal for fine and oily fumes.
- Cartridge fume extractor systems are widely used for dry particulate welding fumes.
- Application type determines the most effective filtration technology.
- Multi-stage systems often combine both technologies for optimal performance.
The Problem: Choosing the Right Filtration Technology
Industrial environments often use a single filtration type without considering process-specific requirements.
Causes
- Lack of understanding of particle characteristics
- Incorrect system selection for application
- Over-reliance on efficiency ratings
- Ignoring operating conditions such as oil content
Workplace Impact
- Reduced filtration efficiency
- Frequent maintenance issues
- Increased operational costs
- Poor air quality
Safety Risks
According to the Occupational Safety and Health Administration (OSHA), welding fumes may contain hazardous metals that require effective filtration.
The National Institute for Occupational Safety and Health (NIOSH) emphasizes the importance of selecting appropriate filtration systems to control airborne contaminants.
Technical Explanation: How Each Technology Works
1. Electrostatic Fume Extractor
Working Principle
- Air passes through an ionization section
- Particles are electrically charged
- Charged particles are attracted to collector plates
- Clean air is discharged
Key Characteristics
- Highly effective for submicron particles
- Low pressure drop
- Suitable for oily and sticky fumes
- Washable collector plates
2. Cartridge Fume Extractor
Working Principle
- Air passes through pleated filter cartridges
- Particles are captured on filter media
- Clean air exits the system
- Filters are cleaned using pulse-jet systems
Key Characteristics
- High filtration efficiency (up to 99%)
- Suitable for dry particulate
- Widely used in welding applications
- Requires periodic filter replacement

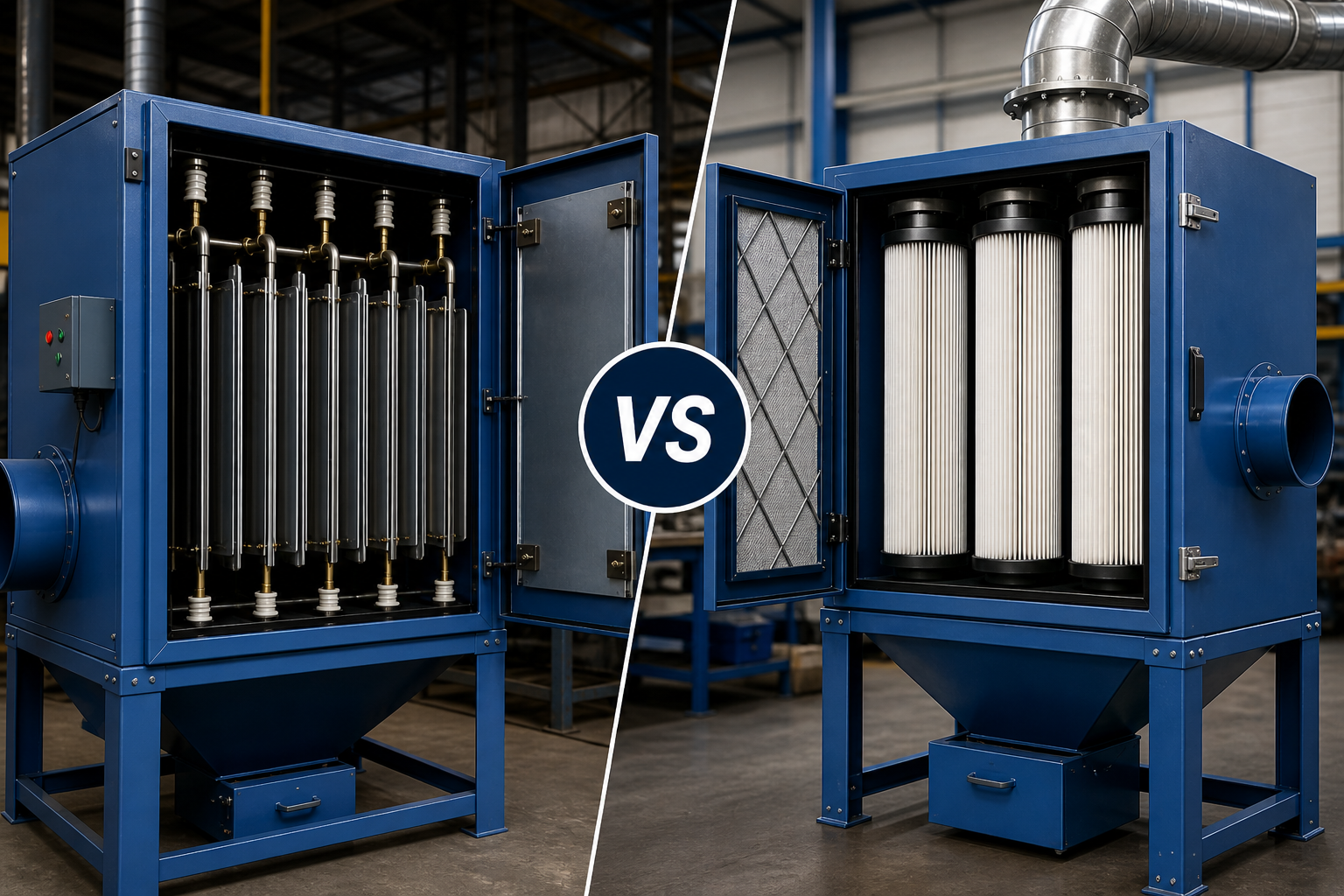

Comparison Table: Electrostatic vs Cartridge Filtration
| Parameter | Electrostatic Fume Extractor | Cartridge Fume Extractor |
|---|---|---|
| Filtration method | Electrical charging | Mechanical filtration |
| Particle size | Submicron & fine | Fine to medium particles |
| Pressure drop | Low | Medium |
| Maintenance | Washable plates | Filter replacement |
| Best for | Oily fumes, smoke | Dry welding fumes |
| Efficiency | High | Very high |
Practical Industrial Applications
Fabrication Shops
- Cartridge systems commonly used
- Effective for dry welding fumes
- Easy maintenance
Automotive Manufacturing
- Combination systems
- High-volume operations
- Centralized filtration
CNC Machining and Oil Mist Applications
- Electrostatic systems preferred
- Handles oily particles effectively
Heavy Engineering
- Cartridge systems for high dust loads
- Multi-stage systems for complex processes
Expert Insight
From Powertech’s experience, one of the most common mistakes is selecting a filtration system based purely on efficiency without considering the nature of the fumes.
Key observations:
- Electrostatic systems perform exceptionally well for oily and fine particles but are not ideal for heavy dust loads
- Cartridge systems are robust for welding fumes but may clog quickly in oily environments
- Hybrid systems often deliver the best results in mixed-process environments
In several industrial installations, combining both technologies has significantly improved filtration efficiency and reduced maintenance requirements.
It is a system that uses electrical charges to capture fine and submicron particles from contaminated air.
For dry particulate welding fumes where high filtration efficiency is required.
Cartridge systems are generally preferred, but electrostatic systems are better for oily fumes.
Yes, multi-stage systems can combine both technologies for improved performance.
Particle size Oil content Airflow requirements Maintenance considerations
Both electrostatic fume extractor and cartridge fume extractor systems play critical roles in modern industrial fume filtration systems. The choice between them depends on the nature of the fumes, operating conditions, and system requirements. Understanding the strengths and limitations of each welding fume filtration technology allows industries to design more effective and efficient air pollution control systems. With decades of experience, Powertech continues to provide tailored filtration solutions that ensure optimal performance, improved air quality, and long-term reliability in industrial environments.
