How Soldering Fume Extractors Work

Introduction

Soldering operations in electronics manufacturing generate fumes that contain flux vapors, fine particulate matter, and volatile organic compounds (VOCs). These fumes are released directly into the operator’s breathing zone and can quickly accumulate in enclosed workspaces if not controlled effectively.

A clear understanding of how a soldering fume extractor works is essential for designing safe and efficient electronics manufacturing environments. Modern electronics fume extraction systems are engineered to capture fumes directly at the source, filter airborne contaminants, and maintain clean indoor air quality.

Unlike general ventilation systems, a solder smoke extractor focuses on localized source capture, ensuring contaminants are removed before dispersing into the workspace. Properly designed soldering ventilation equipment improves operator safety, reduces odor, and enhances productivity in electronics assembly operations.

With over 30 years of experience in industrial air pollution control, Powertech has implemented customized soldering fume extraction solutions for PCB assembly lines, electronics manufacturing facilities, and precision soldering environments.

Key Takeaways

1. A soldering fume extractor captures fumes directly at the source.
2. Multi-stage filtration removes particulate matter and gases.
3. Source capture is more effective than general room ventilation.
4. Proper airflow and nozzle positioning are critical for performance.

The Problem: Airborne Contaminants During Soldering

Soldering fumes are often underestimated because the visible smoke generated is relatively small.

Causes

1. Heating of flux compounds
2. Poor local ventilation
3. Continuous soldering operations
4. Inadequate source capture systems

Workplace Impact

1. Odor accumulation
2. Eye and throat irritation
3. Reduced operator comfort
4. Poor indoor air quality

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), soldering operations can release airborne contaminants that require local exhaust ventilation.

The National Institute for Occupational Safety and Health (NIOSH) recommends source capture ventilation for soldering applications to reduce operator exposure.

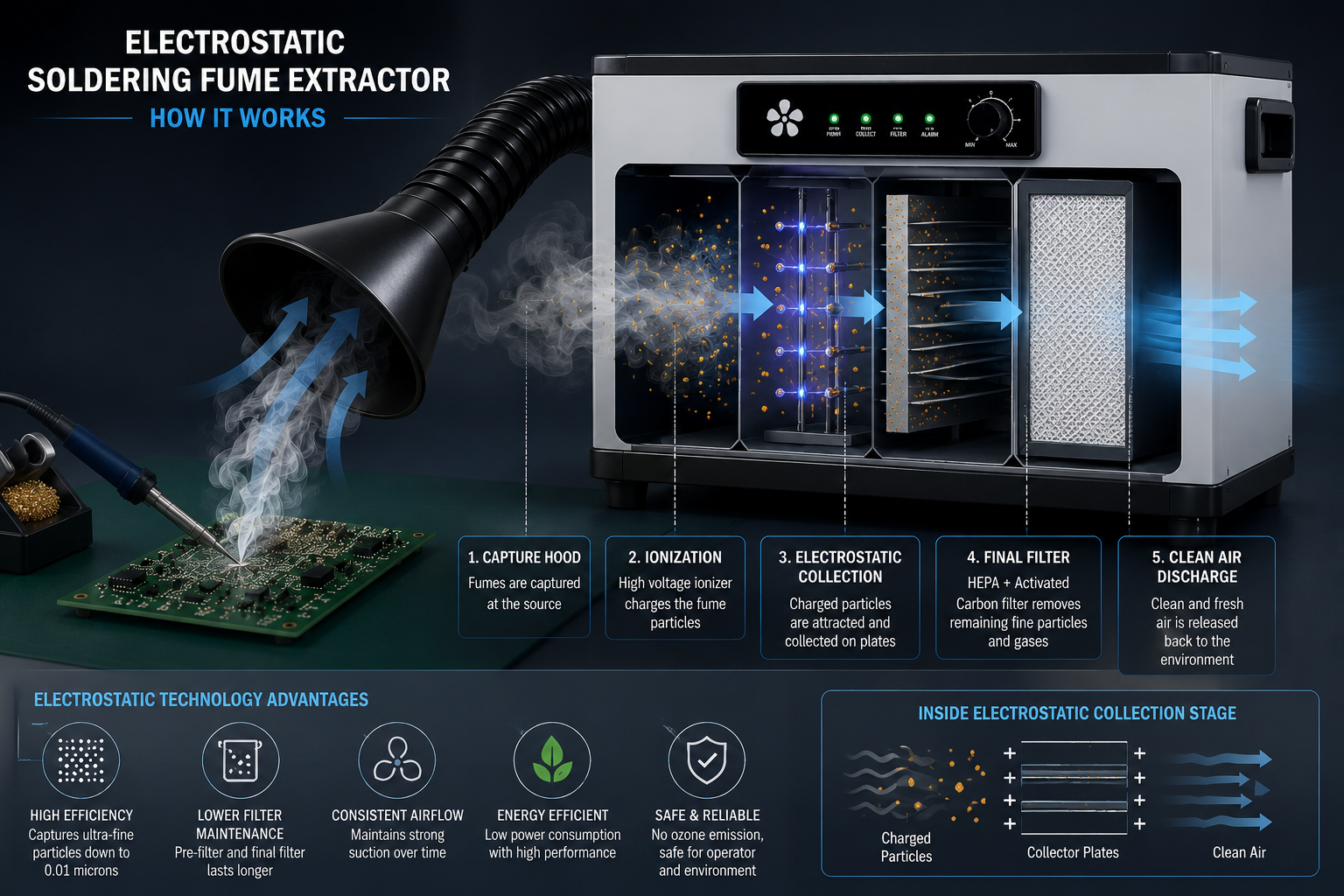

Technical Explanation: How Soldering Fume Extractors Work

Step 1: Source Capture

The extraction nozzle or hood is positioned close to the soldering point.

Typical Position

1. 50–150 mm from the source
2. Aligned with rising fumes

This allows fumes to be captured before dispersion.

Step 2: Airflow Generation

A blower or fan generates airflow that pulls fumes into the extraction system.

Key Requirements

1. Stable suction
2. Low-noise operation
3. Consistent airflow at workstation level

Step 3: Contaminant Transport

Captured fumes move through hoses or ducting into the filtration unit.

Important Factors

1. Smooth airflow path
2. Minimal pressure losses
3. Proper airflow balancing

Step 4: Filtration Process

Modern electronics fume extraction systems usually use multi-stage filtration.

Typical Filtration Stages

1. Pre-filter for larger particles
2. HEPA filter for fine particulate matter
3. Activated carbon filter for VOCs and odors

Activated carbon filters are essential for flux vapor control.

Step 5: Clean Air Discharge

After filtration:

1. Clean air is discharged safely
2. Or recirculated into the workspace (depending on filtration quality)

Components of a Solder Smoke Extractor

Component	Function
Extraction Hood / Nozzle	Captures fumes at source
Flexible Arm / Hose	Directs airflow
Blower / Fan	Generates suction
HEPA Filter	Removes fine particulate
Activated Carbon Filter	Removes VOCs and odors
Housing Unit	Contains filtration system

Practical Industrial Applications

PCB Assembly Lines

1. Multiple soldering stations
2. Continuous operation
3. Compact extraction systems used

Electronics Manufacturing

1. Precision assembly environments
2. Need for quiet operation and clean air

Rework Stations

1. Flexible extraction nozzles
2. Portable systems commonly used

Laboratories and R&D

1. Small-scale soldering operations
2. Benchtop extraction units preferred

Expert Insight

From Powertech’s experience, one of the most common issues in soldering ventilation is incorrect nozzle placement.

Key observations:

1. Even high-efficiency filters fail if fumes are not captured effectively at the source
2. Operators often position extraction nozzles too far from the soldering point
3. Activated carbon filtration is critical for controlling odor and VOC exposure

In several electronics manufacturing installations, optimizing airflow direction and nozzle placement improved overall extraction performance significantly without increasing fan capacity.
