How to Fix Welding Fume Extraction Problems in Workshops

Introduction

Many industrial workshops invest in fume extraction systems but still struggle with poor air quality, visible smoke, and inconsistent system performance. These issues are typically not due to the absence of equipment, but rather improper system design, incorrect usage, or lack of maintenance. As a result, common welding fume extraction problems persist despite the presence of ventilation systems.

Fixing these issues requires a structured engineering approach that focuses on source capture, airflow optimization, and system configuration. Simply increasing airflow or upgrading equipment without addressing the root cause often leads to inefficient results.

A well-designed strategy to fix welding fume extraction problems involves improving welding air pollution control, correcting design flaws, and implementing proper welding ventilation solutions. Based on over 30 years of experience, Powertech has successfully optimized systems across fabrication shops, automotive facilities, and heavy engineering environments by focusing on practical, application-specific improvements.

Key Takeaways

  • Most welding fume extraction problems can be resolved through proper system optimization rather than replacement.
  • Improving poor welding ventilation requires correct hood positioning and airflow balancing.
  • Addressing fume extraction system design mistakes significantly enhances performance.
  • Regular monitoring and maintenance are critical for effective welding air pollution control.

The Problem: Persistent Fume Extraction Issues

Workshops often experience recurring ventilation issues even after installing extraction systems.

Common Causes

  • Incorrect positioning of extraction arms
  • Insufficient airflow at the source
  • Poor duct design and airflow imbalance
  • Use of undersized or mismatched systems
  • Lack of maintenance and filter clogging

Workplace Impact

  • Smoke accumulation in work areas
  • Reduced visibility and operator comfort
  • Increased contamination of equipment
  • Lower productivity due to poor working conditions

Safety Risks

Exposure to welding fumes poses significant health concerns.
 According to the Occupational Safety and Health Administration (OSHA), welding fumes may contain toxic substances that can affect the respiratory and nervous systems.

The National Institute for Occupational Safety and Health (NIOSH) states that prolonged exposure to welding fumes can lead to lung function impairment and other occupational health issues.

Technical Explanation: How to Fix Welding Fume Extraction Problems

Step 1: Optimize Hood Positioning

Position the extraction arm or hood closer to the welding arc.

  • Ideal distance: 150–300 mm
  • Align airflow with fume direction
  • Avoid placing the hood behind the welder

This alone can significantly improve capture efficiency.

Step 2: Improve Airflow and Capture Velocity

Ensure adequate airflow at the point of extraction.

  • Increase airflow where necessary
  • Maintain consistent suction across all stations
  • Verify capture velocity (0.5–1.5 m/s)

Increasing airflow without proper positioning is ineffective.

Step 3: Correct Duct Design Issues

Optimize ducting to reduce pressure losses.

  • Minimize sharp bends
  • Maintain proper duct velocity (10–15 m/s)
  • Balance airflow across all branches

Poor duct design is a major cause of uneven extraction.

Step 4: Match System Type to Application

Use the correct system for the workload.

  • Portable systems for flexible, low-load applications
  • Centralized systems for multiple stations
  • Hybrid setups for mixed environments

Incorrect system selection leads to persistent performance issues.

Step 5: Maintain Filters and System Components

Regular maintenance ensures consistent performance.

  • Monitor pressure drop across filters
  • Replace clogged filters promptly
  • Inspect fans and ducting regularly

Neglecting maintenance reduces system efficiency significantly.

Key Performance Parameters for Effective Welding Ventilation Solutions

Parameter

Recommended Range

Remarks

Capture distance

150 – 300 mm

Critical for source capture

Capture velocity

0.5 – 1.5 m/s

Ensures effective suction

Airflow per arm

800 – 1500 m³/hr

Based on welding intensity

Duct velocity

10 – 15 m/s

Prevents particle settling

Filter efficiency

Up to 99%

Multi-stage filtration

Practical Industrial Applications

Fabrication Workshops

Common issues:

  • Poor positioning of extraction arms
  • Variable workflows

Fix:

  • Use flexible extraction arms
  • Train operators on correct positioning

Automotive Workshops

Common issues:

  • Uneven airflow in centralized systems

Fix:

  • Balance duct networks
  • Integrate extraction into robotic cells

Maintenance and Repair Workshops

Common issues:

  • Incorrect use of portable systems

Fix:

  • Ensure proper placement
  • Select adequate capacity units

Heavy Engineering Facilities

Common issues:

  • High fume loads exceeding system capacity

Fix:

  • Upgrade system capacity
  • Optimize airflow distribution

Expert Insight

From Powertech’s experience across multiple industries, the most effective improvements often come from simple corrections rather than major system upgrades.

In several workshop installations, repositioning extraction arms and balancing airflow has improved system performance by over 30% without increasing equipment capacity.

Key practical lessons:

  • Source capture is more important than airflow volume
  • System design must match real-world usage
  • Regular performance checks are essential

Workshops that treat fume extraction as an engineering system rather than a standalone product achieve significantly better results.

Frequently Asked Questions

How can welding fume extraction problems be fixed?

By optimizing hood positioning, improving airflow, correcting duct design, and maintaining system components.

Why does poor welding ventilation persist even after installing systems?

Because systems are often incorrectly designed, positioned, or maintained.

Is increasing airflow enough to solve fume extraction issues?

No. Proper positioning and system design are equally important.

Can existing systems be improved without replacement?

Yes. Most issues can be resolved through optimization and minor modifications.

How often should welding ventilation systems be checked?

Regular inspections and monitoring of airflow and filter conditions are recommended.

Conclusion

Welding fume extraction systems are essential for maintaining safe and efficient workshop environments, but many facilities continue to face performance issues due to design and operational shortcomings.

Fixing these welding fume extraction problems requires a structured approach that focuses on source capture, airflow optimization, and proper system configuration. By addressing poor welding ventilation and correcting fume extraction system design mistakes, workshops can significantly improve air quality and operational efficiency.With decades of experience in welding air pollution control, Powertech emphasizes the importance of practical, engineering-driven solutions that are tailored to real-world workshop conditions, ensuring reliable and long-term performance.

poor welding ventilation with ineffective fume extraction system in workshop
Categories Fumekiller, Powertech pollution control, Welding fume extractor Author Philip Thomas

Common Welding Fume Extraction Problems in Workshops

Introduction

Welding operations in industrial workshops generate fumes that contain fine particulate matter and hazardous gases. These fumes, if not effectively controlled, can accumulate in the workspace and expose workers to unsafe conditions. While many workshops install extraction systems, a significant number still experience poor performance due to design flaws, incorrect usage, or inadequate maintenance.

The issue is not always the absence of equipment—but the presence of improperly designed or poorly implemented systems. As a result, facilities continue to face welding fume extraction problems despite investing in ventilation solutions.

Addressing these challenges requires a deeper understanding of system design, airflow dynamics, and real-world operating conditions. With over 30 years of experience, Powertech has identified recurring issues across workshops where welding air pollution control systems fail to deliver expected performance. This article outlines the most common problems and how they can be addressed effectively.



Key Takeaways

  • Most welding fume extraction problems arise from poor system design and incorrect usage.
  • Poor welding ventilation is often caused by inadequate airflow and improper hood positioning.
  • System design mistakes significantly reduce the efficiency of fume extraction systems.
  • Regular monitoring and optimization are essential for effective welding air pollution control.



The Problem: Why Welding Fume Extraction Systems Fail

Even when systems are installed, workshops often struggle with ineffective fume control.

Causes

  • Incorrect system sizing and airflow calculation
  • Improper placement of extraction arms or hoods
  • Poor duct design leading to pressure losses
  • Lack of maintenance and clogged filters
  • Use of general ventilation instead of source capture

Workplace Impact

  • Visible smoke accumulation
  • Reduced visibility during welding
  • Worker discomfort and fatigue
  • Contamination of equipment and surfaces

Safety Risks

Exposure to welding fumes can have serious health implications.
According to the Occupational Safety and Health Administration (OSHA), welding fumes may contain toxic metals such as manganese and chromium that can affect respiratory and neurological health.

The World Health Organization (WHO) highlights that prolonged exposure to airborne particulate matter can lead to chronic respiratory diseases.

These risks emphasize the importance of addressing poor welding ventilation effectively.



Technical Explanation: Common Design and Operational Issues

1. Incorrect Hood Positioning

One of the most frequent issues is placing the extraction hood too far from the welding arc.

  • Reduces capture efficiency
  • Allows fumes to enter the breathing zone



2. Insufficient Airflow

Inadequate airflow is a major contributor to welding fume extraction problems.

  • Low capture velocity
  • Poor suction at the source
  • Inconsistent performance across stations



3. Poor Duct Design

Improper ducting can lead to pressure losses and uneven airflow.

  • Sharp bends increase resistance
  • Long duct runs reduce efficiency
  • Lack of balancing leads to uneven extraction



4. Incorrect System Selection

Using the wrong type of system for the application results in poor performance.

  • Portable units used for high-load applications
  • Undersized centralized systems
  • Lack of scalability



5. Lack of Maintenance

Filters and system components degrade over time.

  • Clogged filters reduce airflow
  • Increased energy consumption
  • Reduced system efficiency



Key Design Parameters for Effective Welding Air Pollution Control

Parameter

Recommended Range

Remarks

Capture distance

150 – 300 mm

Critical for source capture

Capture velocity

0.5 – 1.5 m/s

Depends on welding process

Airflow rate

800 – 1500 m³/hr per arm

Varies with application

Duct velocity

10 – 15 m/s

Prevents particle settling

Filter efficiency

Up to 99%

Multi-stage filtration



Practical Industrial Applications

Fabrication Workshops

Fabrication shops often face challenges due to flexible layouts.

  • Frequent repositioning of extraction arms
  • Variable workloads
  • Need for adaptable systems

Automotive Workshops

Automotive environments require consistent airflow across multiple stations.

  • Centralized systems with proper balancing
  • Integrated extraction in welding cells

Maintenance and Repair Workshops

These environments rely on portable systems.

  • High flexibility required
  • Risk of incorrect positioning

Heavy Engineering Workshops

Heavy welding applications demand high-capacity systems.

  • Robust duct design
  • High airflow requirements



Expert Insight

Based on Powertech’s experience across industrial workshops, the most common issue is not equipment failure but incorrect system implementation.

In many cases, workshops install high-quality extraction systems but fail to achieve expected performance due to poor design or setup. For example, increasing airflow alone does not improve efficiency if the hood is incorrectly positioned.

Practical recommendations:

  • Focus on source capture rather than increasing airflow
  • Ensure proper duct design and balancing
  • Conduct regular performance checks

In several installations, minor design corrections have significantly improved system efficiency without requiring major upgrades.

Frequently Asked Questions

What are the most common welding fume extraction problems?

Common issues include poor hood positioning, insufficient airflow, poor duct design, and lack of maintenance.

Why does poor welding ventilation occur?

It is usually caused by incorrect system design, inadequate airflow, or improper use of extraction equipment.

How can welding fume extraction efficiency be improved?

– Position extraction arms closer to the source
– Optimize airflow
– Maintain filters regularly

Can duct design affect system performance?

Yes, improper duct design can lead to pressure losses and uneven airflow distribution.

How often should systems be maintained?

Regular inspections and filter monitoring should be conducted to ensure consistent performance.

Conclusion

Welding fume extraction systems are essential for maintaining safe and efficient workshop environments. However, simply installing a system is not enough. Many workshops continue to face welding fume extraction problems due to poor design, incorrect usage, and lack of maintenance.

Effective welding air pollution control requires a combination of proper system selection, optimized design, and regular monitoring. By addressing common issues such as poor welding ventilation and system design mistakes, industries can significantly improve air quality and worker safety.

With decades of experience in industrial air pollution control, Powertech emphasizes the importance of engineering-driven solutions that are tailored to real-world workshop conditions, ensuring reliable and efficient fume extraction performance.

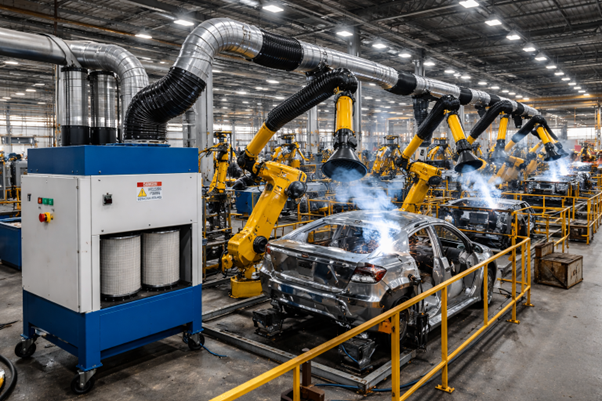

welding fume extraction system in automotive manufacturing plant capturing fumes at source
Categories Air Pollution Control, Fumekiller, Powertech pollution control, Welding fume extractor Author Philip Thomas

Welding Fume Extraction in the Automotive Industry

Introduction

Automotive manufacturing is one of the most welding-intensive industries, involving processes such as robotic spot welding, MIG welding, and arc welding across body shops, chassis assembly lines, and component fabrication units. These processes generate large volumes of welding fumes containing fine metal particulates and gases, which can quickly accumulate in enclosed production environments.

Unlike small fabrication shops, automotive plants operate at high production speeds with multiple welding stations functioning simultaneously. Without proper control, fumes can spread across large shop floors, affecting air quality, worker safety, and equipment performance.

A well-engineered welding fume extraction automotive industry solution is essential to capture contaminants at the source and maintain a safe working environment. By implementing effective automotive welding ventilation and advanced welding pollution control systems, manufacturers can ensure compliance with safety standards while maintaining production efficiency.

With over 30 years of experience, Powertech has worked with manufacturing environments where high-volume welding requires robust and scalable air pollution control solutions tailored to industrial demands.



Key Takeaways

  • Welding fume extraction automotive industry solutions must handle high-volume, continuous welding operations.
  • Source capture combined with centralized systems ensures effective automotive welding ventilation.
  • Robotic welding cells require specialized extraction designs for consistent performance.
  • Proper system design improves air quality, worker safety, and production efficiency.



The Problem: High-Volume Welding in Automotive Plants

Automotive manufacturing environments involve continuous welding across multiple stations, often within enclosed or semi-enclosed areas.

Causes

  • High-density welding operations across production lines
  • Continuous robotic welding processes
  • Enclosed welding cells with limited natural ventilation
  • Large-scale production layouts
  • Inadequate airflow balancing in centralized systems

Workplace Impact

  • Accumulation of fumes across large shop floors
  • Reduced visibility in welding zones
  • Contamination of equipment and surfaces
  • Increased maintenance requirements

Safety Risks

Welding fumes in automotive plants can contain hazardous metals and compounds.
According to the Occupational Safety and Health Administration (OSHA), exposure to welding fumes may lead to respiratory issues and long-term health effects.

The World Health Organization (WHO) states that prolonged exposure to airborne particulate matter can result in chronic respiratory diseases and reduced lung function.

Given the scale of operations, effective welding pollution control is critical in automotive manufacturing.



Technical Explanation: How Welding Fume Extraction Works in Automotive Manufacturing

A welding fume extraction automotive industry system is designed to handle large volumes of contaminants efficiently.

Step 1: Source Capture

Extraction hoods or enclosures are integrated into robotic welding cells.

  • Captures fumes directly at the welding arc
  • Prevents dispersion into surrounding areas

Step 2: Airflow Generation

High-capacity fans generate strong airflow.

  • Ensures consistent capture across multiple stations
  • Maintains proper ventilation across large areas

Step 3: Air Conveyance

Ducting networks transport contaminated air to centralized systems.

  • Requires precise engineering to balance airflow
  • Minimizes pressure losses

Step 4: Filtration

Air passes through industrial filtration systems:

  • Cartridge filters for fine particulate removal
  • High-efficiency filters for critical applications

Step 5: Clean Air Discharge

Filtered air is either:

  • Recirculated within the facility
  • Or discharged externally in compliance with standards



Typical Design Parameters in Automotive Welding Ventilation

Parameter

Recommended Range

Remarks

Airflow per station

1000 – 2500 m³/hr

Depends on welding intensity

Capture velocity

0.8 – 1.5 m/s

Higher for robotic welding

Duct velocity

10 – 15 m/s

Prevents particle settling

Static pressure

1200 – 2000 Pa

For large centralized systems

Filter efficiency

Up to 99%

Multi-stage filtration

Proper system design is essential for effective industrial welding fume extractor performance.



Practical Industrial Applications

Automotive Body Shops

Body shops use robotic welding cells for assembling vehicle frames.

  • Enclosed systems with integrated extraction
  • High-capacity centralized systems
  • Continuous operation

Chassis Manufacturing

Chassis fabrication involves heavy welding operations.

  • Combination of local extraction and centralized systems
  • High airflow requirements

Component Manufacturing

Smaller components are welded in dedicated stations.

  • Local extraction arms
  • Flexible ventilation systems

Assembly Lines

Final assembly areas may include spot welding and minor welding operations.

  • Localized extraction systems
  • Supplementary ventilation

Expert Insight

Based on Powertech’s experience in industrial air pollution control, automotive plants often face challenges related to airflow balancing in centralized systems.

A common issue is uneven extraction across multiple stations, where some areas receive adequate airflow while others remain under-ventilated. This is typically due to poor duct design or lack of system optimization.

Practical recommendations include:

  • Design ducting networks with proper balancing
  • Integrate extraction into robotic cells
  • Regularly monitor airflow performance

In several automotive installations, optimizing airflow distribution has significantly improved system efficiency without increasing energy consumption.

Frequently Asked Questions



Why is welding fume extraction important in automotive manufacturing?

It prevents the accumulation of hazardous fumes, ensuring worker safety and maintaining air quality in high-production environments.

What type of system is used in automotive welding ventilation?

Centralized systems combined with localized extraction are commonly used.

How are robotic welding cells ventilated?

Extraction hoods or enclosures are integrated into the cells to capture fumes directly at the source.

Can welding fumes affect equipment?

Yes, fumes can settle on machinery, leading to contamination and increased maintenance.

What factors affect system performance?

– Airflow distribution
– Duct design
– Filter efficiency
– System maintenance

Conclusion

Automotive manufacturing presents unique challenges for welding fume control due to high production volumes and continuous operations. General ventilation alone is insufficient to manage airborne contaminants effectively.A properly designed welding fume extraction automotive industry system ensures efficient source capture, improves air quality, and protects worker health. By implementing advanced automotive welding ventilation and reliable welding pollution control solutions, manufacturers can achieve safer, cleaner, and more efficient production environments.

With decades of experience, Powertech continues to deliver customized solutions that address the complex requirements of automotive welding operations, ensuring optimal performance and long-term reliability.

welding fume extractor for fabrication shops capturing fumes at source
Categories Powertech pollution control, Welding fume extractor Author Philip Thomas

Welding Fume Extraction for Fabrication Shops

Introduction

Fabrication shops rely heavily on welding processes such as MIG, TIG, and arc welding to manufacture structural components, assemblies, and custom metal products. While these processes are essential to production, they generate significant amounts of welding fumes consisting of fine metal particles and gases. In enclosed or semi-enclosed fabrication environments, these contaminants can quickly accumulate, affecting air quality and worker safety.

Unlike large automated plants, fabrication shops often operate with flexible layouts, multiple workstations, and varying workloads. This makes fume control more complex and requires carefully engineered solutions rather than generic ventilation approaches.

A properly designed welding fume extractor for fabrication shops ensures that fumes are captured at the source, preventing them from spreading into the workspace. By implementing effective fabrication shop ventilation strategies and using appropriate fume extraction system for welding, operators can maintain safe working conditions, improve productivity, and meet regulatory requirements.



Key Takeaways

  • A welding fume extractor for fabrication shops must be flexible to handle varying layouts and workloads.
  • Source capture is more effective than general ventilation in controlling welding fumes.
  • Proper airflow and hood positioning are critical for effective industrial welding extraction.
  • Customized system design improves both safety and operational efficiency.



The Problem: Fume Accumulation in Fabrication Shops

Fabrication shops often operate in dynamic environments where multiple welding activities occur simultaneously. Without proper extraction, fumes accumulate quickly.

Causes

  • Multiple welding stations operating in confined areas
  • Frequent movement of workpieces and operators
  • Lack of localized extraction systems
  • Inadequate airflow distribution
  • Use of general ventilation instead of source capture

Workplace Impact

  • Reduced visibility due to smoke buildup
  • Discomfort for workers
  • Contamination of nearby equipment
  • Increased maintenance requirements

Safety Risks

Welding fumes can contain hazardous metals and gases.
According to the Occupational Safety and Health Administration (OSHA), exposure to welding fumes may lead to respiratory irritation, metal fume fever, and long-term health effects.

The National Institute for Occupational Safety and Health (NIOSH) also highlights that prolonged exposure can affect lung function and overall worker health.

These risks make it essential to implement an effective fume extraction system for welding in fabrication environments.

Technical Explanation: How Welding Fume Extraction Works in Fabrication Shops

A welding fume extractor for fabrication shops is designed to capture fumes directly at the source and remove contaminants efficiently.

Step 1: Source Capture

Extraction arms or hoods are positioned close to the welding arc.

  • Typically within 150–300 mm
  • Prevents fumes from entering the breathing zone

Step 2: Airflow Generation

A fan creates negative pressure to draw fumes into the system.

  • Ensures consistent capture
  • Maintains airflow direction toward the extractor

Step 3: Air Conveyance

Captured air is transported through ducts or extraction arms.

  • Smooth duct design reduces pressure loss
  • Balanced airflow improves system efficiency

Step 4: Filtration

Air passes through multiple filtration stages:

  • Pre-filters for larger particles
  • Cartridge filters for fine particulates
  • Optional HEPA filters for high-efficiency capture

Step 5: Clean Air Discharge

Filtered air is either recirculated or exhausted safely.



Typical Design Parameters for Fabrication Shop Ventilation

Parameter

Recommended Range

Remarks

Capture distance

150 – 300 mm

Critical for efficiency

Airflow per arm

800 – 1500 m³/hr

Depends on welding process

Capture velocity

0.5 – 1.5 m/s

Ensures effective capture

Static pressure

800 – 1500 Pa

Based on duct design

Filter efficiency

Up to 99%

Multi-stage filtration

Proper design ensures consistent performance of the welding fume extractor for fabrication shops.

Practical Industrial Applications

Small Fabrication Shops

Small shops typically use portable extraction units.

  • Flexible positioning
  • Suitable for low to medium workloads
  • Easy installation

Medium Fabrication Units

Medium-scale facilities often use a combination of portable units and fixed extraction arms.

  • Improved coverage
  • Better airflow control
  • Adaptable to changing layouts

Large Fabrication Facilities

Large facilities may implement centralized systems.

  • Handles multiple stations
  • Ensures uniform air quality
  • Suitable for continuous operations

Custom Fabrication Environments

Custom fabrication setups require tailored solutions.

  • Variable workpiece sizes
  • Irregular layouts
  • Need for flexible extraction systems



Expert Insight

With over 30 years of experience, Powertech has observed that fabrication shops often underestimate the importance of system design. Many rely on general ventilation or undersized extraction units, which fail to capture fumes effectively.

In several fabrication environments, simply repositioning extraction arms and optimizing airflow has resulted in significant improvements in air quality without increasing system capacity.

Key practical recommendations:

  • Prioritize source capture over dilution
  • Ensure proper hood positioning
  • Design systems based on actual workload, not assumptions

In real-world installations, customized industrial welding extraction solutions consistently outperform standard setups.

What is the best welding fume extractor for fabrication shops?

The best system depends on shop size and workload. Portable units are ideal for small shops, while centralized systems suit larger operations.

Why is source capture important in fabrication shops?

It prevents fumes from spreading into the workspace, improving air quality and worker safety.

Can one system handle multiple welding stations?

Yes, centralized systems can connect multiple stations through ducting.

How often should filters be replaced?

Filter replacement depends on usage and dust load. Monitoring pressure drop is the best indicator.

What affects the performance of a fume extraction system for welding?

– Hood positioning
– Airflow rate
– Filter condition
– System design

Conclusion

Fabrication shops present unique challenges for welding fume control due to their dynamic layouts and varying workloads. General ventilation alone is not sufficient to manage airborne contaminants effectively.

A well-designed welding fume extractor ensures efficient source capture, improves air quality, and protects worker health. By implementing tailored fabrication shop ventilation strategies and using the right fume extraction system for welding, industries can achieve safer and more efficient operations.

With decades of experience in designing industrial air pollution control systems, Powertech continues to emphasize the importance of customized engineering solutions for effective welding fume extraction in fabrication environments.

local exhaust ventilation welding system capturing fumes at source in industrial workshop
Categories Air Pollution Control, Powertech pollution control, Welding fume extractor Author poweradmin

Local Exhaust Ventilation Welding Systems for Fume Control

Local Exhaust Ventilation Systems for Welding Applications

Introduction

Welding processes generate a complex mix of airborne contaminants, including metal fumes, gases, and ultrafine particles. These contaminants are produced directly at the welding arc and can quickly disperse into the surrounding workspace if not effectively controlled. In industrial environments where welding is performed continuously, this leads to poor air quality, reduced visibility, and increased exposure risks for workers.

General ventilation systems are often insufficient because they dilute contaminants rather than remove them at the source. This is where local exhaust ventilation welding systems play a critical role. By capturing fumes directly at the point of generation, these systems prevent contaminants from entering the welder’s breathing zone.

A properly engineered welding ventilation system using source capture principles ensures efficient removal of airborne pollutants. With over three decades of experience, Powertech has implemented welding fume extraction system solutions across fabrication shops, automotive plants, and precision manufacturing environments, where effective source capture is essential for maintaining safe and compliant operations.



Key Takeaways

  • Local exhaust ventilation welding captures fumes at the source, making it more effective than general ventilation.
  • Proper hood positioning and airflow design are critical for efficient source capture welding fumes.
  • A well-designed welding ventilation system improves worker safety and regulatory compliance.
  • System performance depends on airflow, capture velocity, and layout optimization.



The Problem: Ineffective Control of Welding Fumes

Welding fumes are generated instantly during metal fusion processes and consist of fine particles that remain suspended in air.

Causes

  • Lack of localized extraction systems
  • Over-reliance on general ventilation
  • Improper placement of extraction hoods
  • Insufficient airflow at the source
  • Multiple welding operations in confined spaces

Workplace Impact

  • Accumulation of visible smoke
  • Reduced visibility in welding areas
  • Contamination of nearby equipment
  • Increased maintenance requirements

Safety Risks

Exposure to welding fumes poses significant health risks.
According to the Occupational Safety and Health Administration (OSHA), welding fumes can contain hazardous metals such as manganese and chromium that may affect the respiratory and nervous systems.

The World Health Organization (WHO) also highlights that prolonged exposure to airborne particulate matter can lead to chronic respiratory diseases and reduced lung function.

These risks underline the importance of implementing local exhaust ventilation welding systems for effective fume control.



Technical Explanation: How Local Exhaust Ventilation Works

A local exhaust ventilation welding system is designed to capture and remove contaminants at or near the source of generation.

Step 1: Fume Capture at Source

Extraction hoods or arms are positioned close to the welding arc (typically within 150–300 mm).

  • Ensures immediate capture of fumes
  • Prevents dispersion into the workspace

Step 2: Airflow Generation

A fan or blower creates negative pressure within the system.

  • Draws contaminated air into the hood
  • Maintains consistent airflow

Step 3: Air Conveyance

Captured fumes are transported through ducts or extraction arms.

  • Smooth duct design minimizes pressure loss
  • Balanced airflow ensures uniform performance

Step 4: Filtration

Air passes through filtration stages:

  • Pre-filters remove larger particles
  • Cartridge filters capture fine particulates
  • Optional HEPA filters for ultrafine particles

Step 5: Clean Air Discharge

Filtered air is either:

  • Recirculated into the workspace
  • Or discharged outside the facility



Key Design Parameters for Local Exhaust Ventilation

Parameter

Recommended Range

Remarks

Capture distance

150 – 300 mm

Closer improves efficiency

Capture velocity

0.5 – 1.5 m/s

Depends on welding process

Airflow rate

800 – 1500 m³/hr per arm

Varies with hood size

Static pressure

800 – 1500 Pa

Depends on duct design

Filter efficiency

Up to 99%

Multi-stage filtration

Proper engineering design ensures that the welding fume extraction system operates efficiently under varying conditions.



Practical Industrial Applications

Automotive Manufacturing

Automotive plants rely heavily on robotic welding systems. Local exhaust ventilation is integrated into enclosures and extraction hoods to ensure continuous fume removal.

Fabrication Shops

Fabrication shops commonly use flexible extraction arms as part of a welding ventilation system.

  • Allows repositioning based on workpiece
  • Ensures effective source capture welding fumes

Electronics Manufacturing

Precision welding and soldering operations require compact extraction systems to capture fine fumes without disrupting sensitive processes.

CNC and Equipment Manufacturing

In CNC environments, localized extraction prevents fumes from contaminating precision machining operations.



Expert Insight

In many industrial installations, the effectiveness of local exhaust ventilation welding systems is compromised not by equipment limitations but by improper positioning and design.

Based on Powertech’s experience across multiple industries, one of the most common issues is placing extraction hoods too far from the welding arc. Even a small increase in distance can significantly reduce capture efficiency.

Key practical recommendations include:

  • Maintain hood distance within 200 mm wherever possible
  • Avoid cross drafts that interfere with airflow
  • Regularly monitor airflow and filter condition

In several installations, optimizing hood placement alone has improved system efficiency without increasing airflow capacity.

Frequently Asked Questions

What is local exhaust ventilation in welding?

It is a system designed to capture welding fumes directly at the source before they disperse into the workplace.

Why is local exhaust ventilation better than general ventilation?

It removes contaminants at the source rather than diluting them, making it significantly more effective.

What affects the performance of a welding ventilation system?

Key factors include:
– Hood positioning
– Airflow rate
– Duct design
– Filter condition

Can local exhaust ventilation be used for multiple welding stations?

Yes, centralized systems can connect multiple extraction points to a single filtration unit.

How close should the extraction hood be to the welding arc?

Typically within 150–300 mm for effective fume capture.

Conclusion

Welding fumes present a significant challenge in industrial environments, particularly where operations are continuous and high-intensity. General ventilation alone cannot provide adequate protection against airborne contaminants.

A properly designed local exhaust ventilation welding system ensures effective capture of fumes at the source, protecting worker health and maintaining air quality. By integrating well-engineered welding ventilation system solutions and optimized welding fume extraction system designs, industries can achieve safer and more efficient operations.

With decades of experience in industrial air pollution control, Powertech continues to emphasize the importance of application-specific engineering and source capture strategies in delivering reliable and effective ventilation solutions.

1 2 3 4 … 10
