Technician soldering a PCB while a fume extractor hood captures rising flux fumes at the workstation.
Categories Air Pollution Control, Fumekiller, Powertech pollution control, Soldering fume extractor Author poweradmin

How Poor Soldering Fume Control Affects PCB Quality

Why Fume Control Matters in PCB Assembly

Soldering is a precision process. Even small contamination affects joint quality and inspection accuracy. During soldering, flux fumes rise and spread across the workstation. If these fumes remain uncontrolled, they affect both workers and the PCB itself.

Poor fume control increases defects, inspection failures, and rework rates.

What Happens When Soldering Fumes Are Not Controlled

Residue Build-Up on PCB Surfaces

Flux fumes contain fine particles. These particles settle on boards, tools, and nearby components. This creates surface contamination.

Reduced Visibility During Soldering

Smoke around the solder joint reduces operator visibility. Poor visibility leads to uneven joints and missed defects.

Inconsistent Solder Joints

When fumes linger, operators adjust posture or reposition parts to avoid smoke. This affects hand stability and joint consistency.

Impact on PCB Quality

Cold Solder Joints

Limited visibility and unstable posture increase the risk of incomplete joints.

Bridging and Excess Solder

Impaired vision leads to excess solder or unintended connections between pads.

Inspection Delays

Surface haze from settled fumes affects visual inspection accuracy.

How Poor Fume Control Increases Rework Rates

Rework often results from avoidable defects. When soldering fumes are not captured at the source:

  • Defects increase
  • Inspection time rises
  • Cleaning effort increases
  • Production slows down

Repeated rework reduces overall efficiency and increases labor cost.

Role of a Soldering Fume Extractor

Source-Level Capture

A soldering fume extractor removes fumes directly at the soldering point. This prevents residue from settling on the PCB.

Improved Visibility

Clear air allows operators to see the joint clearly. This improves precision.

Cleaner Work Surface

Less airborne contamination means fewer cleaning cycles.

A reliable soldering fume extractor manufacturer in Bangalore designs systems suited for high-density PCB assembly lines.

Q&A: Soldering Fumes and PCB Quality

Q1: Can soldering fumes directly damage PCBs?
Fumes do not damage boards instantly, but residue increases contamination and rework risk.

Q2: Does room ventilation solve the issue?
No. Ventilation dilutes fumes. Extraction removes them at the source.

Q3: Can better fume control reduce inspection time?
Yes. Clear visibility improves inspection speed and accuracy.

Q4: Is fume extraction necessary for small assembly units?
Yes. Even low-volume soldering generates fumes that affect quality over time.

Conclusion

Poor soldering fume control affects more than worker comfort. It reduces PCB quality, increases defects, and raises rework rates. Flux fumes settle on boards, reduce visibility, and slow inspection.

Using a soldering fume extractor ensures clean air at the workstation. This improves joint quality, reduces rework, and supports consistent production performance.

Welder working in a compact fabrication shop with a welding fume extractor capturing fumes at the source.
Categories Air Pollution Control, Fumekiller, Powertech pollution control, Soldering fume extractor Author poweradmin

Welding Fume Extractors for Fabrication Shops with Limited Space

Why Space Constraints Create Fume Control Challenges

Many fabrication shops operate in compact areas. Welding stations sit close to each other. Material movement, storage, and assembly compete for floor space. In such setups, welding fumes spread quickly and affect nearby workers.

Limited space does not reduce fume generation. It increases the need for effective fume extraction.

Common Fume Issues in Small Fabrication Shops

High Fume Concentration

When stations are close, fumes from one welder affect others. This raises overall exposure.

Restricted Air Movement

Small shops often have low ceiling height and limited ventilation. Fumes stay trapped longer.

Obstructed Work Areas

Bulky extraction systems block movement and reduce productivity.

Key Features Needed in Space-Limited Shops

Compact Footprint

A welding fume extractor should occupy minimal floor space. Slim designs fit easily beside workstations.

Flexible Extraction Arms

Flexible arms allow precise hood placement without blocking the welder’s movement.

High Capture Efficiency at Low Airflow

Efficient systems capture fumes close to the source. This avoids the need for large ducting.

Suitable Extraction Options for Small Fabrication Shops

Portable Welding Fume Extractors

Portable units work well in tight spaces. Operators can move them between stations as needed.

Wall-Mounted Extraction Units

Wall-mounted systems free up floor space while providing effective source capture.

Twin-Arm Extractors

One unit can serve two welding stations if fume load is moderate. This reduces equipment count.

An experienced welding fume extractor manufacturer in Bangalore often recommends such configurations for space-limited shops.

Layout Tips for Better Fume Control

Keep the Hood Close

Position the hood within 150–300 mm of the weld to maximize capture.

Avoid Cross Drafts

Fans and open doors push fumes away from the hood. Control airflow direction.

Plan Station Spacing

Even small gaps between stations help reduce shared fume exposure.

Q&A: Welding Fume Extraction in Small Shops

Q1: Can one welding fume extractor serve multiple welders?
Yes, if the system supports twin arms and welding intensity is controlled.

Q2: Are portable extractors effective in small spaces?
Yes. When positioned correctly, they capture fumes efficiently.

Q3: Does limited space increase health risks?
Yes. Higher fume concentration increases exposure without proper extraction.

Q4: Who can help design compact extraction solutions?
A qualified welding fume extractor manufacturer in Bangalore can assess layout and recommend space-saving systems.

Conclusion

Limited space should not compromise worker safety. Fabrication shops with compact layouts need welding fume extractors that offer strong source capture without occupying valuable floor area.

By choosing compact designs, flexible arms, and proper positioning, small shops can maintain clean air and safe working conditions without disrupting operations.

Electronics soldering workstation with a fume extractor hood capturing soldering fumes at the PCB work area.
Categories Air Pollution Control, Fumekiller, Powertech pollution control, Soldering fume extractor Author poweradmin

Mistakes to Avoid When Selecting a Soldering Fume Extractor

Why Choosing the Right Soldering Fume Extractor Matters

Soldering fumes affect worker comfort, health, and product quality. Many facilities invest in fume extraction but still face air quality issues. In most cases, the problem is not the equipment. It is the selection process.

Avoiding common mistakes helps ensure effective fume control and long-term reliability.

1. Choosing an Extractor Based Only on Price

Why This Is a Problem

Low-cost systems often compromise on suction strength and filtration quality. These systems struggle in continuous soldering operations.

What to Do Instead

Select a fume extractor based on airflow needs, filtration efficiency, and duty cycle, not price alone.

2. Ignoring Source Capture Requirements

Common Mistake

Many systems rely on general air movement instead of capturing fumes at the soldering point.

Correct Approach

A soldering fume extractor must capture fumes directly at the source to prevent inhalation.

3. Underestimating Fume Load

Why It Happens

Facilities assume soldering produces light fumes. In reality, continuous soldering generates high fume concentration.

Impact

Undersized systems lose effectiveness quickly and require frequent intervention.

4. Selecting the Wrong Filtration Type

Filtration Matters

Different flux types produce different fumes. Inadequate filtration allows fumes to pass through or clog filters.

What to Check

Ensure the system can handle fine particles and gas components released during soldering.

An experienced soldering fume extractor manufacturer in Bangalore usually recommends filtration based on actual process conditions.

5. Overlooking Noise Levels

Why Noise Is Important

High noise levels cause discomfort during long shifts. Operators may switch off noisy systems.

Better Choice

Choose systems designed for low-noise operation without reducing suction.

6. Ignoring Maintenance and Accessibility

Hidden Issue

Systems that are hard to clean or service get neglected over time.

Best Practice

Select extractors with easy access to filters and clear maintenance procedures.

Q&A: Selecting a Soldering Fume Extractor

Q1: Can one extractor serve multiple soldering stations?
Yes, if the system supports twin arms and soldering load is moderate.

Q2: Does stronger suction always mean better performance?
No. Correct positioning matters more than excessive airflow.

Q3: Is general ventilation enough for soldering fumes?
No. Ventilation only dilutes fumes. Extraction removes them at the source.

Q4: Who should help with system selection?
A qualified soldering fume extractor manufacturer in Bangalore can assess layout and soldering intensity.

Conclusion

Selecting the wrong soldering fume extractor leads to poor air quality and operator discomfort. Common mistakes include focusing only on cost, ignoring fume load, and choosing incorrect filtration.

Avoiding these errors ensures effective fume capture, stable air quality, and a safer soldering environment.

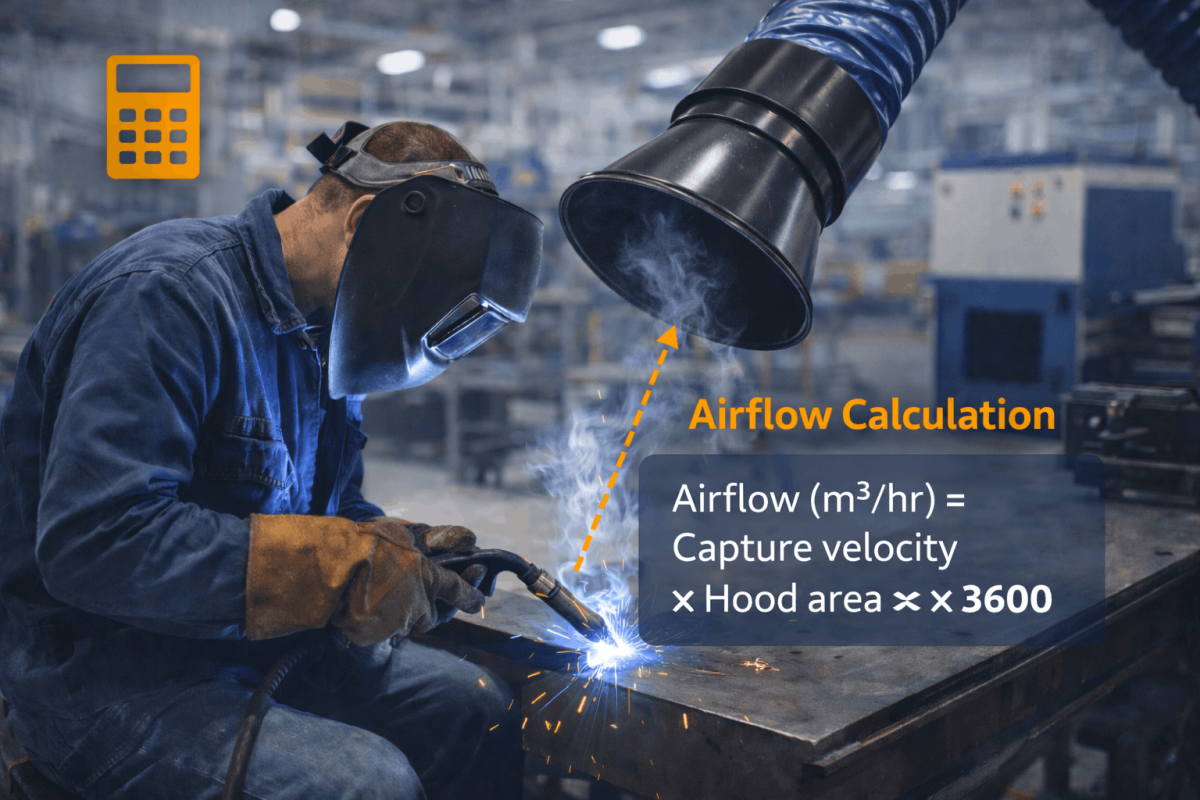

Welding fume extractor hood positioned near the weld to capture fumes during metal welding operations.
Categories Air Pollution Control, Fumekiller, Powertech pollution control, Welding fume extractor Author poweradmin

Welding Fume Extractor Sizing: How to Calculate Airflow Requirements

Why Correct Airflow Sizing Is Critical

A welding fume extractor works only when airflow matches the fume load. If airflow is too low, fumes escape into the workspace. If airflow is too high, energy use increases without added benefit.

Correct sizing ensures effective capture, stable performance, and lower operating cost.

What Determines Airflow Requirements

Type of Welding Process

Different welding processes generate different fume volumes. Higher heat input produces more fumes and needs higher airflow.

Number of Welding Stations

Each active station adds to the total airflow demand. Systems serving multiple stations must account for simultaneous operation.

Capture Distance

The farther the hood sits from the welding point, the more airflow is needed. Keeping the hood close reduces airflow demand.

Workplace Air Movement

Fans, open doors, and cross drafts push fumes away from the hood. This increases airflow requirements.

Basic Method to Estimate Airflow

  1. Decide the Capture Velocity

    Most welding applications require a capture velocity between 0.5 to 1.0 m/s at the fume source.

  2. Measure Hood Opening Area

    Calculate the open area of the suction hood in square meters.

  3. Calculate Airflow

    Use the formula:
    Airflow (m³/hr) = Capture velocity × Hood area × 3600
    This gives a basic airflow value for one welding station.

Adjustments for Real-World Conditions

Add Safety Margin

Add 20–30% extra airflow to account for losses in ducts and filters.

Account for Duct Length

Longer ducts increase resistance. This may require higher fan capacity.

Consider Simultaneous Welding

If multiple stations operate at the same time, total airflow must support all active points.

An experienced welding fume extractor manufacturer in Bangalore usually performs these calculations during system design.

Common Sizing Mistakes

Oversizing the System

Oversized systems waste energy and increase noise without improving capture.

Ignoring Hood Position

Poor positioning forces the system to compensate with higher airflow.

Assuming One Size Fits All

Each welding setup needs a specific airflow calculation.

Q&A: Welding Fume Extractor Airflow Sizing

Q1: Can I use a standard airflow value for all welders?

No. Airflow depends on welding intensity, hood size, and layout.

Q2: Does higher airflow always improve fume capture?

No. Correct hood placement is more effective than excessive airflow.

Q3: Should airflow change for portable extractors?

Yes. Portable units need proper sizing based on their working distance.

Q4: Who should calculate airflow requirements?

A qualified welding fume extractor manufacturer in Bangalore should assess airflow needs based on site conditions.


Conclusion

Correct airflow sizing is essential for welding fume extraction. It ensures fumes get captured before spreading while keeping energy use under control. Calculating airflow based on capture velocity, hood size, and layout leads to reliable performance.

A well-sized welding fume extractor protects workers, improves air quality, and supports efficient operations.

Soldering workstation with a fume extractor hood positioned near the soldering point to capture flux fumes effectively.
Categories Air Pollution Control, Fumekiller, Powertech pollution control, Soldering fume extractor Author poweradmin

Designing Safe Soldering Workstations with Proper Fume Extraction

Why Workstation Design Matters in Soldering

Soldering workstations are often compact and closely spaced. Operators work near heated solder joints for long hours. During this process, flux fumes rise directly into the breathing zone. If the workstation design ignores fume control, workers face continuous exposure.

A safe workstation combines correct layout, proper posture, and effective fume extraction.

Key Risks in Poorly Designed Soldering Workstations

Direct Fume Inhalation

Without source capture, fumes rise straight toward the operator’s face. This increases breathing discomfort and long-term health risk.

Limited Air Movement

Electronics assembly areas often restrict airflow to protect components. This allows fumes to build up quickly.

Operator Fatigue

Poor air quality leads to eye irritation, throat discomfort, and faster fatigue during shifts.

Essential Elements of a Safe Soldering Workstation

Correct Workbench Height

The bench height should allow operators to solder without leaning forward. This keeps the breathing zone stable and improves fume capture.

Clear Working Area

Avoid clutter near the soldering point. A clear area allows proper hood placement and smooth airflow.

Proper Lighting

Good lighting reduces operator movement. Less movement keeps the fume extractor positioned correctly.

Role of a Soldering Fume Extractor

Source-Level Capture

A soldering fume extractor captures fumes at the soldering point before they spread. This protects the operator and nearby stations.

Flexible Arm Positioning

Flexible arms allow the hood to stay close to the solder joint without blocking the operator’s hands or view.

Stable Air Quality

Continuous extraction keeps air quality consistent throughout the shift.

A reliable soldering fume extractor manufacturer in Bangalore designs systems that fit compact electronics workstations without affecting productivity.

Correct Placement of the Extraction Hood

Distance from the Soldering Point

Position the hood 150–200 mm from the soldering point for effective capture.

Angle of Capture

Place the hood slightly to the side or behind the solder joint. This allows fumes to flow naturally into the hood.

Avoid Blocking Operator Movement

If the hood interferes with work, operators move it away. Proper placement prevents this.

Q&A: Safe Soldering Workstation Design

Q1: Is general room ventilation enough for soldering?
No. Ventilation only dilutes fumes. Extraction removes them at the source.

Q2: Can one fume extractor serve two soldering stations?
Yes, if the system supports twin arms and soldering intensity is moderate.

Q3: Does fume extraction affect soldering quality?
No. Proper placement improves visibility and focus.

Q4: Who can help design safe soldering workstations?
An experienced soldering fume extractor manufacturer in Bangalore can design systems based on layout and production needs.

Conclusion

Safe soldering workstations require more than a table and a soldering iron. Proper layout, correct posture, and effective fume extraction protect operators from continuous exposure to flux fumes.A well-positioned soldering fume extractor keeps air clean, improves comfort, and supports consistent assembly quality over long production hours.

1 2 3 4 5 6 … 10
