Welding fume is generated whenever metals, coatings, fluxes, and other materials are heated to welding temperatures. The amount and composition of the fume can vary significantly depending on the welding process, material, consumables, production volume, and working environment.
Choosing a welding fume extractor therefore requires more than simply selecting a machine based on airflow or motor capacity. The extraction method, capture distance, number of welding stations, filtration technology, operator movement, and workshop layout all influence whether a system will provide effective welding fume extraction.
For a small fabrication shop, a portable source-capture unit may be appropriate. A production facility with several permanent welding stations may require a centralized extraction system. In some applications, an extraction arm positioned close to the arc may be more practical than a large general ventilation system.
This guide explains the key factors to consider when selecting a welding fume extractor for your workshop.
Why Choosing the Right Welding Fume Extractor Matters
Welding fumes should ideally be captured at or close to their source, before they disperse throughout the workplace.
Once fumes rise away from the welding arc and mix with the surrounding air, capturing them becomes more difficult. A system may then require substantially more airflow to control the same contaminant.
Effective welding fume extraction is therefore based on two fundamental principles:
- Capture the fume as close to the source as practical.
- Move the captured fume through an appropriately designed filtration system.
This is why simply choosing an extractor with a high airflow rating does not necessarily guarantee effective fume control.
A properly selected system should match the actual welding operation rather than relying on airflow alone.
8 Factors to Consider When Choosing a Welding Fume Extractor
1. Identify the Welding Processes Used
Start by identifying the welding processes carried out in your workshop.
Common processes include:
- MIG/MAG welding
- TIG welding
- Stick or SMAW welding
- Gas welding
- Flux-cored arc welding
- Robotic welding
- Plasma cutting and related thermal processes
Each process can produce different levels and characteristics of fume.
For example, a workshop carrying out occasional TIG welding on small components has very different extraction requirements from a fabrication facility performing continuous MIG welding on large structures.
The type of consumable, welding current, shielding gas, base material, and production rate can also influence fume generation.
Your welding fume extractor should therefore be selected after understanding the actual welding processes rather than simply specifying a standard machine for every application.
2. Consider the Material Being Welded
The material being welded is another important consideration.
Common materials include:
- Mild steel
- Stainless steel
- Aluminium
- Galvanized steel
- Painted or coated metals
- Special alloys
The base material itself can affect the composition of the welding fume. Coatings, paints, plating, oils, and surface treatments can also introduce additional contaminants during welding.
This makes material identification an important part of the extraction-system design process.
For example, welding stainless steel requires different consideration from welding untreated mild steel because the composition of the fume can differ.
Before specifying an industrial fume extractor, identify not only the metal being welded but also any coatings or treatments present on the workpiece.
3. Decide Where the Fume Should Be Captured
One of the most important decisions is the capture method.
The objective is to capture the fume before it spreads into the operator’s breathing zone or the wider workshop.
Common approaches include:

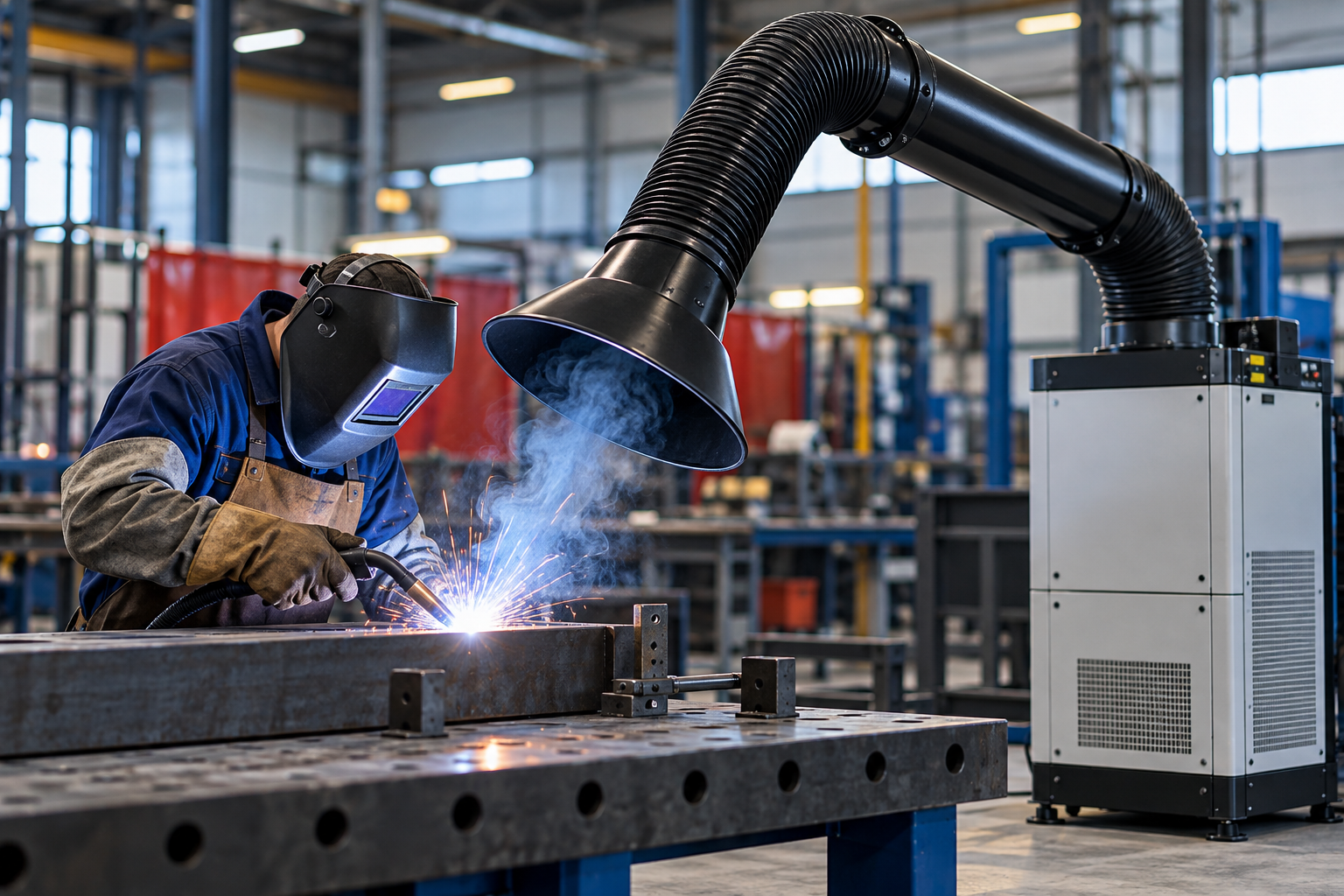

Extraction Arms
A movable extraction arm can be positioned near the welding operation.
This approach is useful where:
- Welding takes place at fixed or semi-fixed stations
- Operators need flexibility
- The workpieces vary in size
- Individual workstations can accommodate extraction arms
The hood should be positioned as close to the welding point as practical without interfering with the welding operation.
The further the hood is from the source, the greater the challenge of capturing the rising fume effectively.
Portable Extraction Units
Portable systems can be useful where welding takes place at multiple locations.
They can be moved between work areas and are particularly relevant to workshops where permanent ducting is impractical.
Centralized Extraction Systems
A centralized system can serve multiple welding stations through a common extraction network.
This can be appropriate for:
- Production facilities
- Fabrication plants
- Multiple permanent welding booths
- Workshops with several extraction points
The ductwork, fan capacity, extraction points, and number of simultaneous users must be engineered as a system.
4. Determine the Number of Welding Stations
The number of welding stations directly affects the design of the extraction system.
A workshop with one welding station does not have the same requirements as a facility with 10, 20, or more stations.
However, the number of stations alone should not determine the required extractor capacity.
You also need to establish:
- How many stations operate simultaneously?
- How long does each station operate?
- Are all welding processes the same?
- Are extraction arms used at every station?
- Is the system centralized or individual?
- Are some stations used only occasionally?
For example, a centralized system serving eight welding stations should be designed based on the expected simultaneous operating conditions rather than simply multiplying a nominal airflow figure by eight.
This is where professional system design becomes important.
5. Evaluate Operator Movement and Workpiece Size
The ideal extraction solution for a small welding bench may not work for heavy fabrication.
Consider how operators actually move around the workpiece.
Small Components
For small components at fixed workstations, a close-positioned extraction arm may provide practical source capture.
Large Fabricated Structures
For large structures, the welder may move around the workpiece continuously.
In such situations, keeping a fixed extraction hood close to every welding point can be difficult.
The system may therefore need a different configuration, such as:
- Multiple extraction points
- Movable extraction arms
- Flexible extraction arrangements
- A combination of source capture and appropriate general ventilation
The extraction system should accommodate the production process rather than forcing the production process to work around the extraction equipment.
6. Look at the Required Airflow and Static Pressure
Airflow is one of the specifications buyers commonly focus on when selecting a welding fume extractor.
However, airflow alone is not enough.
A system has to deliver the required airflow at the actual operating conditions of the extraction network.
Static pressure losses can occur because of:
- Duct length
- Duct diameter
- Bends and elbows
- Branches
- Filters
- Extraction arms
- Hoods
- Dampers
- Other components in the system
A fan rated for a particular airflow under one pressure condition may deliver considerably less airflow when connected to a restrictive duct system.
Therefore, the selection process should consider both:
Required airflow + required static pressure
rather than choosing equipment solely on the basis of the largest CFM or m³/hr number.
This becomes especially important when designing centralized welding fume extraction for multiple stations.
7. Select the Appropriate Filtration Technology
Once the fume has been captured, it needs to be treated appropriately before the cleaned air is handled according to the system design.
Different filtration technologies are available for industrial fume extraction.
The appropriate technology depends on the contaminant characteristics and application.
For example, electrostatic filtration can be used in certain welding and industrial fume applications because the particles can be electrically charged and collected on collector plates.
Powertech’s FumeKiller range uses electrostatic filtration for applications including welding and soldering fumes, with configurations also positioned for certain oil-mist applications.
The company’s published product information describes filtration performance in the range of 90–98% for applicable systems and refers to very fine particle filtration capability. These figures should be understood as product/system specifications rather than universal performance guarantees for every welding application.
For applications where additional gaseous contaminants or odours need consideration, an activated-carbon post-filter can also be incorporated into suitable configurations.
The key point is that filtration technology should be selected based on the actual contaminant and process, not simply on a headline efficiency percentage.
8. Consider Maintenance Requirements
A welding fume extractor is only useful when it continues to operate effectively.
Maintenance should therefore be considered before purchasing the system.
Ask:
- How is the filtration system cleaned?
- How frequently does it need servicing?
- How is collected contamination removed?
- How easy is it to access the filter or collector?
- Are replacement components readily available?
- How is airflow performance checked?
- What indicators show that maintenance is required?
The maintenance requirements can vary considerably between filtration technologies.
A system that appears inexpensive initially may have higher operating or maintenance requirements over its lifetime.
When comparing systems, look beyond the purchase price and consider the total operating requirements.
Source Capture vs General Workshop Ventilation
One of the most important distinctions when designing a welding fume control system is the difference between source capture and general ventilation.
General ventilation attempts to dilute and remove contaminated air from the wider workspace.
Source capture attempts to remove the contaminant before it disperses.
For welding, source capture is generally the more direct approach because the contaminant can be intercepted close to where it is generated.
This does not mean general ventilation has no role.
A well-designed workshop may require both:
Source capture + appropriate general ventilation
The exact combination depends on the welding processes, building layout, production conditions, and extraction design.
Should You Choose a Portable or Centralized Welding Fume Extractor?
There is no single configuration that suits every workshop.
| Requirement | Portable System | Centralized System |
|---|---|---|
| Small number of welding stations | Suitable | May be unnecessary |
| Frequently changing work locations | Useful | Less flexible |
| Multiple permanent stations | Limited | Suitable |
| Large production facility | Application dependent | Often considered |
| Permanent ducting | Usually minimal | Required |
| Multiple extraction points | Limited by design | Suitable |
| Expansion of welding stations | Depends on unit | Can be engineered for expansion |
The decision should be based on the production environment rather than simply the number of machines.
For example, a fabrication shop with several welding stations but highly mobile workpieces may require a different solution from an electronics or manufacturing facility with fixed production stations.
When Does a Workshop Need an Industrial Fume Extractor?
An industrial fume extractor becomes particularly relevant when welding is a regular part of production rather than an occasional maintenance activity.
Factors that may indicate the need for an engineered extraction solution include:
- Multiple welding stations
- Continuous or high-volume welding
- Large fabrication areas
- Multiple operators welding simultaneously
- Limited natural ventilation
- Welding of coated or treated metals
- Production processes where welding fumes are consistently generated
- Requirements for controlled workplace air quality
For larger facilities, the solution may involve multiple source-capture points connected to a centralized filtration system.
Common Mistakes When Choosing a Welding Fume Extractor
Choosing Based Only on Airflow
A higher airflow number does not automatically mean better fume capture.
The hood position, capture distance, system pressure, duct design, and filtration system all matter.
Placing the Extraction Hood Too Far Away
Source capture becomes increasingly difficult as the distance between the hood and welding point increases.
The extraction hood should be positioned as close to the source as practical while allowing the operator to work safely and efficiently.
Ignoring the Welding Process
A system designed for occasional welding may not be suitable for continuous production welding.
The welding process and production volume should form part of the initial equipment specification.
Treating All Welding Fumes as the Same
Different materials, coatings, consumables, and welding processes can produce different contaminants.
Filtration should therefore be selected based on the application.
Forgetting Future Expansion
If the workshop is expected to add welding stations, increase production, or change its manufacturing process, the extraction system should be evaluated with those potential changes in mind.
Retrofitting ductwork and filtration capacity later can be more complicated than considering expansion during the initial design.
A Practical Checklist for Selecting a Welding Fume Extractor
Before contacting an equipment supplier, collect the following information:
Welding Process
- MIG/MAG
- TIG
- Stick
- Flux-cored
- Robotic
- Other processes
Materials
- Mild steel
- Stainless steel
- Aluminium
- Galvanized/coated materials
- Other alloys
Production
- Number of welding stations
- Number of simultaneous operators
- Hours of welding per shift
- Number of shifts
- Continuous or intermittent welding
Workplace
- Workshop dimensions
- Ceiling height
- Workstation arrangement
- Operator movement
- Workpiece dimensions
- Existing ventilation
Extraction
- Fixed or mobile extraction
- Extraction arm requirements
- Number of extraction points
- Proposed duct arrangement
- Required airflow
- Static pressure requirements
Filtration
- Type of welding fume
- Required filtration technology
- Filter/collector maintenance
- Potential requirement for additional filtration stages
Providing this information allows an extraction-system supplier to recommend equipment based on the actual application rather than relying on a generic machine specification.
Powertech Welding Fume Extraction Solutions
Powertech Pollution Controls provides industrial air pollution control solutions for applications including welding and soldering fume extraction.
Its FumeKiller range uses electrostatic filtration and is available in configurations designed for different industrial applications. For workshops with multiple welding stations, the extraction system can be designed around the number of extraction points, operating conditions, and workshop layout.
Powertech also provides fume extraction arms for source capture, allowing fumes to be captured close to the point of generation.
For example, Powertech has documented a welding application involving eight welding stations and a FumeKiller FK3600VEM, demonstrating how a multi-station welding environment can be approached through an engineered extraction system rather than treating every workstation as an isolated application.
The appropriate equipment, however, depends on the specific welding process, material, workstation configuration, and operating conditions.
Final Thoughts
Choosing a welding fume extractor is fundamentally an application-engineering decision.
The right system depends on more than the size of the workshop or the advertised airflow of an extraction unit. You need to consider the welding process, materials, production volume, operator movement, number of stations, capture method, airflow, static pressure, filtration technology, and maintenance requirements.
For many workshops, the starting point should be source capture: identify where the welding fume is generated and determine how it can be captured as close to that point as practical.
From there, the extraction and filtration system can be designed around the actual operating conditions.
A properly specified welding fume extraction system can provide a more controlled approach to managing welding fumes while fitting into the way the workshop actually operates.
If you are planning a new welding fume extraction system or upgrading an existing one, the best starting point is to evaluate your welding processes, number of stations, workpiece sizes, and workshop layout before selecting the equipment.
Looking for a welding fume extraction solution for your workshop? Contact Powertech Pollution Controls to discuss your application and determine the appropriate extraction and filtration configuration.
