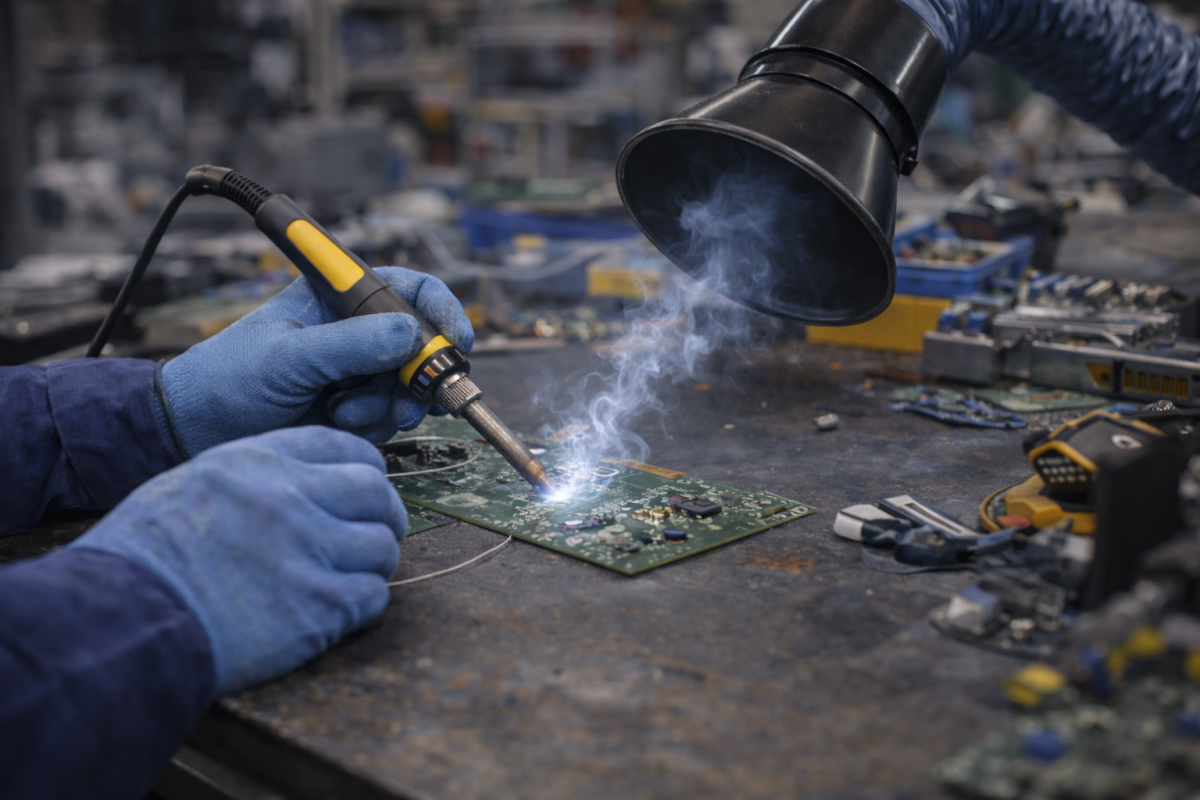

Technician soldering PCB with a soldering fume extractor capturing smoke at the workstation
Categories Air Pollution Control, Fumekiller, Powertech pollution control, Soldering fume extractor, Uncategorized, Welding fume extractor Author poweradmin

Managing Fumes from Lead-Free Soldering Processes

Lead-free soldering is now the norm in making electronics. It gets rid of lead from the process, but not the fumes.

In many cases, soldering without lead makes more smoke than soldering with lead. Higher melting points and active flux compounds make more fumes come out.

Facilities must manage fumes at the source to limit exposure and keep the quality of the product.

Why soldering without lead makes more fumes

Lead-free alloys melt at higher temperatures than solder that contains lead. This hotter heat:

  • Increases the activation of flux
  • Makes more thermal breakdown happen
  • Makes fumes with tiny particles

The flux, not the metal itself, makes most of the fumes. When flux burns, it sends harmful particles into the air that go straight into the operator’s breathing zone.

Risks of Bad Fume Control

Operator Exposure

Fumes rise toward the face if they aren’t properly extracted. This can lead to:

  • Irritation of the eyes
  • Pain in the throat
  • Headaches
  • Less comfortable for the operator

Less visibility

It is harder to check if there is smoke around the solder joint:

  • Wetting the pad
  • Flow of solder
  • Bridging problems

Clear visibility helps with accurate hand soldering and rework.

Contamination of Residue and Surface

When fumes spread across the workstation, residue settles on:

  • Surfaces of PCBs
  • Lenses for optical inspection
  • Tools and fixtures

This has an impact on the quality of the product and how often it needs to be cleaned.



Source Capture Is the Best Method of Control

A soldering fume extractor that is in the right place catches fumes as soon as they come out of the solder joint.

Capture at the Tip

The extraction nozzle should be close to the soldering point but not get in the way of hand movement.

This keeps fumes from getting into the breathing zone.

Airflow that is controlled

Airflow needs to be strong enough to catch fumes, but not so strong that it cools the solder joint or changes the flow of solder.

Balanced airflow makes sure that:

  • Temperature of soldering stays the same
  • A clear line of sight
  • Consistent joint formation

A lot of electronics companies require soldering fume extractor manufacturers to size their systems based on how many workstations there are and how much soldering they do.



Things to think about when laying out a workstation

There is more to fume control than just equipment.

Where to Put the Bench

Set up extraction units so that air flows away from the operator.

Don’t Let Cross Drafts Happen

Air conditioning or fans blowing across the bench can move fumes to the side and make it less effective at capturing them.

Planning for Multiple Stations

Central extraction systems may be better for balancing airflow in assembly lines with a lot of soldering stations than having a lot of separate units.

A correct layout makes things safer and more consistent.

Things to Keep an Eye on for Performance

To make sure that the fume control system works well:

  • Make sure the air is flowing well often.
  • Change the filters on time
  • Check the connections between the ducts
  • Watch the suction at the nozzle

Bad maintenance lowers the efficiency of capture and lets fumes spread again.

A Real-Life Example

In a PCB assembly unit that did manual soldering and rework, workers said there was a lot of smoke after they switched to lead-free solder.

After putting source capture extraction at each station:

  • The air was clearer.
  • Fewer complaints from operators
  • The accuracy of inspections went up.
  • Less frequent cleaning

The improvement came from putting the nozzles in the right places and balancing the airflow.

Q & A

Q1. Is the smoke from lead-free solder less dangerous than the smoke from leaded solder?

  1. They get rid of lead exposure, but they still need to control flux fumes.

Q2. What are the main sources of soldering fumes?

  1. Mostly from the flux that is used to solder.

Q3. Can extraction make the solder joint cooler?

  1. Yes, if the airflow is too strong. This won’t happen if the system is the right size.

Q4. Is portable extraction good enough for small labs?

  1. Yes, for work that doesn’t require a lot of volume. Larger assembly lines might need systems that are all in one place.



Conclusion:

Lead-free soldering makes materials safer, but it doesn’t get rid of fumes. Higher temperatures in the process often make more smoke.

Controlling fumes at the source keeps workers safe, makes it easier to see, and helps with the accuracy of solder joints.

A well-chosen soldering fume extractor, along with a well-organized and well-maintained workstation, keeps the air clean and production running smoothly.

Welder using a source capture welding fume extractor to remove smoke at the welding arc in an industrial workshop
Categories Air Pollution Control, Fumekiller, Powertech pollution control, Soldering fume extractor, Welding fume extractor Author poweradmin

How Welding Fume Extractors Improve Visibility and Process Accuracy

In many welding shops, operators adjust to smoke around the arc. Over time, this becomes normal. But reduced visibility affects weld control more than most teams realise.

When fumes stay around the welding point, the welder cannot clearly see the weld pool. Small visibility issues lead to small control errors. Those small errors increase defects, grinding time, and inspection failures.

A properly installed welding fume extractor removes fumes at the source. The result is simple: clear sight of the weld pool and better process control.

Why Visibility Directly Affects Weld Quality

Welding depends on visual control. The operator constantly monitors:

  • Weld pool shape
  • Joint edges
  • Arc position
  • Travel speed

If smoke builds up around the arc, the weld pool becomes hard to track. The operator may:

  • Change angle slightly
  • Move too fast or too slow
  • Add excess filler
  • Miss joint alignment

These changes happen within seconds. They affect penetration, bead width, and finish quality.

Clear visibility supports steady hand movement and consistent weld formation.

How Welding Fumes Interfere With Accuracy

Obstructed View of the Molten Pool

Fumes rise fast. In enclosed areas, they collect around the face level of the welder. Even with a helmet, heavy smoke reduces clarity.

When the molten pool is not visible, depth control becomes guesswork.

Increased Defects

Poor visibility often results in:

  • Undercuts
  • Incomplete fusion
  • Irregular bead width
  • Excess spatter

These issues increase rework and inspection time.

Operator Fatigue

When welders strain to see through smoke, eye fatigue increases. Tired operators lose precision as the shift progresses.

How a Welding Fume Extractor Improves the Working Zone

A welding fume extractor captures fumes before they spread into the workspace. It pulls contaminants away from the arc area immediately.

Clear Line of Sight

When extraction arms sit close to the welding point, fumes do not rise into the operator’s viewing area. The weld pool remains clearly visible.

Clear sight improves:

  • Torch angle control
  • Travel speed stability
  • Joint tracking accuracy

Stable Arc Conditions

Airflow must stay balanced. Too little airflow allows smoke to spread. Too much airflow may disturb shielding gas.

Correct system sizing ensures clean air without affecting arc stability.

Many fabrication units work with a welding fume extractor manufacturer in Bangalore to calculate airflow based on welding type, current levels, and station layout.

Layout and Positioning Matter

Even a good system will not perform well if placement is poor.

Hood Distance

Keep the hood close enough to capture fumes but not block the operator’s movement.

Control Cross Drafts

Open doors and pedestal fans push fumes sideways. This reduces capture efficiency.

Station Design

Welding booths with controlled airflow improve visibility and capture consistency.

Good layout planning supports both safety and process accuracy.

Measurable Shop Floor Impact

Improved visibility often leads to:

  • Lower defect rates
  • Less grinding and cleaning
  • Faster weld completion
  • Reduced inspection delays

Clear air allows operators to focus on technique instead of adjusting for smoke.

Q&A

Q1. Does a welding fume extractor improve weld quality?

  1. It improves visibility and process control. Better control results in better weld quality.

Q2. Can extraction affect shielding gas?

  1. Only if airflow is excessive. Proper design prevents this issue.

Q3. How close should the extraction point be?

  1. Typically within 6 to 12 inches from the welding arc, depending on fume volume.

Q4. Is the visibility improvement noticeable?

  1. Yes. Operators usually see a difference as soon as source capture begins.

Conclusion

Welding fumes affect more than health. They reduce visibility and make precision difficult. Even small visual obstruction increases the risk of weld defects.

A properly designed welding fume extractor keeps the arc area clear. Clear visibility improves torch control, penetration consistency, and overall weld quality.

In fabrication, accuracy depends on what the operator can see. Clean air makes that possible.

Comparison of bench-level and centralized soldering fume extractors
Categories Air Pollution Control, Fumekiller, Powertech pollution control, Soldering fume extractor, Welding fume extractor Author poweradmin

Centralized vs Bench-Level Soldering Fume Extractors Explained

Fumes are made at every workstation when soldering. In small setups, only one or two stations may be able to work at a time. Dozens of workers work at the same time on big assembly lines.

The right soldering fume extractor system for you will depend on how big your business is, how your workspace is set up, and how much air flow you need. There are two main types of systems: centralized and bench-level.

What is a bench-level soldering fume extractor?

A bench-level system is set up at each workstation. It usually has a small unit with one or two suction arms that are close to the soldering point.

Best For:

  • Small groups of people working together
  • Benches for repairs and service
  • Layouts that can change
  • Low to moderate density of solder

Advantages:

  • Each station has its own control.
  • Simple to put together
  • Needs very little ducting
  • Lower cost to set up at first

Limitations

  • More equipment in big setups
  • Individual upkeep for each unit

What Is a Centralized Soldering Fume Extraction System?

A centralized system has one big extraction unit that is connected to several soldering stations by ducting. There is a suction point on each bench that connects to the central unit.

Best Suited For

  • High-density electronics assembly
  • Production lines with set layouts
  • Places where soldering is done all the time

Benefits

  • Maintenance at one point
  • Airflow that is the same at all stations
  • Less noise at each bench
  • A cleaner place to work in general

Limitations

  • More expensive to install
  • Needs careful planning of the ducts
  • Less flexible after installation

Before suggesting a centralized solution, an experienced soldering fume extractor manufacturer looks at the number of stations and the amount of fumes.

Key Things to Think About: Number of Workstations:

Bench-level systems work best with a small number of workstations. A centralized setup is usually justified by many stations.

Production Volume

More fume load comes from continuous soldering. Central systems are better at handling heavy and constant demand.

Planning for Maintenance

Central systems make maintenance easier. Separate service schedules are needed for bench systems.

Future Growth

Centralized systems make it easier to grow if growth is likely.

Practical Use Cases

Case 1: Small Service Workshop

Bench-level soldering fume extractors are flexible and easy to move.

Case 2: A Mid-Size Electronics Unit

A mix of bench-level and centralized systems might work for phased growth.

Case 3: Big Assembly Line

Centralized extraction makes sure that the airflow is stable and the air quality is the same at all stations.

Q&A: Centralized vs. Bench-Level Systems

Q1: Is it stronger to extract from a single source?

A: When sized correctly, it can handle more air flow.

Q2: Do bench-level systems give you more control?

A: Yes. At their own stations, operators can change the flow of air.

Q 3: Which system costs less?

A: For small setups, bench systems are cheaper. Central systems work better when they are bigger.

Q4: Who should help you choose a system?

A: A qualified soldering fume extractor manufacturer can look at the layout and suggest the best setup.

Conclusion

Bench-level and centralized soldering fume extractors are made for different purposes. Compact, stand-alone units are good for small setups. Centralized systems are needed for stable and consistent fume control on large assembly lines.

Choosing the right system makes sure that the air is clean, the operator is comfortable, and production runs smoothly.

Twin-arm and single-arm welding fume extractors positioned beside welding stations in an industrial workshop.
Categories Air Pollution Control, Fumekiller, Powertech pollution control, Soldering fume extractor, Welding fume extractor Author poweradmin

Single-Arm vs Twin-Arm Welding Fume Extractors: Practical Use Cases

Why the Arm Configuration is Important for Welding Fume Extraction

A welding fume extractor needs to catch fumes at the source. The number of extractor arms affects how many welding stations a unit can serve and how well it works.

The layout, workload, and fume level will help you decide between a single-arm and twin-arm system.

What Is a Single-Arm Welding Fume Extractor?

Basic Configuration

A single-arm system has one flexible suction arm that is linked to the extractor unit. It can only work on one welding station at a time.

Best Suited for:

  • Separate welding stations
  • Work on repairs and upkeep
  • Welding load that is low to moderate
  • Shops with layouts that can change

Benefits:

  • Easy to set up
  • Less money up front
  • Simple to move around
  • Airflow that is focused on one source

Limitations:

  • Can’t serve more than one active station
  • Not as useful in busy workshops

What Is a Twin-Arm Welding Fume Extractor?

A twin-arm system has two flexible suction arms that are connected to a single extractor unit.

Depending on the amount of fumes, it can work at two welding stations at the same time.

Best Suited For:

  • Welding stations next to each other
  • Moderate levels of production floors
  • Workshops with a steady flow of work

Benefits

  • One unit serves two stations
  • Saves space on the floor
  • Lessens the number of tools

Limitations

  • Airflow divides between the arms
  • It may not be able to handle heavy welding at both stations at once.

Before suggesting a twin-arm setup, an experienced welding fume extractor manufacturer checks how the air flows.

Important Things to Think About When Choosing

Simultaneous Welding Intensity:

If both welders are working all the time and making a lot of fumes, the twin-arm unit needs to be the right size.

Distance Between Stations

Twin arms work best when stations are close to each other. Long distances make it harder to move around.

Available Floor Space

Twin-arm systems take up less space than two separate units.

Future Growth

Think about whether production might go up. Planning ahead keeps you from having to replace the system.

Real-Life Examples

Case 1: Small Repair Shop

A single-arm welding fume extractor works well when only one welder is working at a time.

Case 2: Medium Fabrication Unit

Twin-arm extractors help two welders work at the same time with moderate duty cycles.

Case 3: High-Volume Production

A twin-arm setup may not be the best choice for high-volume production. Instead, separate units or a central extraction system may work better.

Q&A: Single vs. Twin-Arm Welding Fume Extractors

Q1: Does a system with two arms make the suction weaker?

A: Airflow splits between the arms. The right size makes sure that capture works.

Q2: Is it possible for one twin-arm unit to take the place of two single-arm units?

A: Yes, if the welding is not too strong and the stations are close together.

Q3: Is a system with only one arm more efficient?

A: It directs the airflow to one source, which is great for single stations.

Q4: Who can help you choose the best configuration?

A: A qualified manufacturer of welding fume extractors can look at the layout and calculate the airflow needs.

Conclusion

Single-arm and twin-arm welding fume extractors are made for different purposes. Single-arm systems are good for single stations. Twin-arm systems are good for welders who work next to each other and have moderate workloads.

Choosing the right setup makes sure that fume capture works well, air quality stays stable, and equipment is used efficiently.

Technician soldering a PCB while a fume extractor hood captures rising flux fumes at the workstation.
Categories Air Pollution Control, Fumekiller, Powertech pollution control, Soldering fume extractor Author poweradmin

How Poor Soldering Fume Control Affects PCB Quality

Why Fume Control Matters in PCB Assembly

Soldering is a precision process. Even small contamination affects joint quality and inspection accuracy. During soldering, flux fumes rise and spread across the workstation. If these fumes remain uncontrolled, they affect both workers and the PCB itself.

Poor fume control increases defects, inspection failures, and rework rates.

What Happens When Soldering Fumes Are Not Controlled

Residue Build-Up on PCB Surfaces

Flux fumes contain fine particles. These particles settle on boards, tools, and nearby components. This creates surface contamination.

Reduced Visibility During Soldering

Smoke around the solder joint reduces operator visibility. Poor visibility leads to uneven joints and missed defects.

Inconsistent Solder Joints

When fumes linger, operators adjust posture or reposition parts to avoid smoke. This affects hand stability and joint consistency.

Impact on PCB Quality

Cold Solder Joints

Limited visibility and unstable posture increase the risk of incomplete joints.

Bridging and Excess Solder

Impaired vision leads to excess solder or unintended connections between pads.

Inspection Delays

Surface haze from settled fumes affects visual inspection accuracy.

How Poor Fume Control Increases Rework Rates

Rework often results from avoidable defects. When soldering fumes are not captured at the source:

  • Defects increase
  • Inspection time rises
  • Cleaning effort increases
  • Production slows down

Repeated rework reduces overall efficiency and increases labor cost.

Role of a Soldering Fume Extractor

Source-Level Capture

A soldering fume extractor removes fumes directly at the soldering point. This prevents residue from settling on the PCB.

Improved Visibility

Clear air allows operators to see the joint clearly. This improves precision.

Cleaner Work Surface

Less airborne contamination means fewer cleaning cycles.

A reliable soldering fume extractor manufacturer in Bangalore designs systems suited for high-density PCB assembly lines.

Q&A: Soldering Fumes and PCB Quality

Q1: Can soldering fumes directly damage PCBs?
Fumes do not damage boards instantly, but residue increases contamination and rework risk.

Q2: Does room ventilation solve the issue?
No. Ventilation dilutes fumes. Extraction removes them at the source.

Q3: Can better fume control reduce inspection time?
Yes. Clear visibility improves inspection speed and accuracy.

Q4: Is fume extraction necessary for small assembly units?
Yes. Even low-volume soldering generates fumes that affect quality over time.

Conclusion

Poor soldering fume control affects more than worker comfort. It reduces PCB quality, increases defects, and raises rework rates. Flux fumes settle on boards, reduce visibility, and slow inspection.

Using a soldering fume extractor ensures clean air at the workstation. This improves joint quality, reduces rework, and supports consistent production performance.

1 2 3 4 … 11
