Activated Carbon Filtration in Soldering Fume Extractors

Introduction

Soldering operations in electronics manufacturing generate more than just visible smoke. When flux compounds are heated during soldering, they release volatile organic compounds (VOCs), resin vapors, odors, and fine airborne contaminants that can accumulate rapidly in enclosed workspaces. While particulate filters capture smoke particles, gaseous contaminants require a different filtration approach.

An activated carbon soldering fume extractor is specifically designed to remove gases, odors, and VOCs generated during soldering operations. Activated carbon filtration plays a critical role in modern soldering smoke filtration systems because it adsorbs contaminants that traditional particulate filters cannot capture effectively.

In electronics manufacturing environments where operators work in close proximity to soldering stations for extended durations, properly engineered electronics fume filters with activated carbon stages significantly improve indoor air quality and operator comfort.

With over 30 years of experience in industrial air pollution control, Powertech has implemented customized carbon filter soldering fumes solutions for electronics assembly lines, PCB manufacturing facilities, and precision soldering environments.

Key Takeaways

1. Activated carbon filtration removes VOCs, odors, and flux vapors from soldering fumes.
2. HEPA filters alone cannot effectively remove gaseous contaminants.
3. Multi-stage filtration systems provide the best soldering smoke filtration performance.
4. Proper airflow and filter maintenance are critical for filtration efficiency.

The Problem: Gaseous Contaminants in Soldering Fumes

Many soldering ventilation systems focus only on particulate filtration while ignoring gases and odors.

Causes

1. Vaporization of flux compounds during soldering
2. Release of VOCs and resin vapors
3. Inadequate gas-phase filtration
4. Overloaded or saturated carbon filters

Workplace Impact

1. Persistent odors in electronics workspaces
2. Reduced operator comfort
3. Eye and throat irritation
4. Poor indoor air quality

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), soldering operations may release airborne contaminants that require effective ventilation and filtration.

The National Institute for Occupational Safety and Health (NIOSH) recommends local exhaust ventilation and proper filtration for soldering applications.

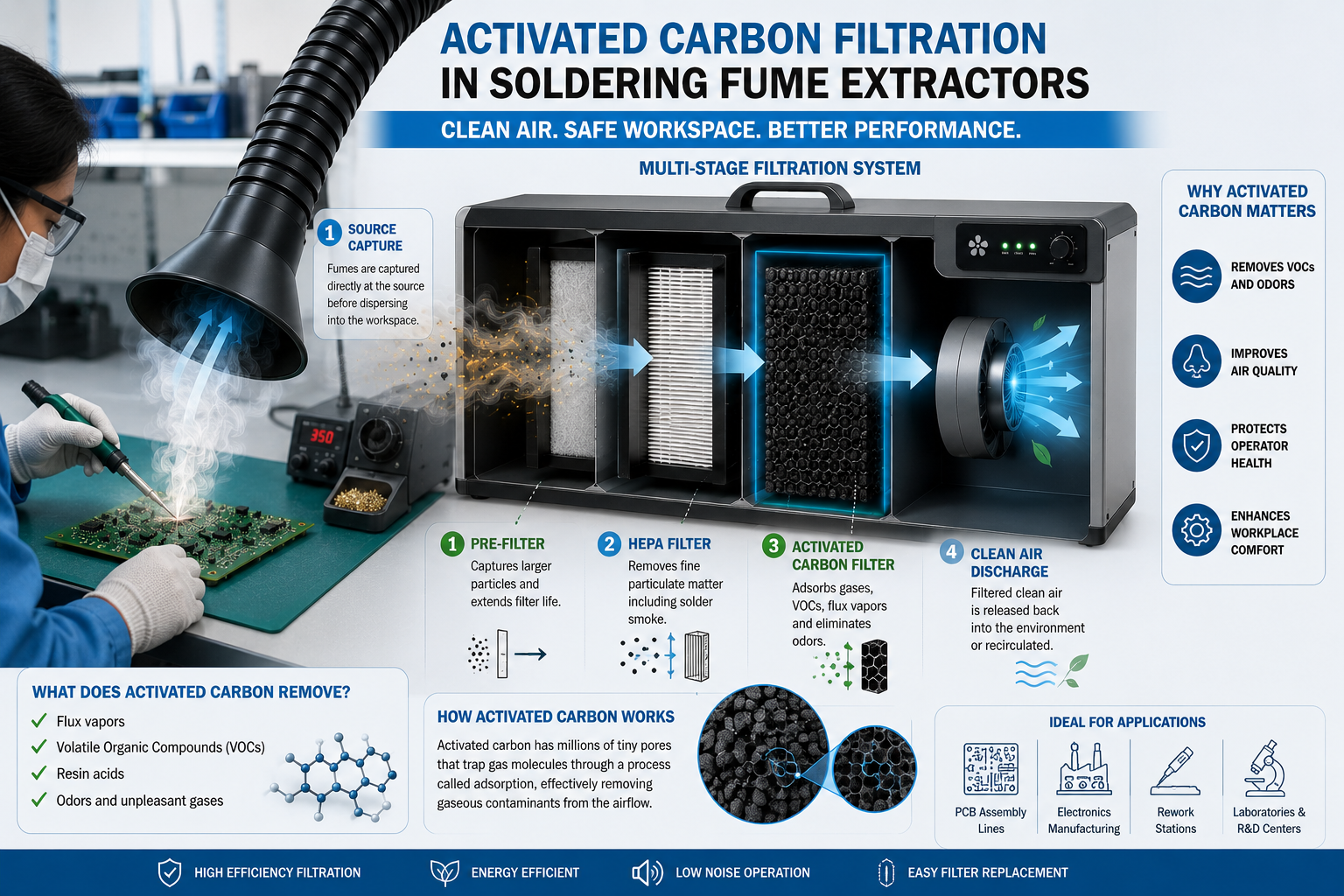

Technical Explanation: How Activated Carbon Filtration Works

Step 1: Source Capture

Fumes are captured directly at the soldering point using a hood or nozzle.

Typical Position

1. 50–150 mm from source
2. Aligned with rising fumes

Effective source capture improves overall filtration performance.

Step 2: Particulate Pre-Filtration

Before air reaches the carbon filter:

1. Larger particles are removed
2. Fine particulate is captured using HEPA filtration

This prevents premature carbon filter saturation.

Step 3: Activated Carbon Adsorption

The filtered air passes through activated carbon media.

How It Works

1. Activated carbon contains millions of microscopic pores
2. VOC molecules adhere to the carbon surface
3. Odors and gases are adsorbed from the airflow

Activated carbon is highly effective for gas-phase filtration.

Step 4: Clean Air Discharge

After filtration:

1. Cleaned air is discharged safely
2. Or recirculated into the workspace if filtration efficiency is sufficient

Filtration Stages in Soldering Fume Extractors

Filtration Stage	Function	Contaminants Removed
Pre-filter	Captures larger particles	Dust and coarse particulate
HEPA Filter	Removes fine particulate	Solder smoke particles
Activated Carbon Filter	Adsorbs gases and odors	VOCs and flux vapors
Multi-stage System	Combined protection	Mixed contaminants

Practical Industrial Applications

PCB Assembly Lines

1. Continuous soldering operations
2. High concentration of flux vapors
3. Multi-stage filtration systems required

Electronics Manufacturing

1. Indoor air quality is critical
2. Odor control is important in enclosed production areas

Rework Stations

1. Portable extractors with activated carbon filters commonly used

Laboratories and R&D

1. Small-scale soldering operations
2. Compact filtration systems preferred

Expert Insight

From Powertech’s experience, one of the most common mistakes in soldering smoke filtration is relying only on HEPA filtration without gas-phase filtration.

Key observations:

1. HEPA filters remove particulate but not odors or VOCs
2. Activated carbon performance depends heavily on airflow balance and contact time
3. Saturated carbon filters lose adsorption efficiency rapidly

In several electronics manufacturing facilities, upgrading to properly designed activated carbon filtration systems significantly improved operator comfort and indoor air quality.
