How Coolant Mist Forms in CNC Machines

Introduction

Coolant plays a critical role in CNC machining operations by reducing heat, improving tool life, enhancing surface finish, and maintaining machining accuracy. However, as machining speeds and coolant pressures increase, coolant can become atomized into microscopic airborne droplets that form what is commonly known as coolant mist.

Understanding how coolant mist CNC machines generate airborne contaminants is the first step toward implementing effective air pollution control solutions. Whether the mist originates from turning, milling, drilling, or grinding operations, uncontrolled airborne coolant can negatively affect workplace air quality, machine cleanliness, and operator comfort.

Modern manufacturing facilities increasingly rely on mist extraction CNC machining systems to control airborne contaminants and maintain cleaner working environments. Proper management of CNC coolant mist not only improves air quality but also reduces maintenance requirements and protects sensitive equipment.

With more than 30 years of experience in industrial air pollution control, Powertech’s MistKiller centrifugal mist collectors help manufacturers effectively control coolant mist generated during CNC machining operations.

Key Takeaways

  1. Coolant mist forms when machining operations atomize coolant into microscopic droplets.
  2. Higher spindle speeds and coolant pressures increase mist generation.
  3. Uncontrolled CNC coolant mist can affect air quality and equipment performance.
  4. Effective mist extraction captures contaminants before they enter the workplace.
  5. Understanding mist formation helps improve ventilation system design.

What Is Coolant Mist?

Coolant mist consists of tiny airborne droplets created when coolant interacts with rotating cutting tools, workpieces, and machine surfaces.

Unlike liquid coolant that remains within the machining process, mist becomes suspended in the air and can escape from machine enclosures if not properly controlled.

Typical Characteristics

  1. Microscopic liquid droplets
  2. Airborne aerosol formation
  3. Can remain suspended for extended periods
  4. May contain coolant additives and contaminants

How Coolant Mist Forms in CNC Machines

Step 1: Coolant Delivery

Coolant is delivered to the cutting zone to:

  1. Reduce heat
  2. Lubricate cutting surfaces
  3. Remove chips
  4. Improve machining efficiency

Modern CNC machines often use high-pressure coolant systems.

Step 2: High-Speed Tool Rotation

Machining tools operate at extremely high rotational speeds.

Examples

  1. Milling cutters
  2. End mills
  3. Grinding wheels
  4. Turning tools

As coolant contacts these rotating components, it begins to break into smaller droplets.

Step 3: Atomization

The interaction between coolant and high-speed rotating tools causes atomization.

This process creates:

  1. Fine droplets
  2. Aerosolized coolant
  3. Airborne mist particles

This is the primary source of oil mist generation machining environments.

Step 4: Air Turbulence

Inside the machine enclosure:

  1. Spindle movement
  2. Tool rotation
  3. Coolant spray
  4. Chip movement

create turbulent airflow.

This turbulence keeps droplets suspended in the air.

Step 5: Mist Escape

When machine doors open or ventilation is inadequate:

  1. Mist escapes into the workshop
  2. Airborne contaminants spread
  3. Residue accumulates on surrounding surfaces

This is where mist extraction CNC machining systems become critical.

Factors That Increase Coolant Mist Generation

High Spindle Speeds

Higher rotational speeds increase atomization.

High-Pressure Coolant Systems

Greater coolant velocity creates smaller airborne droplets.

Enclosed CNC Machines

Mist can accumulate rapidly within machine enclosures.

Continuous Production

Long machining cycles produce larger volumes of airborne mist.

Grinding Operations

Grinding processes typically generate some of the highest mist concentrations.

Effects of Coolant Mist in Manufacturing Facilities

Workplace Air Quality

Airborne coolant droplets can reduce indoor air quality.

Housekeeping Challenges

Coolant residue settles on:

  1. Floors
  2. Walls
  3. Machinery
  4. Workstations

Equipment Contamination

Mist can affect:

  1. Electrical cabinets
  2. Sensors
  3. Controls
  4. Machine components

Operator Comfort

Excessive airborne mist may contribute to:

  1. Unpleasant working conditions
  2. Reduced visibility
  3. Increased cleaning requirements

How Mist Extraction Systems Control Coolant Mist

Modern mist collectors remove airborne contaminants directly from CNC machine enclosures.

Process

  1. Capture contaminated air
  2. Separate coolant droplets
  3. Recover liquid coolant
  4. Discharge cleaned air

Benefits

  1. Cleaner air
  2. Reduced maintenance
  3. Improved equipment reliability
  4. Better workplace conditions

Why Centrifugal Mist Collection Is Effective

Powertech’s MistKiller uses centrifugal separation technology to remove coolant mist efficiently.

Advantages

  1. No disposable filters
  2. Low maintenance
  3. Continuous operation
  4. Coolant recovery capability
  5. High efficiency for water-based coolant mist

This makes centrifugal systems particularly suitable for CNC machining applications.

Expert Insight

Powertech’s experience across CNC machining facilities shows that coolant mist generation is often underestimated until visible residue appears throughout the workshop.

Facilities that implement source-capture mist collection directly at the machine enclosure typically achieve:

  1. Better indoor air quality
  2. Cleaner machinery
  3. Reduced maintenance costs
  4. Improved operator comfort
  5. Lower housekeeping requirements

Controlling mist at its source is significantly more effective than relying on general building ventilation alone.

What causes coolant mist in CNC machines?

Coolant mist forms when coolant contacts high-speed rotating tools and becomes atomized into airborne droplets.

Is coolant mist harmful to equipment?

Yes. Over time, coolant residue can contaminate sensors, electrical components, and machine controls.

Which machining operations generate the most mist?

Grinding, high-speed milling, and high-pressure coolant applications typically generate the highest levels of airborne mist.

How can coolant mist be controlled?

Mist collectors installed directly on CNC machine enclosures provide the most effective control.

What is the difference between coolant mist and coolant spray?

Coolant spray consists of larger droplets that fall quickly, while coolant mist contains microscopic droplets that remain suspended in the air.

Conclusion

Understanding how coolant mist CNC machines generate airborne contaminants helps manufacturers implement more effective air quality control strategies. Through atomization, turbulence, and high-speed machining processes, CNC coolant mist can quickly become a workplace challenge if left uncontrolled. By using properly engineered mist extraction CNC machining systems, manufacturers can significantly reduce airborne contamination, improve air quality, and protect both equipment and personnel. Powertech’s MistKiller centrifugal mist collectors provide an efficient, low-maintenance solution for controlling oil mist generation machining environments while supporting cleaner and more productive manufacturing operations.

Categories Uncategorized Author Zthbot

Electrostatic Mist Collectors vs Mechanical Mist Collectors

Introduction

Mist collection systems play a critical role in controlling airborne contaminants generated during CNC machining, metal cutting, grinding, and industrial manufacturing processes. Whether the contaminant is oil mist, coolant mist, smoke, or ultra-fine aerosols, selecting the right collection technology directly impacts air quality, operating costs, maintenance requirements, and overall system performance.

Two of the most common technologies used for industrial mist control are the electrostatic mist collector and the mechanical mist collector. While both are designed to remove airborne contaminants, they operate using different principles and are suited to different applications.

Understanding the differences between these technologies helps manufacturers choose the most effective oil mist filtration system for their operations and improve overall industrial mist extraction performance.

With nearly 30 years of experience in industrial air pollution control, Powertech designs customized mist collection solutions for machining, manufacturing, and process industries requiring reliable airborne contaminant control.

Key Takeaways

  1. Electrostatic mist collectors use electrical charging and collection plates to capture contaminants.
  2. Mechanical mist collectors use centrifugal, filtration, or inertial separation methods.
  3. Electrostatic systems excel at ultra-fine mist and smoke removal.
  4. Mechanical systems typically require less electrical complexity and lower initial investment.
  5. The best choice depends on contaminant type, airflow requirements, and maintenance considerations.

What Is an Electrostatic Mist Collector?

An electrostatic mist collector removes airborne contaminants by electrically charging particles and collecting them on oppositely charged collection plates.

Process

  1. Contaminated air enters the collector.
  2. Particles receive an electrical charge.
  3. Charged particles are attracted to collection plates.
  4. Cleaned air exits the system.

Common Applications

  1. Oil smoke collection
  2. EDM machining
  3. Heat treatment operations
  4. Fine oil mist extraction
  5. Metalworking processes

What Is a Mechanical Mist Collector?

A mechanical mist collector uses physical separation methods rather than electrical charging.

Common Technologies

  1. Centrifugal separation
  2. Impingement separation
  3. Multi-stage filtration
  4. Inertial separation

Process

  1. Contaminated air enters the collector.
  2. Mist droplets are separated mechanically.
  3. Collected liquid drains into a collection chamber.
  4. Cleaned air is discharged.

Common Applications

  1. CNC machining centers
  2. Milling machines
  3. Turning centers
  4. Water-based coolant mist extraction
  5. General machining operations

Electrostatic vs Mechanical Mist Collection

FeatureElectrostatic Mist CollectorMechanical Mist Collector
Collection MethodElectrical chargingPhysical separation
Ultra-Fine Particle RemovalExcellentGood
Oil Smoke ControlExcellentModerate
Coolant Mist ControlGoodExcellent
Initial CostHigherLower
Electrical ComponentsMore complexSimpler
Coolant RecoveryLimitedExcellent
Maintenance RequirementsPlate cleaning requiredGenerally lower
Continuous Heavy-Duty MachiningGoodExcellent

Performance Comparison

Electrostatic Mist Collectors

Advantages

  1. High efficiency for ultra-fine particles
  2. Excellent oil smoke removal
  3. Suitable for difficult aerosol applications
  4. High collection efficiency

Limitations

  1. Higher capital cost
  2. Requires cleaning of collection plates
  3. More complex electrical systems

Mechanical Mist Collectors

Advantages

  1. Robust operation
  2. Lower maintenance complexity
  3. Excellent coolant recovery
  4. Suitable for continuous machining environments
  5. Lower operating costs

Limitations

  1. May be less effective for ultra-fine smoke
  2. Performance depends on contaminant characteristics

Best Applications for Electrostatic Mist Collectors

EDM Operations

Produces extremely fine aerosols.

Oil Smoke Applications

Ideal for thermal oil smoke generation.

Heat Treatment Facilities

Effective for smoke and vapor control.

High-Temperature Processes

Suitable where ultra-fine particles dominate.

Best Applications for Mechanical Mist Collectors

CNC Machining Centers

Ideal for coolant mist extraction.

Turning Operations

Continuous mist generation.

Milling Machines

Effective for water-based coolant mist.

Precision Engineering Facilities

Reliable and low-maintenance operation.

Powertech’s Recommendation

For most CNC machining operations using water-based coolants, centrifugal mechanical mist collection technology typically offers the best balance of:

  1. Extraction efficiency
  2. Coolant recovery
  3. Reliability
  4. Maintenance requirements
  5. Operating costs

This is why Powertech’s MistKiller™ system uses centrifugal separation technology specifically designed for machining-generated coolant mist.

For specialized oil smoke or ultra-fine aerosol applications, the FumeKiller® unit serves as an electrostatic collection technology that may offer advantages depending on the contaminant characteristics.

Expert Insight

Powertech’s field experience shows that many facilities choose mist collection technologies based solely on filtration efficiency without considering:

  1. Contaminant type
  2. Maintenance requirements
  3. Coolant recovery potential
  4. Long-term operating costs

The most successful installations are those that match the collection technology to the actual process conditions.

What is an electrostatic mist collector?

An electrostatic mist collector uses electrically charged collection plates to remove airborne mist and smoke particles.

What is a mechanical mist collector?

A mechanical mist collector uses physical separation methods such as centrifugal force or filtration to remove contaminants.

Which collector is better for CNC machining?

Mechanical mist collectors are generally preferred for water-based coolant mist generated during CNC machining operations.

Are electrostatic mist collectors better for oil smoke?

Yes. Electrostatic systems often provide superior performance for ultra-fine oil smoke applications.

Which system requires less maintenance?

Mechanical mist collectors typically have simpler maintenance requirements, although this depends on system design and operating conditions.

Conclusion

Choosing between an electrostatic mist collector and a mechanical mist collector depends largely on the type of airborne contaminant being generated. While electrostatic systems excel at removing ultra-fine smoke and aerosols, mechanical systems are often the preferred choice for coolant mist extraction and general machining applications. By selecting the appropriate oil mist filtration system and implementing effective industrial mist extraction, manufacturers can significantly improve workplace air quality, equipment cleanliness, and operational efficiency. Powertech continues to provide engineered mist collection solutions tailored to the specific requirements of modern machining and manufacturing environments.

Categories Uncategorized Author Zthbot

Mist Collectors for CNC Machining Operations

Introduction

CNC machining operations are essential in modern manufacturing, delivering high precision and productivity across industries such as automotive, aerospace, medical devices, and precision engineering. However, the use of water-based coolants and cutting fluids during machining generates fine airborne mist that can quickly spread throughout the workspace if left uncontrolled.

A properly designed mist collector CNC machine solution captures coolant mist directly at the source, preventing it from escaping into the surrounding environment. Effective oil mist collector systems improve air quality, protect machinery, reduce housekeeping requirements, and create a healthier workplace for machine operators.

Modern CNC machine ventilation systems are engineered to remove airborne coolant droplets before they settle on equipment or remain suspended in the air. By implementing efficient coolant mist extraction, manufacturers can improve operational efficiency while maintaining cleaner production environments.

With over 30 years of experience in industrial air pollution control, Powertech’s MistKiller centrifugal mist collectors provide reliable and energy-efficient solutions for extracting water-based coolant mist from CNC machining operations.

Key Takeaways

  1. CNC machining generates airborne coolant mist that should be captured at the source.
  2. A mist collector CNC machine improves air quality and machine cleanliness.
  3. Oil mist collectors reduce airborne contamination and slippery surfaces.
  4. Proper CNC machine ventilation enhances operator safety and equipment reliability.
  5. Effective coolant mist extraction lowers maintenance requirements and improves productivity.

The Problem: Airborne Coolant Mist in CNC Operations

During turning, milling, grinding, and machining processes, high-speed rotating tools atomize coolant into microscopic droplets.

Causes

  1. High spindle speeds
  2. Coolant spray systems
  3. Tool-workpiece interaction
  4. Enclosed machining centers opening during operation

Workplace Impact

  1. Reduced visibility around machines
  2. Oily residue on floors and equipment
  3. Increased housekeeping requirements
  4. Poor indoor air quality

Equipment Impact

  1. Electrical cabinet contamination
  2. Premature wear of machine components
  3. Build-up on sensors and controls
  4. Reduced equipment reliability

Technical Explanation: How Mist Collectors Work

Step 1: Mist Generation

During machining, coolant contacts rotating tools and workpieces.

This produces:

  1. Fine airborne droplets
  2. Larger coolant particles
  3. Aerosolized mist

Step 2: Source Capture

The mist collector draws contaminated air directly from the CNC enclosure.

Capturing mist before it escapes provides the highest efficiency.

Step 3: Centrifugal Separation

Powertech’s MistKiller uses centrifugal technology rather than disposable filters.

The rotating impeller:

  1. Separates coolant droplets
  2. Forces heavier particles outward
  3. Returns collected coolant to the machine

Centrifugal separation minimizes filter replacement costs.

Step 4: Clean Air Discharge

The cleaned air is discharged safely while recovered coolant can often be reused depending on system design.

Advantages of Centrifugal Mist Collectors

FeatureBenefit
No disposable filter mediaLower operating costs
Continuous operationMinimal maintenance
Coolant recoveryReduced fluid waste
Compact designEasy machine integration
Energy efficientLower power consumption

Applications

CNC Turning Centers

Continuous coolant spray during turning operations produces fine mist requiring localized extraction.

CNC Milling Machines

High spindle speeds generate airborne coolant that must be controlled.

Machining Centers

Multiple tool changes and coolant delivery systems increase mist generation.

Grinding Operations

Fine coolant aerosols require effective source capture and separation.

Precision Engineering

Maintaining clean indoor air improves product quality and operator comfort.

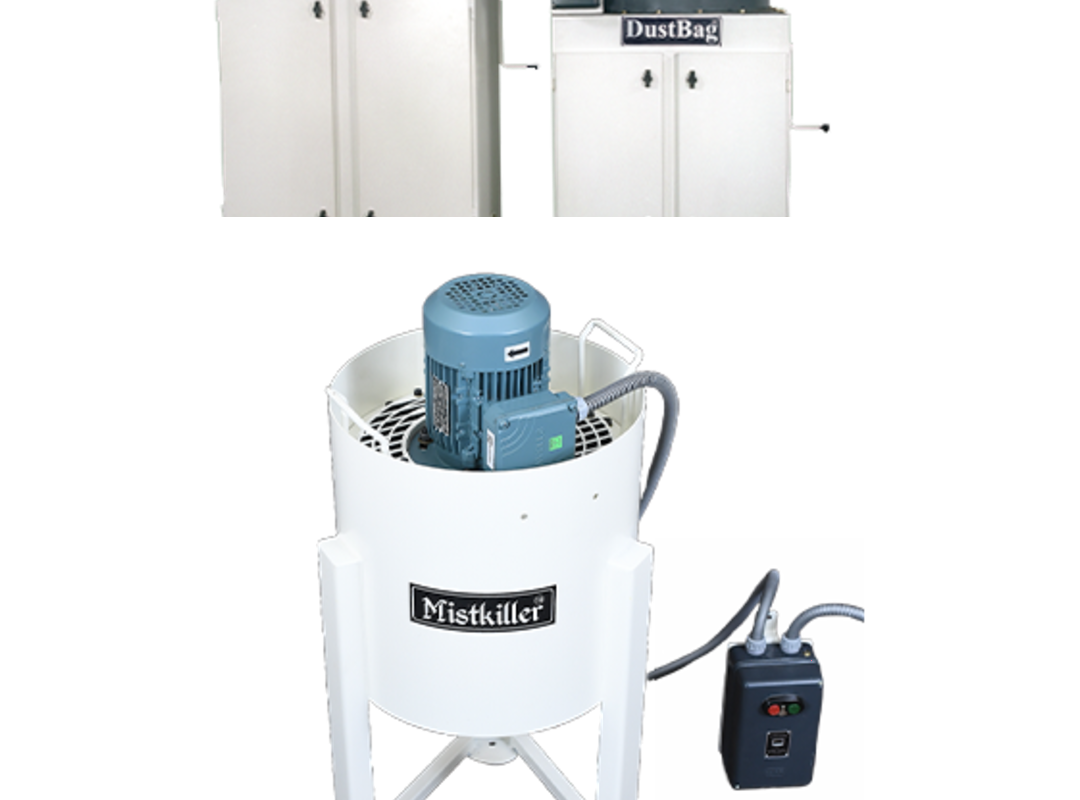

MistKiller: Powertech’s Centrifugal Mist Collector

Unlike conventional filter-based systems, MistKiller utilizes centrifugal separation technology specifically designed for water-based coolant mist generated in CNC machining operations.

Key Features

  1. High-efficiency centrifugal separation
  2. No disposable filters
  3. Low maintenance operation
  4. Compact machine-mounted design
  5. Continuous extraction during machining
  6. Coolant recovery capability

This makes MistKiller particularly suitable for industries seeking reliable and cost-effective coolant mist extraction.

Expert Insight

Powertech’s field experience has shown that many CNC facilities initially underestimate the impact of airborne coolant mist.

Properly installed centrifugal mist collectors consistently deliver:

  1. Cleaner machine enclosures
  2. Reduced maintenance downtime
  3. Improved operator comfort
  4. Lower housekeeping costs
  5. Better equipment longevity

Facilities that capture mist directly from the machine enclosure typically achieve significantly better results than relying solely on general ventilation.

What is a mist collector for a CNC machine?

A mist collector removes airborne coolant droplets and aerosols generated during machining operations before they enter the workspace.

How does a centrifugal mist collector work?

It uses centrifugal force to separate coolant droplets from the air without relying on disposable filters.

Is a MistKiller suitable for water-based coolant mist?

Yes. MistKiller is specifically designed for extracting water-based coolant mist generated by CNC machining processes.

Can collected coolant be reused?

In many applications, separated coolant can be returned to the machine depending on system configuration.

Do mist collectors reduce machine maintenance?

Yes. By preventing coolant build-up on equipment and surrounding surfaces, they reduce cleaning and maintenance requirements.

Conclusion

An effective mist collector CNC machine solution is essential for maintaining clean, safe, and productive machining environments. By implementing advanced oil mist collector technology, manufacturers can significantly improve CNC machine ventilation while reducing airborne coolant contamination. Powertech’s MistKiller centrifugal technology provides an efficient and low-maintenance approach to coolant mist extraction, offering superior performance for water-based coolant applications without the ongoing cost of disposable filters. For facilities looking to improve air quality, reduce maintenance, and enhance operational efficiency, engineered mist collection is an investment that delivers long-term value.

Categories Uncategorized Author Zthbot

Best Practices for Soldering Fume Extraction in Electronics Plants

Introduction

Electronics manufacturing facilities rely heavily on soldering processes for PCB assembly, component installation, rework, and repair operations. While these processes are essential for production, they generate flux vapors, solder smoke, fine particulate matter, and volatile organic compounds (VOCs) that can compromise indoor air quality if not properly controlled.

Implementing effective soldering fume extraction systems is one of the most important steps in creating a safer and more productive manufacturing environment. Proper electronics factory ventilation not only protects operators from airborne contaminants but also improves visibility, reduces odors, and supports regulatory compliance.

Modern solder smoke extraction solutions combine source capture, multi-stage filtration, and optimized airflow to deliver reliable industrial electronics ventilation across assembly lines and workstations.

With more than 30 years of expertise in industrial air pollution control, Powertech has designed and implemented engineered ventilation solutions for electronics manufacturers across diverse production environments.

Key Takeaways

  1. Source capture is the most effective method for controlling soldering fumes.
  2. Extraction nozzles should be positioned close to the soldering point.
  3. Multi-stage filtration provides superior particulate and VOC removal.
  4. Regular maintenance is essential for maintaining extraction performance.
  5. Proper workstation design enhances ventilation efficiency and operator comfort.

Why Best Practices Matter

Simply installing a fume extractor does not guarantee effective ventilation. Poor positioning, inadequate airflow, clogged filters, or improper workstation layouts can significantly reduce system performance.

Common Challenges

  1. Extraction arms positioned too far from the source
  2. Insufficient airflow at workstations
  3. Saturated activated carbon filters
  4. Blocked or poorly maintained filters
  5. Inconsistent ventilation across multiple stations

Impact on Production

  1. Poor indoor air quality
  2. Reduced operator comfort
  3. Increased odor levels
  4. Lower extraction efficiency
  5. Higher maintenance costs

Best Practice 1: Capture Fumes at the Source

The closer the extraction nozzle is to the soldering point, the more effective the system becomes.

Recommended Position

  1. 50–150 mm from the soldering joint
  2. Aligned with the natural upward movement of fumes
  3. Positioned without obstructing the operator

Source capture prevents contaminants from entering the breathing zone.

Best Practice 2: Use Multi-Stage Filtration

Effective solder smoke extraction requires removal of both particles and gases.

Recommended Filtration Configuration

  1. Pre-filter
  2. HEPA filter
  3. Activated carbon filter
Filter TypeRemoves
Pre-filterLarge particles
HEPAFine solder smoke
Activated CarbonFlux vapors, VOCs, odors

Best Practice 3: Optimize Electronics Workstation Layout

Ventilation performance depends on workstation design.

Recommendations

  1. Keep extraction arms unobstructed
  2. Position tools to avoid airflow disruption
  3. Allow operators to work comfortably without blocking the nozzle

Best Practice 4: Maintain Consistent Airflow

Stable airflow is essential for effective source capture.

Monitor

  1. Fan performance
  2. Air velocity
  3. Pressure drop
  4. Suction consistency

Avoid excessive airflow that may disturb delicate soldering work.

Best Practice 5: Replace Filters on Schedule

Overloaded filters reduce airflow and filtration efficiency.

Maintenance Checklist

  1. Inspect pre-filters regularly
  2. Monitor HEPA filter condition
  3. Replace activated carbon when odor breakthrough occurs
  4. Clean extraction arms and ducts

Best Practice 6: Select the Right Extraction System

Different applications require different solutions.

Suitable Options

  1. Portable extractors for rework stations
  2. Bench-top systems for individual operators
  3. Centralized extraction for production lines
  4. Flexible extraction arms for manual soldering

Best Practice 7: Train Operators

Even the best equipment performs poorly without proper use.

Operators should understand:

  1. Correct nozzle positioning
  2. Basic maintenance procedures
  3. Signs of reduced airflow
  4. Filter replacement schedules

Practical Applications

PCB Assembly Lines

  1. Dedicated extraction for each workstation
  2. Multi-stage filtration
  3. Continuous airflow monitoring

Electronics Manufacturing Plants

  1. Centralized ventilation systems
  2. Integrated workstation extraction
  3. Preventive maintenance programs

Repair & Rework Stations

  1. Portable extraction units
  2. Adjustable source capture arms

Research & Development Labs

  1. Compact, low-noise extraction systems
  2. High-efficiency filtration

Expert Insight

Powertech’s experience across electronics manufacturing facilities has shown that workstation positioning often has a greater impact on extraction efficiency than increasing fan capacity.

Facilities that implement proper nozzle placement, routine maintenance, and activated carbon filtration consistently achieve:

  1. Better indoor air quality
  2. Improved operator comfort
  3. Lower maintenance costs
  4. Higher extraction efficiency

In many cases, optimizing existing systems produces better results than installing larger equipment.

What is the best method for controlling soldering fumes?

Local source capture using dedicated soldering fume extraction systems is the most effective method.

How close should the extraction nozzle be?

Ideally between 50 and 150 mm from the soldering point.

Why is activated carbon important?

It removes VOCs, flux vapors, and odors that HEPA filters cannot capture.

Should every workstation have its own extractor?

For manual soldering operations, individual source capture generally provides the best performance.

How often should filters be replaced?

Replacement depends on usage, but regular inspection and monitoring are essential to maintain performance.

Conclusion

Implementing best practices for soldering fume extraction systems is essential for maintaining safe, efficient, and productive electronics manufacturing environments. By combining effective source capture, optimized electronics factory ventilation, multi-stage solder smoke extraction, and proper maintenance, manufacturers can significantly improve indoor air quality and operator safety. Well-designed industrial electronics ventilation systems not only protect employees but also enhance productivity and reduce long-term operating costs. With decades of experience in industrial air pollution control, Powertech continues to provide customized ventilation solutions that help electronics manufacturers achieve cleaner, safer, and more efficient production facilities.

Categories Uncategorized Author Zthbot

Designing Soldering Workstations With Proper Fume Extraction

Introduction

A well-designed soldering workstation is essential for maintaining operator safety, product quality, and workplace productivity in electronics manufacturing environments. While factors such as lighting, ergonomics, and tool placement often receive significant attention, ventilation is frequently overlooked despite being one of the most important elements of workstation design.

During soldering operations, flux compounds generate fumes containing fine particulate matter, volatile organic compounds (VOCs), and other airborne contaminants. Without effective soldering workstation fume extraction, these contaminants accumulate within the operator’s breathing zone, reducing air quality and operator comfort.

Proper electronics workstation ventilation integrates source capture, airflow management, filtration, and ergonomic workstation design to ensure contaminants are removed before they disperse into the surrounding environment. A well-engineered solder smoke extractor design also supports effective electronics air filtration, improving overall workplace conditions.

With over 30 years of experience in industrial air pollution control, Powertech has designed customized fume extraction solutions for electronics manufacturing facilities, PCB assembly lines, laboratories, and precision soldering applications.

Key Takeaways

  1. Source capture is the most effective method for controlling soldering fumes.
  2. Proper workstation design improves extraction efficiency and operator comfort.
  3. Flexible extraction arms and nozzles allow effective source capture.
  4. Multi-stage filtration is essential for particulate and VOC removal.
  5. Good workstation ventilation improves safety, visibility, and productivity.

The Problem: Poorly Ventilated Soldering Workstations

Many electronics workstations rely on general room ventilation instead of dedicated source capture systems.

Causes

  1. Poor extraction arm positioning
  2. Lack of localized ventilation
  3. Inadequate filtration systems
  4. Poor workstation layout

Workplace Impact

  1. Solder fumes accumulating near operators
  2. Eye, nose, and throat irritation
  3. Reduced operator comfort
  4. Unpleasant odors

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), local exhaust ventilation is preferred for controlling airborne contaminants generated during soldering operations.

The National Institute for Occupational Safety and Health (NIOSH) recommends source capture ventilation for electronics soldering applications.

Technical Explanation: Key Elements of Workstation Design

Step 1: Source Capture Positioning

The extraction nozzle should be positioned close to the soldering point.

Recommended Distance

  1. 50–150 mm from source
  2. Positioned to capture naturally rising fumes

Correct positioning is often more important than increasing airflow.

Step 2: Workstation Layout

Equipment should be arranged to avoid obstructing airflow.

Best Practices

  1. Keep extraction arm clear of tools and fixtures
  2. Maintain easy access to the work area
  3. Prevent operator body position from blocking airflow

Step 3: Airflow Design

The ventilation system should maintain stable airflow without disturbing delicate electronics work.

Design Considerations

  1. Consistent suction
  2. Low noise operation
  3. Minimal turbulence

Step 4: Filtration System Selection

Modern soldering workstations typically use multi-stage filtration.

Typical Filtration Stages

  1. Pre-filter
  2. HEPA filter
  3. Activated carbon filter

This combination provides effective particulate and gas-phase filtration.

Step 5: Ergonomic Integration

A ventilation system should improve safety without affecting productivity.

Key Factors

  1. Flexible extraction arm movement
  2. Easy maintenance access
  3. Comfortable operator positioning

Recommended Workstation Design Features

ComponentPurpose
Flexible Extraction ArmSource capture
Adjustable HoodPrecise positioning
HEPA FilterFine particulate removal
Activated Carbon FilterVOC and odor removal
Low Noise FanOperator comfort
Compact HousingSpace efficiency

Practical Industrial Applications

PCB Assembly Workstations

  1. Individual extraction arms
  2. Continuous soldering operations

Electronics Manufacturing

  1. Multiple operator stations
  2. Integrated ventilation systems

Rework and Repair Stations

  1. Portable extraction units
  2. Flexible workstation layouts

Laboratories and R&D

  1. Precision soldering applications
  2. Compact ventilation systems

Expert Insight

From Powertech’s experience, poor extraction arm placement is one of the most common reasons for ineffective workstation ventilation.

Key observations:

  1. Increasing airflow alone rarely solves ventilation issues.
  2. Proper nozzle placement dramatically improves source capture.
  3. Activated carbon filtration significantly improves operator comfort by controlling odors and VOCs.

In several electronics manufacturing facilities, workstation redesign and optimized extraction positioning improved ventilation performance without requiring larger extraction systems.

What is the ideal position for a soldering extraction nozzle?

Typically between 50–150 mm from the soldering point and aligned with rising fumes.

Why is source capture important?

It removes contaminants before they enter the operator’s breathing zone.

What filters should be used in soldering workstations?

Most systems use pre-filters, HEPA filters, and activated carbon filters.

Can portable fume extractors be used in workstation designs?

Yes, portable and bench-top systems are commonly used for electronics workstations.

Does workstation layout affect ventilation performance?

Yes, poor equipment placement can obstruct airflow and reduce extraction efficiency.

Conclusion

Effective soldering workstation fume extraction is a critical component of electronics manufacturing workstation design. By combining proper source capture, optimized electronics workstation ventilation, efficient solder smoke extractor design, and advanced electronics air filtration, manufacturers can significantly improve workplace safety and air quality. A well-designed workstation not only protects operators but also supports productivity, comfort, and long-term operational efficiency. With decades of experience in industrial air pollution control, Powertech continues to provide engineered ventilation solutions that help electronics manufacturers create cleaner, safer, and more productive work environments.

1 2 3 4 … 10
