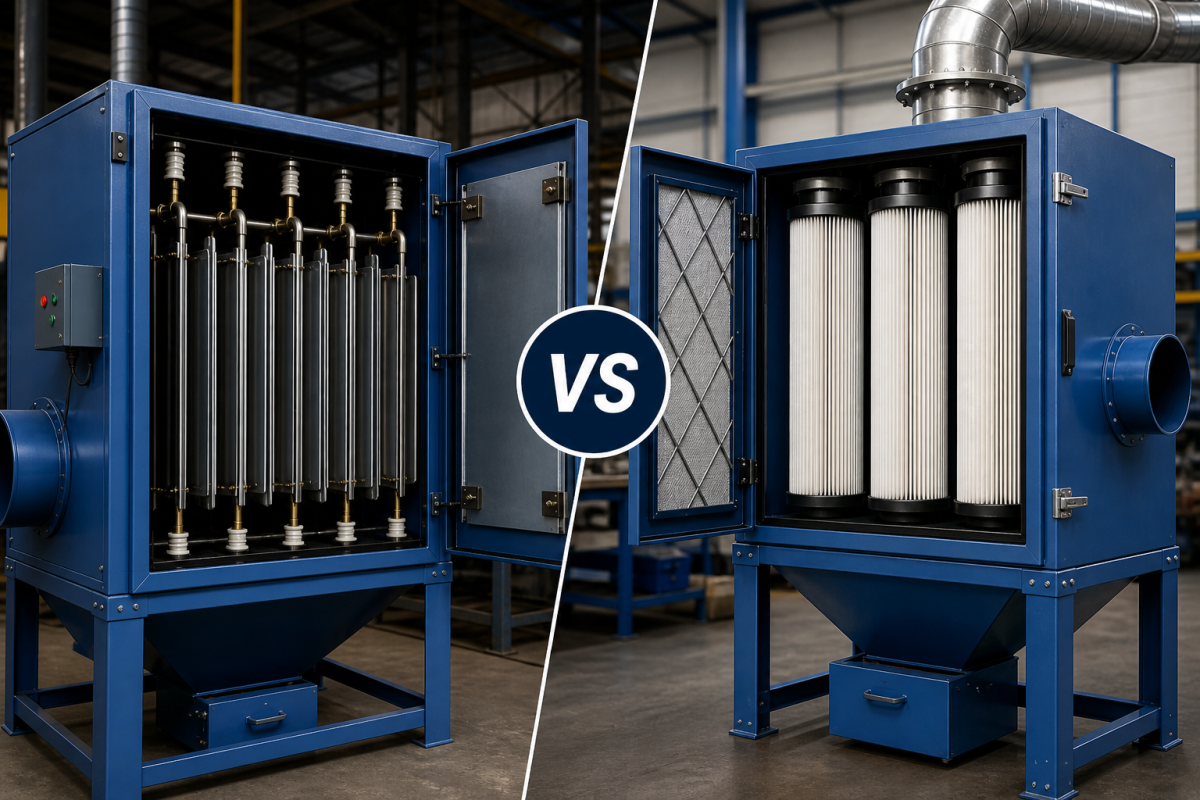

Electrostatic vs Cartridge Filtration in Fume Extraction

Introduction

Selecting the right filtration technology is one of the most critical decisions in designing an effective fume extraction system. Welding and metalworking processes generate fine particulate matter, often in submicron ranges, which require specialized filtration approaches. Among the most widely used technologies are electrostatic fume extractor systems and cartridge fume extractor systems.

Each technology operates on a fundamentally different principle and is suited to specific industrial conditions. Choosing incorrectly can result in poor air quality, excessive maintenance, or inefficient system performance.

A clear understanding of industrial fume filtration systems is essential to determine the most appropriate solution for a given application. With over 30 years of experience, Powertech has implemented both electrostatic and cartridge-based welding fume filtration technology across industries, tailoring solutions based on process requirements and operating conditions.

Key Takeaways

  1. Electrostatic fume extractor systems are ideal for fine and oily fumes.
  2. Cartridge fume extractor systems are widely used for dry particulate welding fumes.
  3. Application type determines the most effective filtration technology.
  4. Multi-stage systems often combine both technologies for optimal performance.

The Problem: Choosing the Right Filtration Technology

Industrial environments often use a single filtration type without considering process-specific requirements.

Causes

  1. Lack of understanding of particle characteristics
  2. Incorrect system selection for application
  3. Over-reliance on efficiency ratings
  4. Ignoring operating conditions such as oil content

Workplace Impact

  1. Reduced filtration efficiency
  2. Frequent maintenance issues
  3. Increased operational costs
  4. Poor air quality

Safety Risks

According to the Occupational Safety and Health Administration (OSHA), welding fumes may contain hazardous metals that require effective filtration.

The National Institute for Occupational Safety and Health (NIOSH) emphasizes the importance of selecting appropriate filtration systems to control airborne contaminants.

Technical Explanation: How Each Technology Works

1. Electrostatic Fume Extractor

Working Principle

  1. Air passes through an ionization section
  2. Particles are electrically charged
  3. Charged particles are attracted to collector plates
  4. Clean air is discharged

Key Characteristics

  1. Highly effective for submicron particles
  2. Low pressure drop
  3. Suitable for oily and sticky fumes
  4. Washable collector plates

2. Cartridge Fume Extractor

Working Principle

  1. Air passes through pleated filter cartridges
  2. Particles are captured on filter media
  3. Clean air exits the system
  4. Filters are cleaned using pulse-jet systems

Key Characteristics

  1. High filtration efficiency (up to 99%)
  2. Suitable for dry particulate
  3. Widely used in welding applications
  4. Requires periodic filter replacement

Comparison Table: Electrostatic vs Cartridge Filtration

ParameterElectrostatic Fume ExtractorCartridge Fume Extractor
Filtration methodElectrical chargingMechanical filtration
Particle sizeSubmicron & fineFine to medium particles
Pressure dropLowMedium
MaintenanceWashable platesFilter replacement
Best forOily fumes, smokeDry welding fumes
EfficiencyHighVery high

Practical Industrial Applications

Fabrication Shops

  1. Cartridge systems commonly used
  2. Effective for dry welding fumes
  3. Easy maintenance

Automotive Manufacturing

  1. Combination systems
  2. High-volume operations
  3. Centralized filtration

CNC Machining and Oil Mist Applications

  1. Electrostatic systems preferred
  2. Handles oily particles effectively

Heavy Engineering

  1. Cartridge systems for high dust loads
  2. Multi-stage systems for complex processes

Expert Insight

From Powertech’s experience, one of the most common mistakes is selecting a filtration system based purely on efficiency without considering the nature of the fumes.

Key observations:

  1. Electrostatic systems perform exceptionally well for oily and fine particles but are not ideal for heavy dust loads
  2. Cartridge systems are robust for welding fumes but may clog quickly in oily environments
  3. Hybrid systems often deliver the best results in mixed-process environments

In several industrial installations, combining both technologies has significantly improved filtration efficiency and reduced maintenance requirements.

What is an electrostatic fume extractor?

It is a system that uses electrical charges to capture fine and submicron particles from contaminated air.

When should a cartridge fume extractor be used?

For dry particulate welding fumes where high filtration efficiency is required.

Which system is better for welding fumes?

Cartridge systems are generally preferred, but electrostatic systems are better for oily fumes.

Can both systems be used together?

Yes, multi-stage systems can combine both technologies for improved performance.

What factors affect filtration system selection?

Particle size Oil content Airflow requirements Maintenance considerations

Conclusion

Both electrostatic fume extractor and cartridge fume extractor systems play critical roles in modern industrial fume filtration systems. The choice between them depends on the nature of the fumes, operating conditions, and system requirements. Understanding the strengths and limitations of each welding fume filtration technology allows industries to design more effective and efficient air pollution control systems. With decades of experience, Powertech continues to provide tailored filtration solutions that ensure optimal performance, improved air quality, and long-term reliability in industrial environments.

different types of welding fume extractor systems in industrial manufacturing
Categories Air Pollution Control, Uncategorized, Welding fume extractor Author Philip Thomas

Welding Fume Extractor Types Used in Manufacturing

Types of Welding Fume Extraction Systems Used in Manufacturing

Introduction

Welding operations across manufacturing industries generate airborne contaminants in the form of metal fumes, gases, and ultrafine particulate matter. These emissions, if not properly controlled, can accumulate within the workspace and expose workers to hazardous substances. In high-production environments such as fabrication shops, automotive plants, and heavy engineering facilities, managing welding fumes is not just a compliance requirement—it is a critical engineering necessity.

Different manufacturing setups require different approaches to fume control. A small fabrication shop with manual welding stations will have very different requirements compared to a large automotive plant with robotic welding lines. As a result, selecting the correct types of welding fume extractor becomes essential for effective air quality management.

Modern industrial fume extraction systems are designed to capture fumes at the source, filter contaminants efficiently, and maintain safe working conditions. This article provides a detailed breakdown of the various types of welding fume extraction systems used in manufacturing and their practical applications.



Key Takeaways

  • Different types of welding fume extractor are suited for specific manufacturing environments and welding processes.
  • Portable welding fume extractor units are ideal for flexible, multi-station fabrication setups.
  • Centralized welding fume extraction systems are used in large-scale industrial operations with multiple welding points.
  • Proper system selection depends on airflow requirements, workspace layout, and welding intensity.

The Problem: Variability in Welding Environments

Welding fumes behave differently depending on the process, material, and workspace conditions. A one-size-fits-all approach to fume extraction often results in ineffective control.

Causes of Inefficient Fume Control

  • Variation in welding processes (MIG, TIG, arc welding)
  • Multiple welding stations operating simultaneously
  • Differences in shop layout and enclosure levels
  • Inconsistent airflow distribution
  • Improper selection of extraction systems

Workplace Impact

  • Uneven air quality across different zones
  • Smoke accumulation in poorly ventilated areas
  • Increased maintenance due to dust deposition
  • Reduced operational efficiency

Safety Risks

Welding fumes can contain hazardous substances such as manganese, chromium, and nickel compounds.
According to Occupational Safety and Health Administration (OSHA), prolonged exposure to welding fumes can lead to respiratory issues and long-term health effects.

Similarly, the National Institute for Occupational Safety and Health (NIOSH) highlights that welding fumes may cause lung irritation, metal fume fever, and neurological effects depending on exposure levels.

These risks make it essential to select the appropriate types of welding fume extractor for each application.

Technical Overview: How Different Systems Work

All industrial fume extraction systems follow the same fundamental principle:

  1. Capture fumes at or near the source
  2. Convey contaminated air through ducting or internal channels
  3. Filter particulate matter using high-efficiency filters
  4. Discharge or recirculate clean air

However, the design and configuration vary depending on the type of system.

Types of Welding Fume Extractor Systems

1. Portable Welding Fume Extractor

A portable welding fume extractor is a compact, mobile unit equipped with a flexible extraction arm.

Key Features:

  • Mounted on wheels for easy movement
  • Integrated fan and filtration system
  • Flexible arm for localized extraction
  • Suitable for small to medium workshops

Typical Applications:

  • Fabrication shops
  • Maintenance welding
  • Job shops with variable layouts

Advantages:

  • High flexibility
  • Low installation cost
  • Easy to reposition

Limitations:

  • Limited airflow capacity
  • Not ideal for multiple simultaneous welding stations

2. Centralized Welding Fume Extraction System

A centralized welding fume extraction system connects multiple welding stations to a single high-capacity filtration unit through ducting.

Key Features:

  • Central filtration unit
  • Duct network connecting multiple stations
  • High airflow capacity
  • Suitable for continuous operations

Typical Applications:

  • Automotive manufacturing plants
  • Heavy engineering facilities
  • Large fabrication units

Advantages:

  • Handles multiple welding stations
  • Consistent air quality across facility
  • Lower maintenance per station

Limitations:

  • Higher initial investment
  • Requires proper duct design and balancing

3. Fixed Extraction Arm Systems

These systems use stationary welding extraction arms mounted at specific welding stations.

Key Features:

  • Mounted on walls or workbenches
  • Adjustable arm positioning
  • Connected to either portable or centralized systems

Applications:

  • Dedicated welding stations
  • Repetitive production processes

Advantages:

  • Consistent positioning
  • Better capture efficiency than general ventilation

4. Downdraft Tables

Downdraft tables pull fumes downward through perforated surfaces.

Key Features:

  • Integrated extraction surface
  • Suitable for welding and grinding
  • Built-in filtration system

Applications:

  • Small components
  • Grinding and finishing operations

Advantages:

  • Dual-purpose (welding + grinding)
  • Effective for small parts

5. On-Torch Extraction Systems

These systems integrate extraction directly into the welding torch.

Key Features:

  • Captures fumes extremely close to source
  • Minimal dispersion
  • Compact design

Applications:

  • High-precision welding
  • Automated or robotic welding

Advantages:

  • Highest capture efficiency
  • Minimal environmental contamination



Comparison of Welding Fume Extraction Systems

System Type

Mobility

Airflow Capacity

Suitable for Multiple Stations

Typical Use Case

Portable extractor

High

Low–Medium

No

Small fabrication shops

Centralized system

Low

High

Yes

Large industrial plants

Extraction arm

Medium

Medium

Limited

Fixed welding stations

Downdraft table

Low

Medium–High

No

Small part welding

On-torch system

High

Low

No

Precision welding



Practical Industrial Applications

Automotive Manufacturing

Automotive plants typically use centralized welding fume extraction systems to manage fumes from robotic welding lines. These systems ensure consistent air quality across production areas.

Fabrication Shops

Fabrication shops often rely on portable welding fume extractor units combined with extraction arms. This allows flexibility for different workpieces and layouts.

Electronics Manufacturing

In electronics production, compact extraction systems or on-torch extraction are used to handle fine fumes generated during precision welding.

CNC and Equipment Manufacturing

CNC shops integrate localized extraction systems to prevent contamination of precision machining processes.

Expert Insight

With over 30 years of experience in industrial air pollution control, Powertech has observed that incorrect system selection is one of the most common issues in fabrication environments.

In many cases, facilities invest in high-capacity centralized systems without proper duct design, resulting in uneven airflow distribution. Conversely, smaller workshops often rely on inadequate portable units for high-load applications.

A practical approach involves:

  • Matching system type to welding intensity
  • Ensuring proper airflow balancing
  • Designing for scalability

In several installations across fabrication and engineering industries, optimized system design has significantly improved capture efficiency without increasing energy consumption.

Frequently Asked Questions

What are the main types of welding fume extractor systems?

The main types include portable extractors, centralized systems, extraction arms, downdraft tables, and on-torch extraction systems.

Which system is best for small fabrication shops?

A portable welding fume extractor is typically the most suitable due to its flexibility and ease of use.

When should centralized welding fume extraction be used?

Centralized systems are ideal for facilities with multiple welding stations and continuous production processes.

Are downdraft tables effective for welding?

Yes, they are effective for small components and combined welding and grinding operations.

What is the most efficient method of fume capture?

On-torch extraction provides the highest efficiency as it captures fumes directly at the source.

Conclusion

Selecting the right types of welding fume extractor is essential for maintaining safe and efficient industrial environments. Each system type—whether portable, centralized, or integrated—offers specific advantages depending on the application.

Modern industrial fume extraction systems are designed to address the diverse needs of manufacturing facilities, ensuring effective fume capture and filtration. By understanding the strengths and limitations of each system, industries can implement solutions that enhance air quality, protect worker health, and improve overall operational efficiency.

With decades of experience in designing customized air pollution control systems, Powertech continues to emphasize the importance of application-specific engineering in achieving effective welding fume control.

welding fume extractor capturing fumes at source using extraction arm
Categories Air Pollution Control, Uncategorized, Welding fume extractor Author poweradmin

Welding Fume Extractor: How Source Capture Works in Welding

How Welding Fume Extractors Capture Fumes at the Source

Introduction

Welding operations are a critical part of industrial fabrication, but they generate hazardous fumes composed of fine metal particulates and gases. These fumes, if not effectively controlled, disperse into the work environment and expose workers to harmful contaminants. In fabrication shops where multiple welding stations operate simultaneously, this issue becomes significantly more pronounced.

Traditional ventilation methods often rely on general air dilution, which does not effectively remove contaminants from the welder’s breathing zone. As a result, airborne pollutants remain suspended and continue to pose risks to both workers and equipment.

A welding fume extractor addresses this challenge by capturing fumes directly at the point of generation. This method, known as source capture welding fumes, is far more effective than general ventilation. By using properly designed local exhaust ventilation welding systems and flexible welding extraction arm setups, industries can significantly improve air quality and maintain safer working conditions.

Key Takeaways

  • A welding fume extractor captures fumes directly at the source, preventing dispersion into the workspace.
  • Local exhaust ventilation welding is more effective than general ventilation for controlling welding fumes.
  • Proper positioning of the welding extraction arm is critical for effective fume capture.
  • Source capture systems improve worker safety, visibility, and compliance with industrial safety standards.

The Problem: Ineffective Fume Control in Welding Environments

Welding fumes are generated instantly when metals are heated, vaporized, and condensed into fine airborne particles. Without immediate capture, these particles spread rapidly across the workspace.

Causes of Poor Fume Control

  • Over-reliance on general ventilation systems
  • Incorrect placement of extraction arms
  • Insufficient airflow at the point of welding
  • Multiple welding operations in confined spaces
  • Lack of system maintenance and filter clogging

Workplace Impact

  • Smoke accumulation reducing visibility
  • Worker discomfort due to poor air quality
  • Deposition of metal particles on machinery
  • Reduced efficiency in fabrication processes

Safety Risks

  • Exposure to toxic metals such as manganese and chromium
  • Respiratory illnesses and long-term lung damage
  • Increased risk of occupational health violations
  • Reduced operator alertness in poor air conditions

These challenges highlight the importance of using a welding fume extractor designed specifically for source capture.

How a Welding Fume Extractor Captures Fumes at the Source

A welding fume extractor works by creating localized airflow that pulls contaminants away from the welding arc before they disperse.

Step 1: Positioning the Extraction Arm

The welding extraction arm is placed close to the welding arc, typically within 150–300 mm.

  • This proximity ensures immediate capture
  • Prevents fumes from entering the breathing zone
  • Improves capture efficiency significantly

Step 2: Creating Negative Pressure

The extractor unit generates suction using a high-efficiency fan.

  • Negative pressure draws fumes into the hood
  • Airflow direction is controlled toward the extractor
  • Capture velocity is maintained at required levels

Step 3: Capturing and Conveying Fumes

Once captured, fumes are drawn through the extraction arm into the system.

  • Smooth internal ducting reduces pressure losses
  • Consistent airflow ensures stable performance
  • Multiple arms can connect to a central unit

Step 4: Filtration of Contaminants

The contaminated air passes through filtration stages:

  • Pre-filters capture larger particles
  • Cartridge filters remove fine particulate matter
  • Optional HEPA filters capture ultra-fine particles

Step 5: Clean Air Discharge

After filtration:

  • Clean air is either recirculated into the workspace
  • Or safely exhausted outside the facility

This entire process ensures effective source capture welding fumes and maintains safe air quality levels.

Capture Efficiency and Airflow Guidelines

Proper airflow and capture velocity are critical for the performance of a welding fume extractor.

Parameter Recommended Range Remarks
Capture distance 150 – 300 mm Closer distance improves efficiency
Capture velocity 0.5 – 1.5 m/s Depends on welding intensity
Airflow per arm 800 – 1500 m³/hr Varies with hood size
Filter efficiency Up to 99% With multi-stage filtration
Static pressure 800 – 1500 Pa Depends on duct design

Engineering design must ensure that airflow remains consistent across all extraction points.

Practical Industrial Applications

Automotive Manufacturing

Automotive plants use robotic and manual welding extensively. Fixed extraction hoods and centralized systems ensure continuous fume capture in high-volume production environments.

Fabrication Shops

Fabrication shops rely heavily on flexible welding extraction arm systems.

  • Operators can reposition arms easily
  • Suitable for varying workpiece sizes
  • Ideal for multi-station workshops

Electronics Manufacturing

In electronics manufacturing, micro-welding and soldering produce fine fumes.

Compact welding fume extractor units provide localized extraction without affecting precision work.

CNC and Equipment Manufacturing

Welding operations in CNC shops require localized extraction to prevent contamination of precision machining areas.

Integrated systems ensure clean air without disrupting adjacent processes.

Expert Insight

One of the most common mistakes in industrial setups is placing the extraction arm too far from the welding arc. Even a small increase in distance can drastically reduce capture efficiency.

From a practical engineering standpoint:

  • Keep the extraction hood within 200 mm whenever possible
  • Avoid cross drafts that disrupt airflow
  • Regularly check airflow performance and filter condition

A well-positioned welding fume extractor can achieve significantly higher efficiency without increasing system capacity.

Frequently Asked Questions

Q. What is source capture in welding?

A. Source capture refers to capturing welding fumes directly at the point where they are generated, preventing them from spreading into the workspace.

Q. How does a welding extraction arm work?

A. A welding extraction arm positions the suction inlet close to the welding arc, allowing fumes to be drawn into the extractor system immediately.

Q. Why is local exhaust ventilation important in welding?

A. Local exhaust ventilation welding systems remove contaminants directly from the source, making them more effective than general ventilation methods.

Q. What affects the efficiency of a welding fume extractor?

A. Key factors include:

  • Distance from the welding arc
  • Airflow rate
  • Hood design
  • Filter condition

Q. Can one extractor serve multiple welding stations?

A. Yes, centralized systems can connect multiple extraction arms to a single unit, provided airflow is properly balanced.

Conclusion

Welding fumes pose a significant challenge in industrial environments, particularly in fabrication shops where continuous operations generate high volumes of airborne contaminants. General ventilation alone is not sufficient to control these fumes effectively.

A properly designed welding fume extractor provides an efficient solution by capturing contaminants at the source. Through effective local exhaust ventilation welding systems and correctly positioned welding extraction arm setups, industries can significantly improve air quality and worker safety.

Implementing source capture strategies not only enhances workplace conditions but also ensures compliance with industrial safety standards. As fabrication processes continue to evolve, investing in effective welding fume extraction solutions remains essential for maintaining a safe and efficient industrial environment.

welder using welding fume extraction system in industrial fabrication shop
Categories Air Pollution Control, Fumekiller, Uncategorized, Welding fume extractor Author poweradmin

Welding Fume Extraction System: Industrial Ventilation Guide

Introduction

Welding is one of the most common fabrication processes used across industries such as automotive manufacturing, heavy engineering, structural fabrication, and equipment manufacturing. While welding enables strong and reliable metal joints, it also produces significant airborne contaminants in the form of welding fumes. These fumes consist of fine metal particles, gases, and chemical compounds that can pose serious health risks to workers if not properly controlled.

In industrial fabrication shops where welding operations are performed continuously, airborne contaminants can quickly accumulate in the work environment. Poor air quality affects worker health, reduces visibility in the workspace, and can lead to regulatory compliance issues. Controlling welding fumes is therefore a critical aspect of industrial safety and workplace engineering.

A properly designed welding fume extraction system helps capture and remove fumes at the source before they disperse into the surrounding environment. By using specialized welding fume extractor units and appropriate industrial welding ventilation, fabrication shops can significantly improve air quality, enhance worker safety, and maintain regulatory compliance. This article explains how welding fume extraction equipment works and how it is applied in industrial fabrication environments.



Key Takeaways

  • A welding fume extraction system captures hazardous welding fumes at the source, preventing them from spreading into the work environment.
  • Effective industrial welding ventilation improves worker safety, visibility, and compliance with occupational health regulations.
  • Proper selection of welding fume extraction equipment depends on airflow requirements, welding process type, and workspace layout.
  • Localized extraction systems are generally more effective than general ventilation for controlling welding fumes.

The Problem: Welding Fume Exposure in Fabrication Shops

Welding fumes are generated when metals are heated to high temperatures and vaporize. These vapors quickly cool and condense into extremely fine airborne particles that remain suspended in the air.

Without proper extraction, these contaminants accumulate in the workplace.

Causes of Welding Fume Accumulation

  • Continuous welding operations in enclosed workshops
  • Inadequate general ventilation systems
  • Multiple welding stations operating simultaneously
  • Poor positioning of extraction equipment
  • High deposition rates from processes such as MIG and flux-cored arc welding

Workplace Impact

Poor welding fume control can negatively affect fabrication shop operations:

  • Reduced visibility due to smoke accumulation
  • Uncomfortable working conditions for welders
  • Contamination of nearby workstations and equipment
  • Increased maintenance requirements for machinery

Safety Risks

Exposure to welding fumes can lead to several health concerns, including:

  • Respiratory irritation and lung damage
  • Metal fume fever caused by inhalation of metal oxide particles
  • Long-term exposure risks associated with chromium, manganese, and nickel compounds
  • Potential neurological effects from prolonged exposure to certain metals

For these reasons, many industrial safety standards emphasize the need for effective welding fume extraction systems and engineered ventilation solutions.



How a Welding Fume Extraction System Works

A welding fume extraction system is designed to capture fumes at the point where they are generated and remove them from the worker’s breathing zone.

The system typically consists of several integrated components.

Step 1: Fume Capture

The first stage involves capturing fumes as close to the welding arc as possible.

This is commonly achieved using:

  • Flexible extraction arms
  • Extraction hoods
  • Downdraft tables
  • On-torch extraction systems

These devices position the airflow source directly near the welding area, preventing fumes from spreading.

Step 2: Air Conveyance

Once fumes are captured, they are transported through ducting or internal channels within the welding fume extractor.

A high-efficiency fan or blower generates airflow that pulls contaminated air through the system.

Step 3: Filtration

The captured air then passes through filtration stages designed to remove particulate matter.

Typical filtration methods include:

  • Cartridge filters for fine metal particles
  • HEPA filters or electrostaticfilters for very fine particulate capture
  • Spark arrestors for safety protection

These filters remove hazardous particles from the air stream.

Step 4: Clean Air Discharge

After filtration, the cleaned air can either:

  • Be returned to the workspace (recirculation systems)
  • Be discharged outside through exhaust ducting

Proper filtration ensures that discharged air meets environmental and workplace safety standards.


Typical Airflow Requirements for Welding Fume Extraction

Airflow is one of the most important parameters in designing a welding fume extraction system. Insufficient airflow will allow fumes to escape, while excessive airflow increases energy consumption.

Welding Application

Typical Capture Method

Recommended Airflow (m³/hr)

Typical Capture Velocity

Manual MIG welding

Extraction arm

800 – 1200

0.5 – 1.0 m/s

TIG welding

Local hood

600 – 900

0.4 – 0.8 m/s

Robotic welding cell

Enclosed hood

1500 – 2500

0.8 – 1.2 m/s

Grinding and welding stations

Downdraft table

2000 – 3500

1.0 – 1.5 m/s

Actual airflow requirements depend on:

  • Welding process type
  • Distance between the arc and extraction hood
  • Workshop layout
  • Number of active welding stations

Proper engineering calculations are required to size the welding fume extraction equipment correctly.



Practical Industrial Applications

Automotive Manufacturing

Automotive manufacturing facilities rely heavily on robotic welding systems for assembling vehicle bodies and components.

These facilities often use centralized welding fume extraction systems connected to multiple welding stations. Enclosures and high-capacity filtration units ensure that fumes generated during robotic welding are effectively captured.

Fabrication Shops

Structural fabrication shops typically operate multiple manual welding stations. In such environments, mobile welding fume extractor units with flexible arms are commonly used.

These systems allow welders to reposition the extraction arm depending on the workpiece location, ensuring effective fume capture.

Electronics Manufacturing

Electronics manufacturing processes often involve soldering and micro-welding operations. Although the fume volumes are smaller, the particles produced can still pose health risks.

Compact extraction units are used to capture fumes generated during soldering and precision welding processes.

CNC and Equipment Manufacturing

Many CNC machine shops include welding as part of the manufacturing process for frames, fixtures, and machine components.

Local extraction systems integrated into welding stations prevent fumes from spreading into areas where precision machining operations are conducted.

Expert Insight

In many fabrication shops, welding fumes are controlled using general ventilation or ceiling exhaust fans. However, these approaches often fail to capture fumes before they reach the worker’s breathing zone.

From an engineering perspective, source capture is the most effective strategy. Positioning extraction arms within 200–300 mm of the welding arc significantly improves capture efficiency. Proper maintenance of filters and periodic airflow verification are also essential to ensure long-term performance of the welding fume extraction system.


Frequently Asked Questions

What is a welding fume extraction system?

A welding fume extraction system is an engineered ventilation system designed to capture and filter fumes generated during welding processes before they disperse into the workplace environment.

Why is local extraction preferred over general ventilation?

Local extraction captures fumes directly at the source, preventing them from spreading into the surrounding workspace. General ventilation dilutes contaminants but does not remove them effectively.

How often should filters in welding fume extraction equipment be replaced?

Filter replacement intervals depend on welding intensity and system design. In most industrial environments, filters are inspected regularly and replaced when pressure drop exceeds recommended limits.

Can a welding fume extractor handle multiple welding stations?

Yes. Larger systems can be designed to serve multiple stations using ducting networks connected to a centralized filtration unit.

Are welding fumes hazardous even in small workshops?

Yes. Even small welding operations can produce harmful metal particles and gases. Proper industrial welding ventilation is important regardless of workshop size.

Conclusion

Welding fumes are an unavoidable by-product of metal fabrication processes, but their impact on workplace safety and air quality can be effectively controlled with proper engineering solutions. A well-designed welding fume extraction system captures fumes at the source, filters hazardous particles, and prevents contamination of the work environment.

By implementing appropriate welding fume extraction equipment and maintaining proper industrial welding ventilation, fabrication shops can significantly improve worker safety, operational efficiency, and regulatory compliance. As welding operations continue to expand across manufacturing industries, investing in reliable air pollution control systems remains a critical component of modern industrial facility design.

Welder using a welding fume extractor arm at a welding station in a multi-shift industrial workshop
Categories Uncategorized Author poweradmin

Welding Fume Extractors for Multi-Shift Manufacturing Operations

Many factories are open 24 hours a day. To meet production goals, welding often goes on for two or three shifts. In these places, welding fume extraction systems work for long hours every day.

When equipment runs all the time, it has to work harder, keep the airflow stable, and plan for maintenance. A well-made welding fume extractor should be able to handle heavy workloads without losing efficiency.

Why Multi-Shift Welding Needs More Extraction

When welding happens over more than one shift, the extraction system has to work harder because of a number of things.

  • The time it takes to weld goes up significantly.
  • Over the course of the day, more fumes build up.
  • Filters catch more particles than they let through.
  • The equipment works for longer periods of time.

If the system is not of the required capacity, the airflow slowly drops as the filters fill up with particles. This makes it harder to capture and lets fumes spread around the welding area.

Consistent Airflow is Critical

Stable Performance of Capture

Extraction systems need to keep the airflow steady for long periods of time in places with multiple shifts. Any drop in suction makes it harder to catch fumes at the source.

When the airflow slows down, fumes start to rise into the operator’s breathing zone before they are caught.

Not Losing Performance over Time

Loss of airflow usually happens over time. People who work with it might not notice the change right away. As time goes on, the smoke around the welding arc gets thicker.

Routine checks of the airflow help find these changes early. Powertech Pollution Controls is a welding fume extractor manufacturer in Bangalore that designs systems that can handle welding all the time.

Filter Capacity becomes more Important

Filters pick up particles faster in welding shops that work in shifts.

Faster Filter Loading

When a lot of welding is going on, there are a lot of small particles in the air. In a plant with multiple shifts, filters may load much faster than they do in a plant with only one shift.

Cycles for Planned Replacement

Instead of calendar dates, maintenance teams should set filter replacement schedules based on how many hours of production there are.

This helps keep the airflow from dropping while production is going on.

Durability of Equipment is Important

Extraction units in plants that work more than one shift must work reliably for long periods of time. Some important things to think about when designing are:

  • Fans that are very efficient and made to run all the time
  • Filter housings that last.
  • Electrical parts that stay stable.
  • Easy access to filters for upkeep.

Strong construction helps make sure the system keeps working even when it’s used for a long time.

Layout of Workstations for Continuous Production

The arrangement of welding stations also affects how well extraction works.

How to Position the Hood Correctly

To quickly catch fumes, extraction arms should stay close to the welding point.

People who work in shifts must be trained on how to properly place the hood.

Avoid Airflow Interference

Cross drafts can happen when doors are open or when big fans are on. These air currents might move the fumes away from the capture zone.

Planning the direction of airflow makes the system work better.

Planning Maintenance for Operations with Multiple Shifts

Because of continuous welding, maintenance needs to be planned carefully.

Things that people do often are:

  • Checking filters at the end of every shift.
  • Checking the levels of airflow on a regular basis.
  • Cleaning the hoods and extraction arms.
  • Keeping an eye on how well the fans work

Planned maintenance can prevent sudden airflow loss during production hours.

Q&A

Q1. What is the importance of welding fume extractors in operations with more than one shift?

A. Welding makes a lot of fumes because it takes a long time. These fumes must be constantly removed by extraction systems.

Q2. Do filters wear out more quickly in facilities that have more than one shift?

A.Yes. Longer hours of operation make filters collect particles faster.

Q3.How can you keep an eye on how well the airflow is working?

A. Checking the airflow regularly and looking at the fume capture system can help you find changes in performance.

Q4. Is it possible for the same system to work for both single-shift and multi-shift operations?

A. Yes, but systems for multi-shift environments need to be able to handle more work and run for longer periods of time.

Conclusion

Welding fume extraction systems have to work harder in factories that run multiple shifts. Welding all the time raises the amount of particles, the use of filters, and the number of hours equipment runs.

A well-designed welding fume extractor makes sure that the airflow stays steady and the machine works well for long periods of time.

Facilities can keep the air clean and the welding safe all day long if they size their systems correctly, do regular maintenance, and set up their workstations properly.

1 2 3 4 5 6 … 10
