Mist Collectors for CNC Machining Operations

Introduction

CNC machining operations are essential in modern manufacturing, delivering high precision and productivity across industries such as automotive, aerospace, medical devices, and precision engineering. However, the use of water-based coolants and cutting fluids during machining generates fine airborne mist that can quickly spread throughout the workspace if left uncontrolled.

A properly designed mist collector CNC machine solution captures coolant mist directly at the source, preventing it from escaping into the surrounding environment. Effective oil mist collector systems improve air quality, protect machinery, reduce housekeeping requirements, and create a healthier workplace for machine operators.

Modern CNC machine ventilation systems are engineered to remove airborne coolant droplets before they settle on equipment or remain suspended in the air. By implementing efficient coolant mist extraction, manufacturers can improve operational efficiency while maintaining cleaner production environments.

With over 30 years of experience in industrial air pollution control, Powertech’s MistKiller centrifugal mist collectors provide reliable and energy-efficient solutions for extracting water-based coolant mist from CNC machining operations.

Key Takeaways

1. CNC machining generates airborne coolant mist that should be captured at the source.
2. A mist collector CNC machine improves air quality and machine cleanliness.
3. Oil mist collectors reduce airborne contamination and slippery surfaces.
4. Proper CNC machine ventilation enhances operator safety and equipment reliability.
5. Effective coolant mist extraction lowers maintenance requirements and improves productivity.

The Problem: Airborne Coolant Mist in CNC Operations

During turning, milling, grinding, and machining processes, high-speed rotating tools atomize coolant into microscopic droplets.

Causes

1. High spindle speeds
2. Coolant spray systems
3. Tool-workpiece interaction
4. Enclosed machining centers opening during operation

Workplace Impact

1. Reduced visibility around machines
2. Oily residue on floors and equipment
3. Increased housekeeping requirements
4. Poor indoor air quality

Equipment Impact

1. Electrical cabinet contamination
2. Premature wear of machine components
3. Build-up on sensors and controls
4. Reduced equipment reliability

Technical Explanation: How Mist Collectors Work

Step 1: Mist Generation

During machining, coolant contacts rotating tools and workpieces.

This produces:

1. Fine airborne droplets
2. Larger coolant particles
3. Aerosolized mist

Step 2: Source Capture

The mist collector draws contaminated air directly from the CNC enclosure.

Capturing mist before it escapes provides the highest efficiency.

Step 3: Centrifugal Separation

Powertech’s MistKiller uses centrifugal technology rather than disposable filters.

The rotating impeller:

1. Separates coolant droplets
2. Forces heavier particles outward
3. Returns collected coolant to the machine

Centrifugal separation minimizes filter replacement costs.

Step 4: Clean Air Discharge

The cleaned air is discharged safely while recovered coolant can often be reused depending on system design.

Advantages of Centrifugal Mist Collectors

Feature	Benefit
No disposable filter media	Lower operating costs
Continuous operation	Minimal maintenance
Coolant recovery	Reduced fluid waste
Compact design	Easy machine integration
Energy efficient	Lower power consumption

Applications

CNC Turning Centers

Continuous coolant spray during turning operations produces fine mist requiring localized extraction.

CNC Milling Machines

High spindle speeds generate airborne coolant that must be controlled.

Machining Centers

Multiple tool changes and coolant delivery systems increase mist generation.

Grinding Operations

Fine coolant aerosols require effective source capture and separation.

Precision Engineering

Maintaining clean indoor air improves product quality and operator comfort.

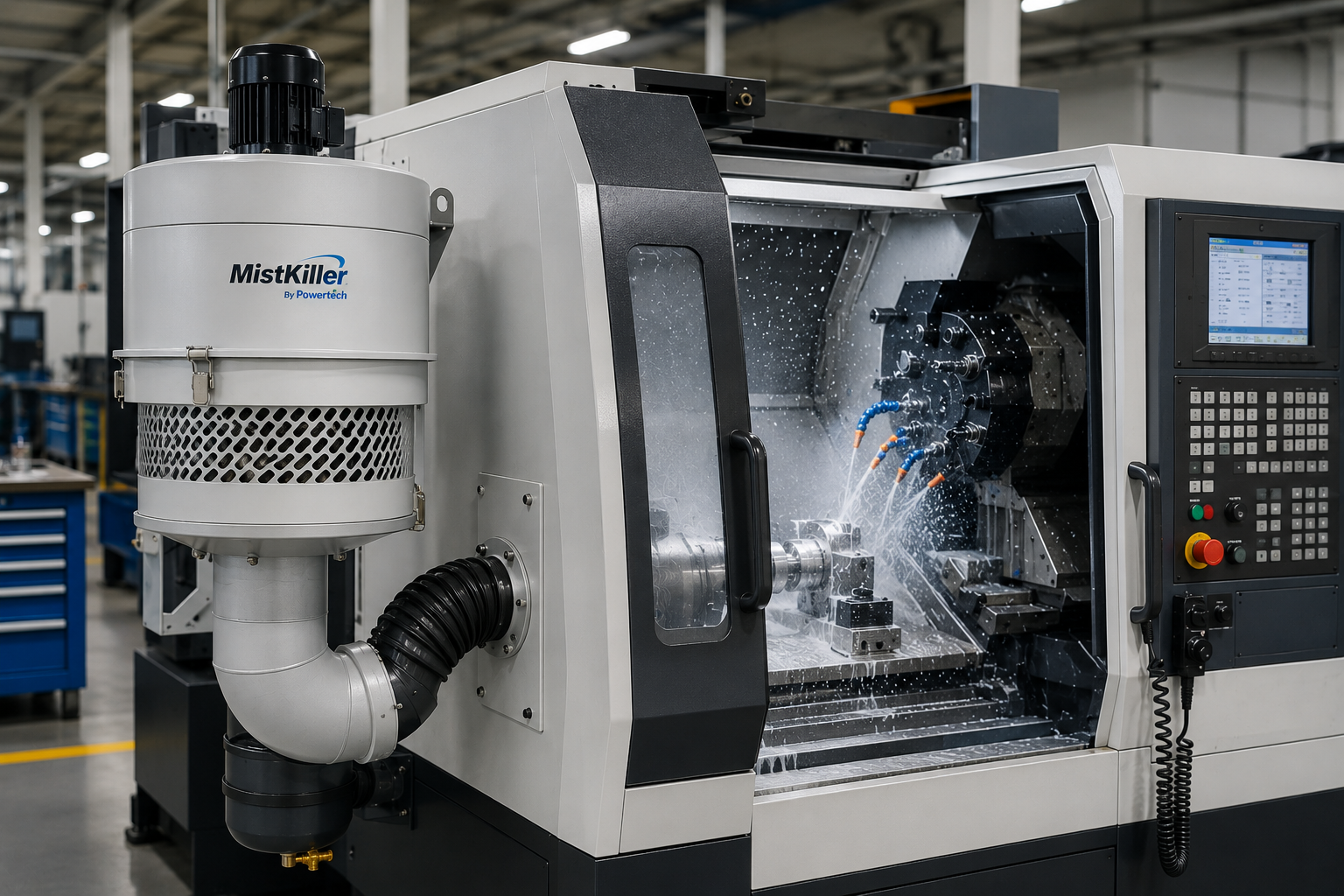

MistKiller: Powertech’s Centrifugal Mist Collector

Unlike conventional filter-based systems, MistKiller utilizes centrifugal separation technology specifically designed for water-based coolant mist generated in CNC machining operations.

Key Features

1. High-efficiency centrifugal separation
2. No disposable filters
3. Low maintenance operation
4. Compact machine-mounted design
5. Continuous extraction during machining
6. Coolant recovery capability

This makes MistKiller particularly suitable for industries seeking reliable and cost-effective coolant mist extraction.

Expert Insight

Powertech’s field experience has shown that many CNC facilities initially underestimate the impact of airborne coolant mist.

Properly installed centrifugal mist collectors consistently deliver:

1. Cleaner machine enclosures
2. Reduced maintenance downtime
3. Improved operator comfort
4. Lower housekeeping costs
5. Better equipment longevity

Facilities that capture mist directly from the machine enclosure typically achieve significantly better results than relying solely on general ventilation.
